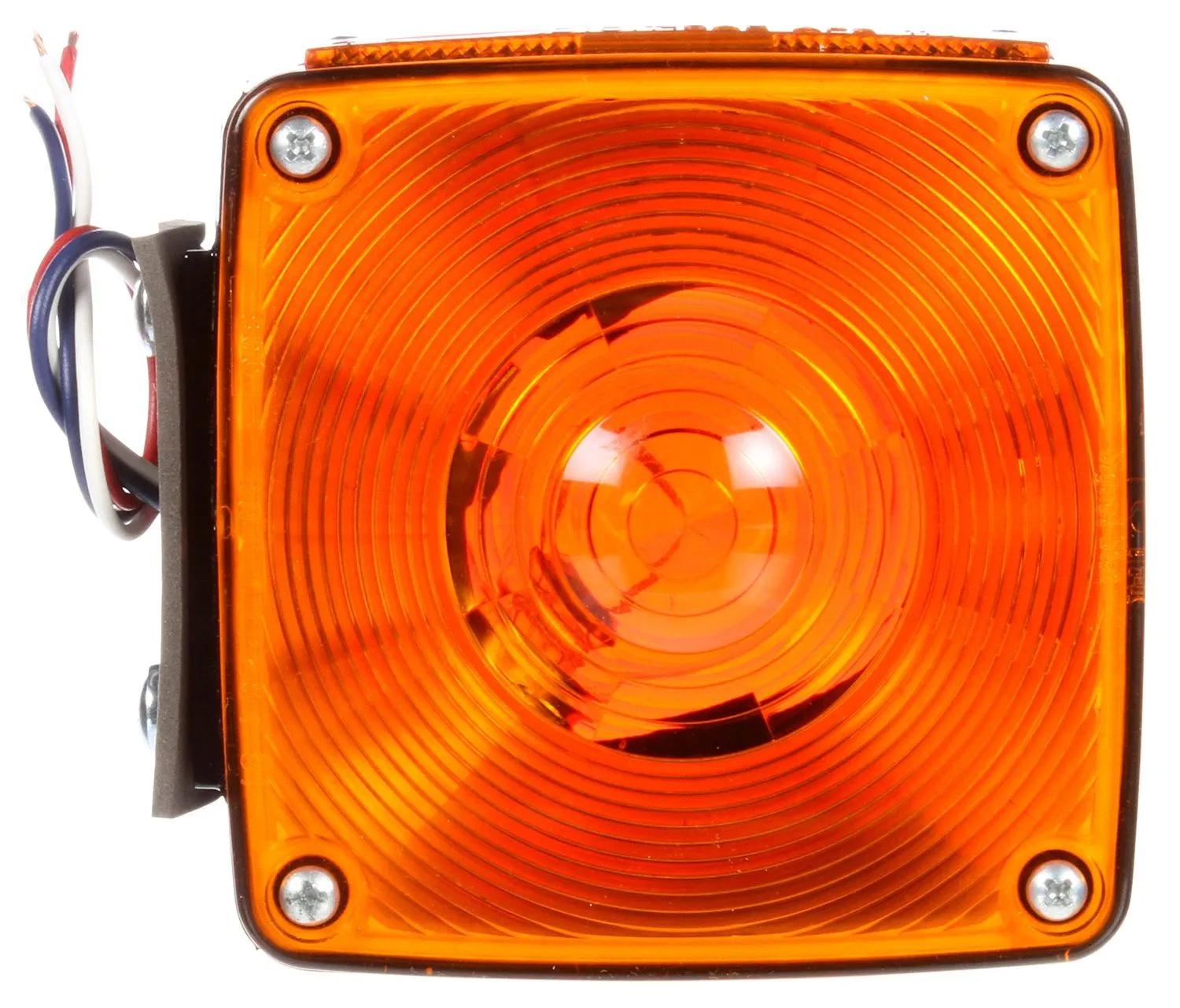

Pedestal Light, Red & Amber, Square
#TRL4805
Product Overview
Signal-Stat, Incandescent, Red/Yellow Square, 2 Bulb, Dual Face, Vertical Mount, Side Marker, 5 Wire, Pedestal Light, 2 Stud, Stripped End
Features & Benefits
- Ground wire added for use on fiberglass fenders
- High-impact non-corrosive polycarbonate housing
- Mounting pad and two 1/4"-20 bolts included
- Side marker and reflector included in design
Specifications
| Color | Amber & Red |
| Common Size | 4 in (10.16 cm) |
| Contents | Pedestal Light |
| Current Major | 2.1 amp |
| Current Minor | 0.5 amp |
| Depth | 3 in (7.62 cm) |
| Height | 4-5/8 in (11.76 cm) |
| Kit (Y/N) | No |
| Length | 4-45/64 in (11.94 cm) |
| Lens Material | Acrylic |
| Mount Type | Stud Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Position | Left or Right Sides |
| Series | Signal-Stat |
| Shape | Square |
| Single or Dual | Dual Face |
| Standard | FMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Pedestal Light |
| VMRS Code | 034-003-071 |
| Volt | 12V |
| Width | 4-5/8 in (11.76 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 55470 |
| 8241099000 |
| 84134805 |
| 982594 |
| 4805 |
| SIG4805 |
| TL4805 |
| TLD4805 |
| 4805-TL |
| 8413-4805 |
| LIT4805 |
| LT1796 |
| SIG 4805 |
| TL 4805 |
| 4805S1G |
| 55470GR0 |
| GRT55470 |
