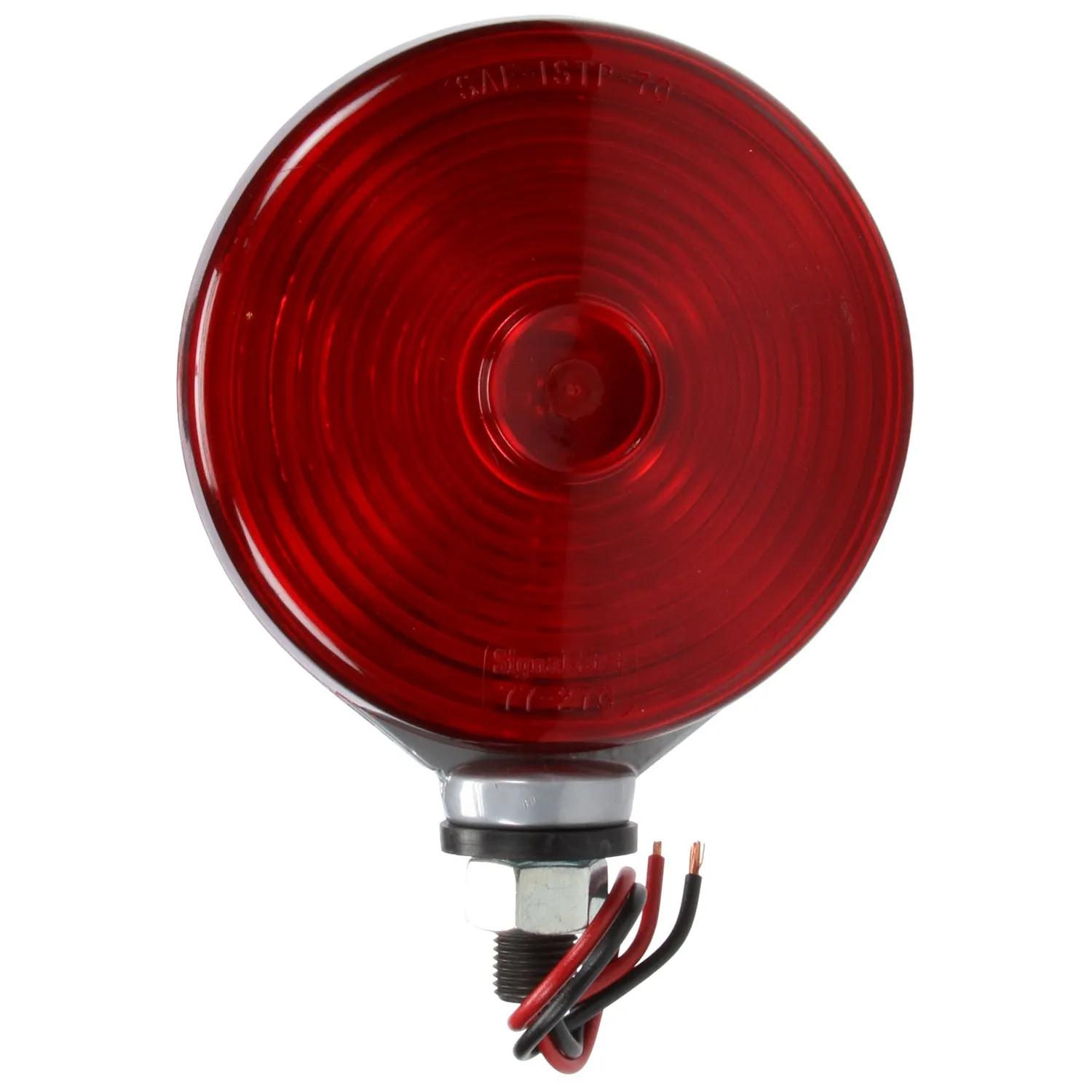

Pedestal Light, Red, Round
#TRL3762
Product Overview
Signal-Stat, Incandescent, Red Round, 1 Bulb, Single Face, 2 Wire, Pedestal Light, 1 Stud, Silver, Stripped End
Specifications
| Couleur | Rouge |
| Taille commune | 4 in (10.16 cm) |
| Contient | Lampe |
| Major actuel | 2,1 amp |
| Mineure actuelle | 0,59 amp |
| Profondeur | 2 in (5.08 cm) |
| Finition | Gray |
| Hauteur | 4-17/64 in (10.85 cm) |
| Trousse (O/N) | No |
| Longueur | 5-21/32 in (14.38 cm) |
| Matériau de la lentille | Polycarbonate |
| Type de support | Montage par goujon |
| Nombre de câbles | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Position | Left or Right Sides |
| Series | Signal-Stat |
| Shape | Rond |
| Single or Dual | Seul |
| Standard | FMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Pedestal Light |
| VMRS Code | 034-004-184 |
| Volt | 12V |
| Width | 4-21/32 in (11.84 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 516838300 |
| 3762 |
| 50662 |
| 6700658 |
| 810000453 |
| SIG3762 |
| TLD3762 |
| 8413-3762 |
| LIT3762 |
| TL 3762 |
| TL3762 |
