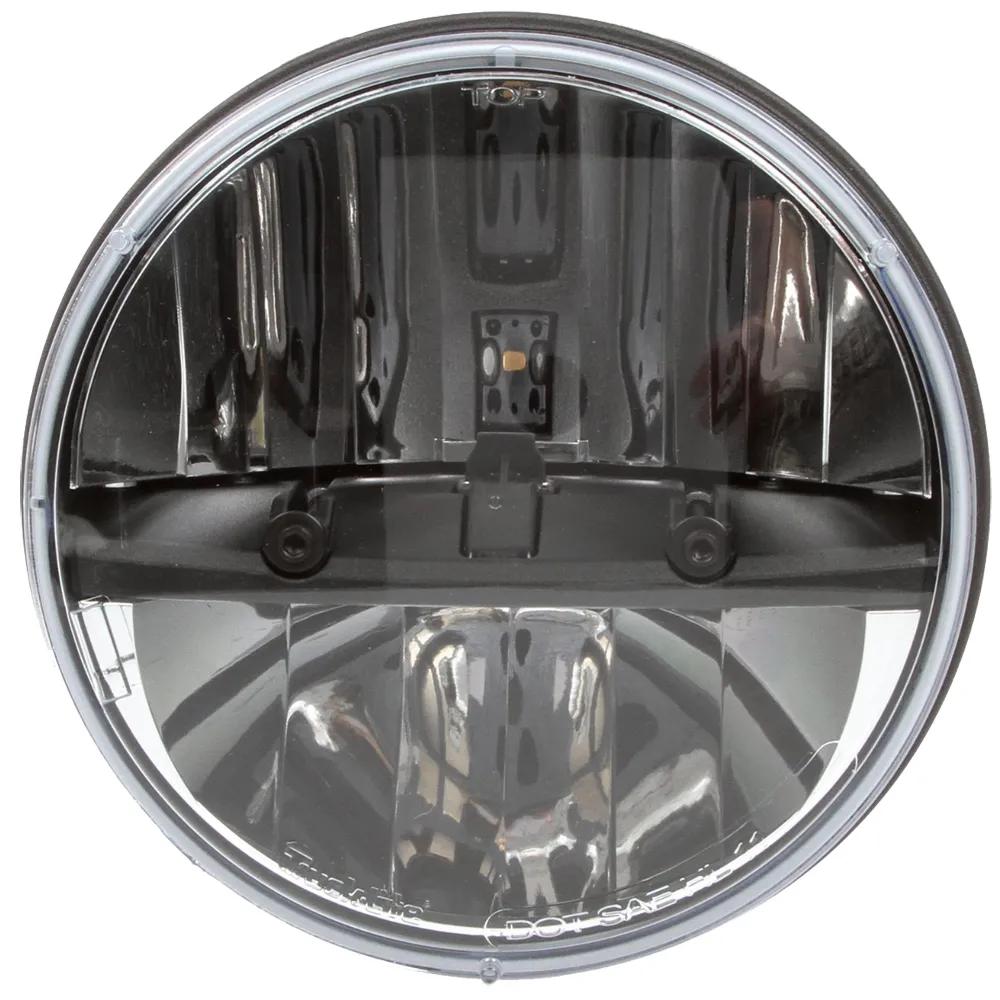

Truck-Lite 7 in Round LED Sealed Beam Headlight, Polycarbonate Lens, 12-24V
#TRL27270C
Product Overview
Complex reflector, 7 inch round LED sealed beam headlight featuring 2 diodes, polycarbonate lens, e-coat aluminum housing, designed for 12-24 volts operation. Provides bright, crisp white light with a wide, even beam pattern for enhanced visibility and safety.Headlight, LED, Aluminum, Polycarbonate Lens, 1.45 to 2.95 A, Round, Standards: CMVSS 108, FMVSS 108, Dot Compliant, 12 to 24 V, Warranty: 3 Years, 7 in W
Features & Benefits
- When Properly Mounted, Is Designed To Conform To The Requirements Listed In The DOT FMVSS108 & The Tc CMVSS-108 Standards. The DOT Symbol On The Headlight Signifies That It Is Street Legal.
- Drop-in Replacement For ANSI #6014, 6015, 6016 And H6024 Standard Headlamps
- Uses Standard H4, 3-blade Wiring Connector
- Up To 50x Longer Life Than Halogen Technology
- Designed At 12 Volts, 1.5 Amp Low Beam 1.2 Amp High Beam. Designed At 24 Volts, 0.8 Amp Low Beam 0.7 Amp High Beam
- Best-in-class Beam Pattern & Dramatically Improves Light Projection Distance & Overall Visibility
- Durable Housing & Non-yellowing, Hard-coated Polycarbonate Lens Offer Optimum Protection Against Damage From Impact, Roadside Debris & Other Hazards
- Recommended Accessories: 96630 H4 To H13 Adapter (JK Models Only) Or 96830 H4 To H13 PWM Adapter (JK Models Only)
- Excellent Option For Light, Medium & Heavy-duty Trucks, Off-road & Agricultural Vehicles, Classic Cards, & More
- Truck-Lite LED headlights provide a crisp, bright white light closer to the color of daylight, combined with a wide, even beam pattern for a safer, more enjoyable driving experience
- Built using solid-state technology and military-grade components, Truck-Lite LED headlights maintain brightness through the toughest conditions
- Draw less power than halogen headlights while offering increased visibility, translating to energy savings for other vehicle requirements
Specifications
| Color | White |
| Depth | 3-13/16 in |
| Height | 7 in |
| Lens Material | Polycarbonate |
| Shape | Round |
| Type | Headlight |
| Weight | 2.21 lb (1 kg) |
| Width | 7 in |
| Connector Type | H4, 3-blade Wiring Connector |
| Current Rating | 1.45 to 2.95 A |
| Finish | Black Powder Coated |
| Housing Material | Die Cast Aluminum |
| Lamp Type | LED |
| Mounting Type | Drop-in Replacement for ANSI #6014, 6015, 6016 and H6024 Standard Headlamps |
| Standards | CMVSS 108, FMVSS 108, DOT Compliant |
| Voltage Rating | 12 to 24 V |
| Warranty | 3 Years |
| Product Category | Headlight |
Interchanges & Equivalent parts:
| TRL27250C |
| TKL27270C |
| TL 27270C |
| RTLEDHL07HILO |
