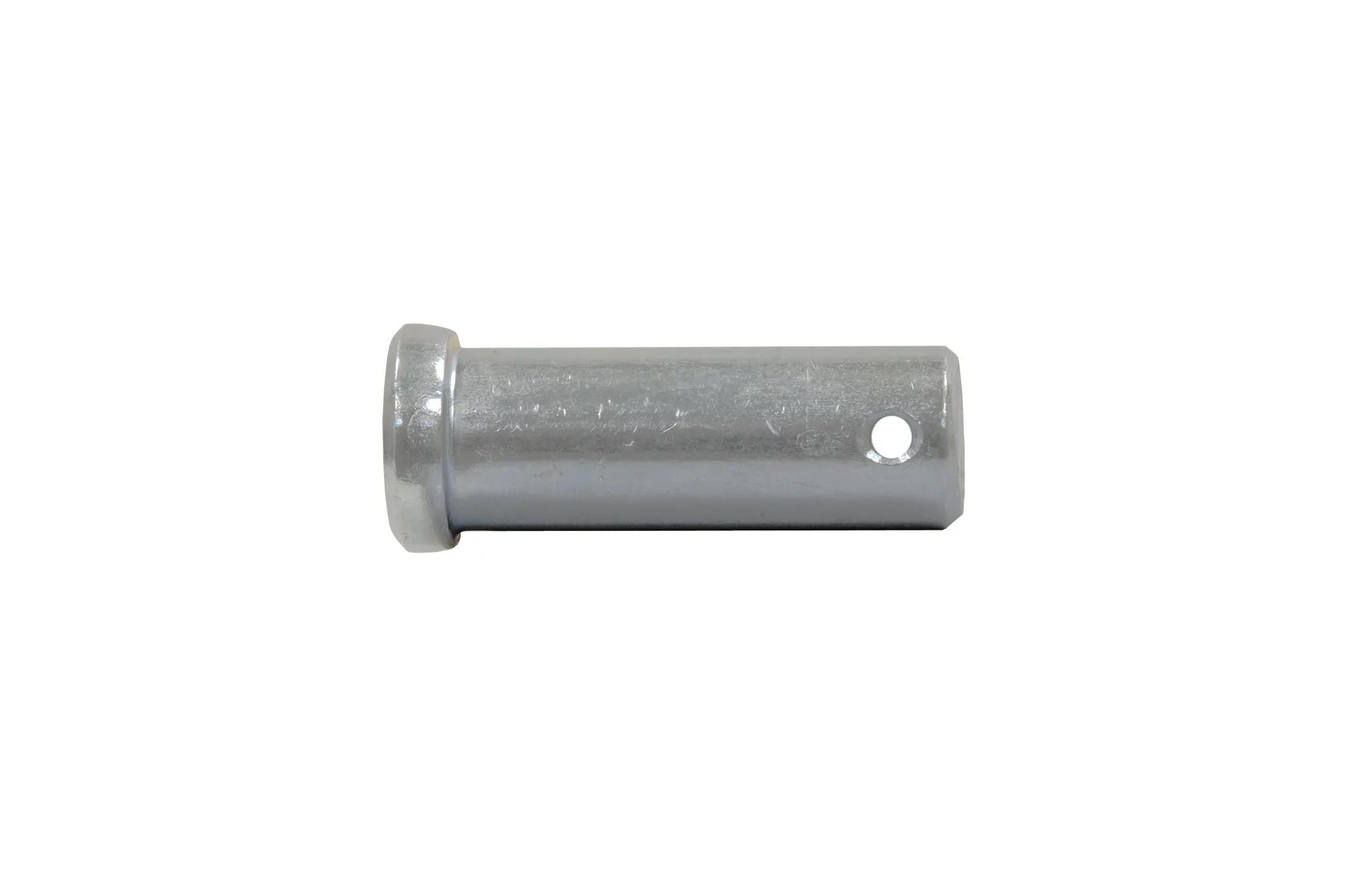

PIN CLEVIS 5/8 ZC
#BUYB27081/27AZ
Features & Benefits
- Clevis pins are machined to SAE standards.
- Can be ordered with a cadmium- or zinc-plated finish in quantities to your specification.
Specifications
| Chamfer Height (in.) (G) | 0.109 |
| Drill Number / Hole Diamter (0) | 29(.136) " |
| Finish | Zinc Plated |
| Head Diameter (in.) (B) | 0.813 |
| Head Height (in.) (C) | 0.203 |
| Material | Carbon Steel |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Overall Pin Length (in.) | 1.72 |
| Pin Diameter | 5/8 in (1.6 cm) |
| Pin Type | Clevis " |
| Product Code | 740 |
| Product Common Use | Rods and Cables, Air Cylinders, Cable Controls |
| Sell Pack Type | Each |
| Shipping Weight | 0.170 |
| UPC | 724920015585 |
| Usable Pin Length (in.) | 1.469 |
Interchanges & Equivalent parts:
| B27081/27AZ |
