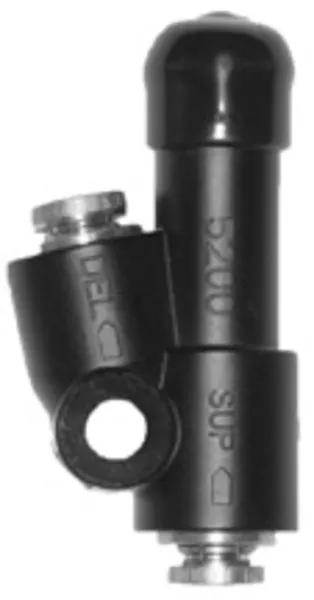

Pressure Protection Valve, Inline, 1/4 in Inlet, 1/4 in Outlet, Push-to-Connect Fitting Inlet, Push-to-Connect Fitting Outlet
#FTCGTD5200-75
Product Overview
GTD5200-75 inline pressure protection valve, 75 psi open/60 psi close, 1/4 in PTC fittings.Pressure Protection Valve, Inline, Push-to-Connect Fitting Inlet, Push-to-Connect Fitting Outlet, 1/4 in Inlet, 1/4 in Outlet, 75 psi Open/60 psi Close, -40 to 230 °F, For Kenworth and Peterbilt
Features & Benefits
- 150 psi maximum
- Supply port: 1/4 in push-to-connect fitting
- Delivery port: 1/4 in push-to-connect fitting
- Operating temperature: -40 to 230 °F
- Popular on Kenworth & Peterbilt
Specifications
| Application | Kenworth and Peterbilt |
| Inlet Size | 1/4 in |
| Inlet Type | Push-to-Connect Fitting |
| Outlet Size | 1/4 in |
| Outlet Type | Push-to-Connect Fitting |
| Pressure Rating | 75 psi Open/60 psi Close |
| Series | GTD5200 |
| Temperature Rating | -40 to 230 °F |
| Type | Inline |
| Manufacturer Part Number | GTD5200-75 |
| Product Category | Pressure Protection Valve |
Interchanges & Equivalent parts:
| GTD5200-75 |
