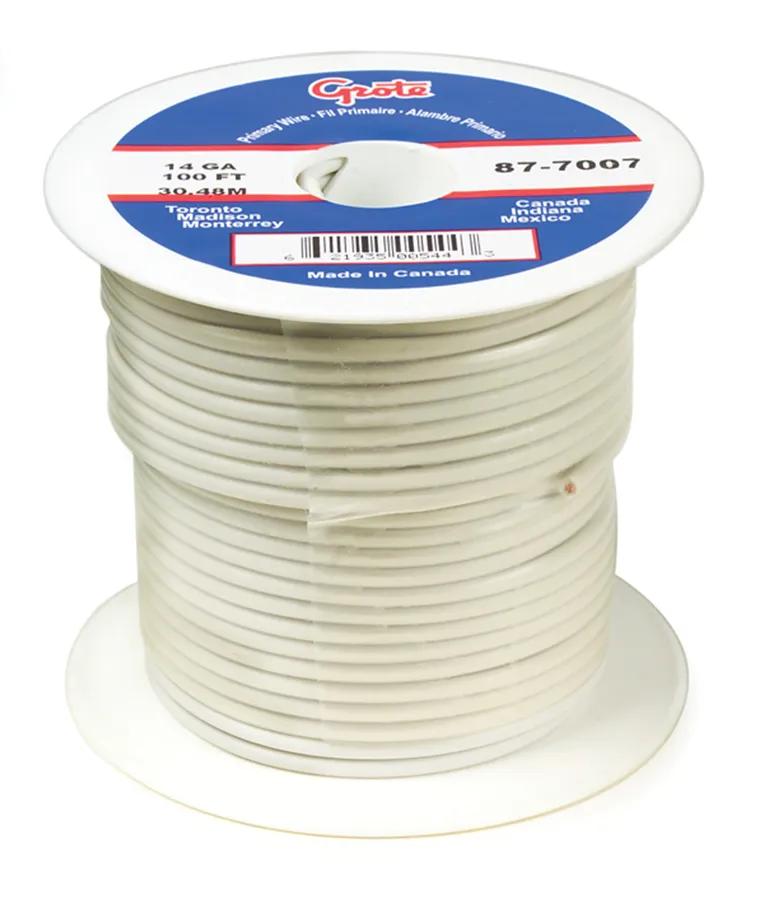

Primary Wire, 14 Gauge, White, 100 Ft Spool, Copper Conductor, PVC Jacket
#GRO87-7007
Product Overview
Grote offers 100% pure copper general purpose thermoplastic primary wire with a PVC jacket that resists grease, oil, gasoline, acids, and other abrasive materials. This single conductor wire meets SAE J1128 specifications and is suitable for automotive, truck, and marine applications. Available in multiple spool lengths including 25', 100', and 1,000'.Thermoplastic Wire, General-Purpose, White, Copper Conductor, PVC Insulation, PVC Jacket, 14 GA Gauge, 1 Conductors, 19 Strands, 0.113 in OD, SAE J1128 Standards, -40 to 105 °C Temperature Rating, 60 V, 1 Year Warranty, 100 ft Length, For Automotive, Truck and Marine
Features & Benefits
- Single conductor PVC jacket resists grease, oil, gasoline, acids & other abrasive materials
- Used for automotive, truck & marine applications
- Meets SAE code J1128 specifications
- Available in 25', 100' shrink wrapped spools, 1000' also available
- Temperature rating -40°C (-40°F) to 80°C (176°F)
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Available in 25, 100, and 1,000 Feet Spools.
- Custom Length Wire Lengths Available by Special Order Only.
Specifications
| Color | White |
| Gauge | 14 ga |
| Length | 100 ft |
| Material | Thermoplastic |
| Type | (GPT) General Purpose Thermo Plastic Wire |
| UPC | 621935005443 |
| Application | Automotive, Truck and Marine |
| Conductor Material | Copper |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Number of Conductors | 1 |
| Number of Strands | 19 |
| Outside Diameter | 0.113 in |
| Package Type | Spool |
| Standards | SAE J1128 |
| Temperature Rating | -40°C (-40°F) to 85°C (185°F) |
| Voltage Rating | 60 V |
| Warranty | 1 Year |
| Product Category | Thermoplastic Wire |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 877007 |
| 2-126 |
| 85108001 |
| GRO 87 7007 |
| GRO877007 |
| ZBJ877007 |
| ZBJD877007 |
| 051141 |
| 71406 |
| 714-06TEC |
| 7376-877007 |
| EL614040 |
| GRO 87-7007 |
| GRT87-7007 |
| VEL051141 |
| FPW14WC |
| TEN768026 |
| 2126 |
| 422292 |
| 714-06 |
| 732509 |
| 8114-6-C |
| 87-7007 |
| 34008006 |
| ROS34008006 |
| 2409 |
| 51141 |
| 02409 |
| 7827153 |
| 785403 |
| ATC30 |
| 721133 |
| 721134 |
| 784678 |
| 321H |
| 30286 |
| 60730 |
| V483R |
| 81146C |
| 44147C |
