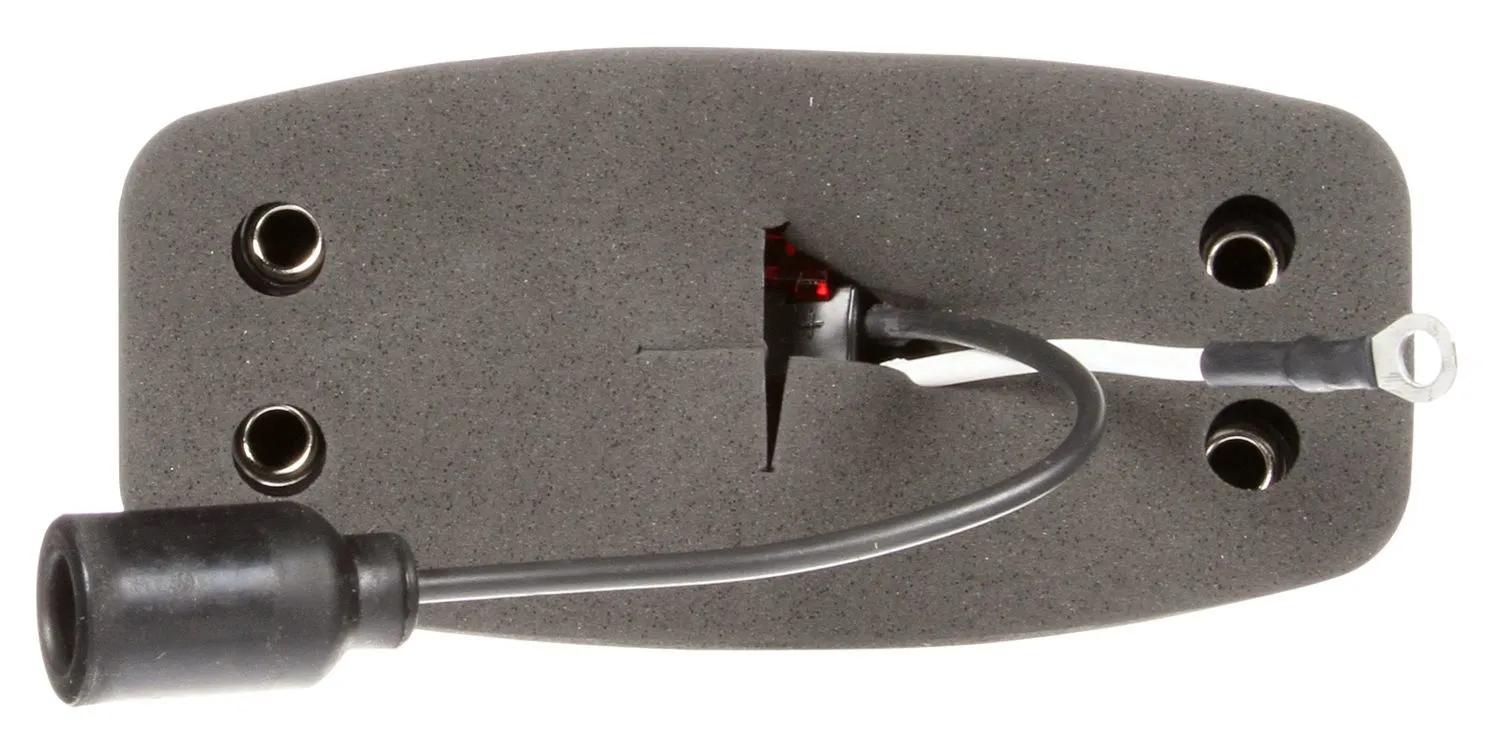

RD LED KIT 30 SER.M/C 12V
#TRL07395
Product Overview
30 Series, LED, Red Round, 1 Diode, Marker Clearance Light, PC, Bracket Mount, Socket Assembly, Female Military Boot/Ring Terminal, 12-24V, Kit
Features & Benefits
- Complies with FMVSS 108 Requirements
- Available in military color-schemed brackets
- Kits include a deflectory mount with inner bracket that allows cam-on of the lamp for quick installation
- Designed with polycarbonate material, 3x's stronger than other acrylic options.
Specifications
| Common Size | 2 in (5.08 cm) |
| Current Major | 0.14 amp |
| Current Minor | 0.06 amp |
| Depth | 1-55/64 in (4.72 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-29/64 in (6.22 cm) |
| Kit (Y/N) | Yes |
| Lens Color | Red |
| Lens Height | 2 in (5.08 cm) |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Lens Width | 2 in (5.08 cm) |
| Material | Polycarbonate |
| Mounting Connector Diameter (in.) | 17/64 in (0.69 cm) |
| Mount/Trim Color | Black |
| Mount/Trim Material | Polycarbonate |
| Mount Type | Bracket Mount |
| Number of Diodes/Bulbs | 6 |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget M/C |
| Plug Side Two | Female Military Boot |
| Product Type | Marker Clearance Light |
| Reflectorized (Y/N) | No |
| Series | 30 Series |
| Standard | FMVSS 108 |
| Technology | LED |
| VMRS Code | 034-004-021 |
| Volt | 12V & 24V |
| Weight | 0.5 lbs (0.23 kg) |
| Width | 5-5/32 in (13.11 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 07395TLT |
