Receptacle, 50 Series, Le: 3-45/64 in
#TRL50872
Product Overview

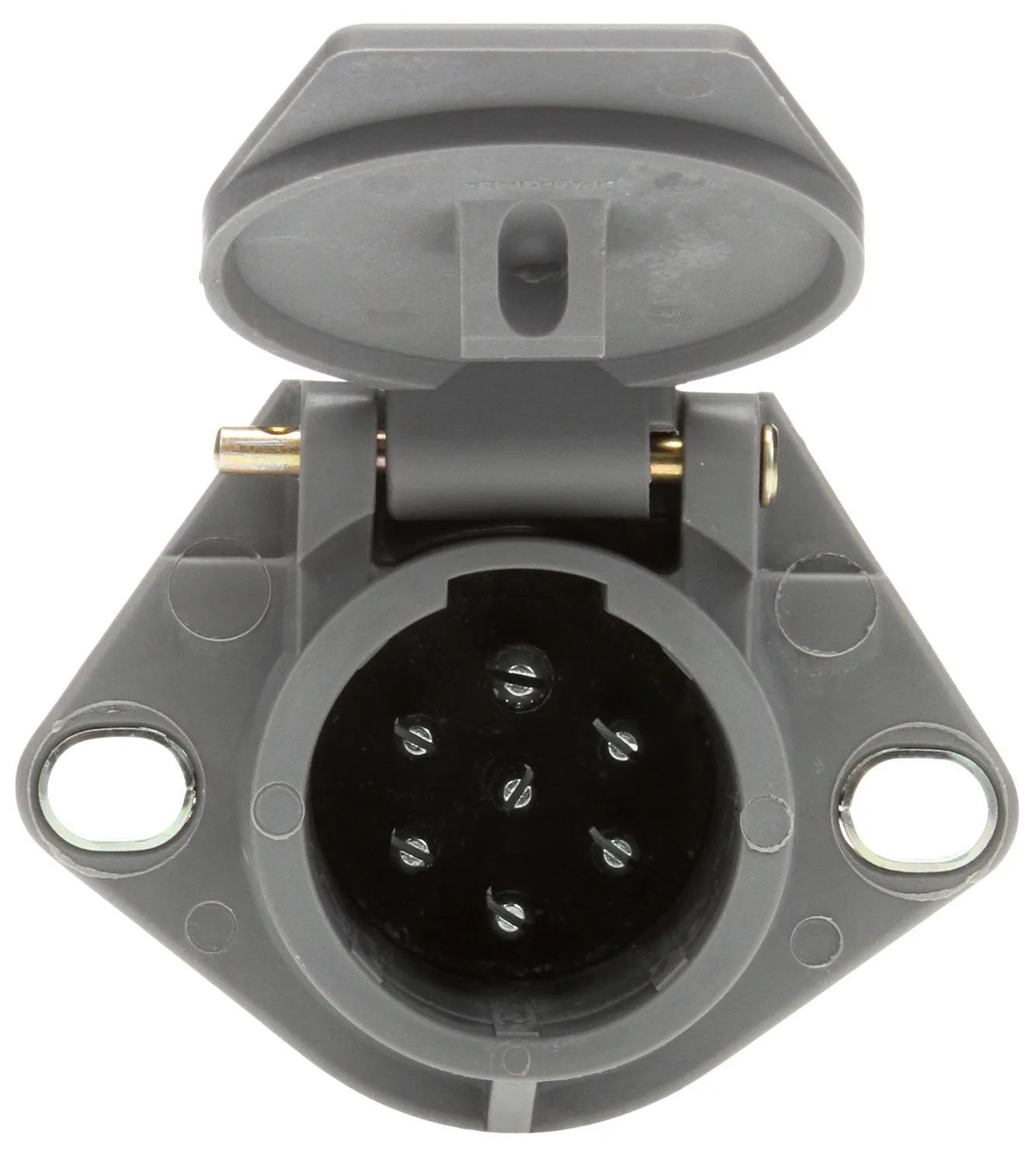

50 Series, Push-On, 7 Split Pin, Grey Plastic, Flush Mount, Receptacle
Features & Benefits
- Tough GE Noryl, non-conductive, corrosion resistant body
- Floating type, cadmium-plated brass pins allow best alignment and long-lasting contact with plug
- Internal connections feature a direct wired ground
Specifications
| Color | Gray |
| Depth | 3-19/64 in (8.38 cm) |
| Height | 2-49/64 in (7.04 cm) |
| Kit (Y/N) | No |
| Length | 3-45/64 in (9.4 cm) |
| Number Of Contacts | 7 |
| Series | 50 Series |
| Standard | SAE J560 |
| Type | Receptacle |
| Weight | 0.4 lb (0.18 kg) |
| Width | 3-23/32 in (9.45 cm) |
Specifications
| Terminal Type | Split Pin |
Interchanges & Equivalent parts:
| 41302047 |
| 841350872 |
| 50872 |
| 87270 |
| HT50603028 |
| TL50872 |
| TLD50872 |
| 8413-50872 |
| LIT50872 |
| TL 50872 |
| TL 50872 |
| 50872TLT |
| 87270GR0 |
| GRT87270 |
| 18615 |
