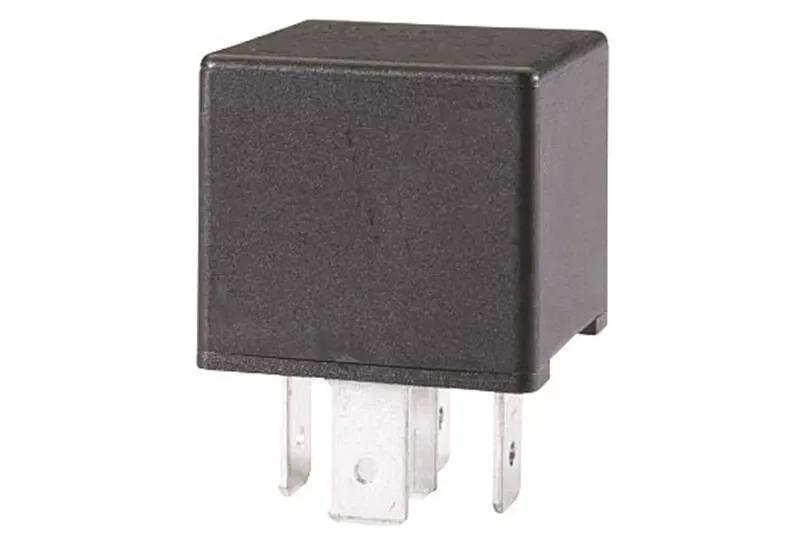

RELAY 12V 20/40A SPDT
#HLA933332057
Features & Benefits
- SPDT / Form C
- Dust Cover
Specifications
| Amps | 40 amp |
| Coil Resistance | 85 Ohm ± 10% |
| Contact Form | 1 Form C / SPDT |
| Contact Material | AgSnO2 |
| Current (A) | 40 |
| Dielectric strength | 1,000 VDC |
| Height | 7,87 in. |
| Inductive Load / Switching Cycles | 15 amp |
| IP Rating | IP54 DIN IEC 60 529 |
| Lamp Load (capacitive) / Switching Cycles | N/O 20A |
| Length | 10,83 in. |
| Max. Coil Voltage (V) | 20 |
| Maximum Ambient Temperature (C) | -40 to +85 |
| Max. Inrush Load | 150A |
| Mechanical Cycles | 10000000 |
| Mechanical Shock | Min. 10g. 11 ms: no contact openings <gt/> 10 |
| Number of Poles | 5 |
| Operating / Drop out Voltage | ≤ 8.0V / ≥1.0V |
| Operating / Releasing Time | ≤ 10 ms / ≤ 5 ms |
| Quantity | 200 |
| Rated Continuous Load | N/O 40A |
| Resistive Load / Switching Cycles | N/O 40A, N/C 20A, 100,000 cycles |
| Suppression | None |
| # Terminals | 85, 86: ISO 8092 6.3 x 0.8, CuZn, gal Sn, 30, 87: ISO 8092 6.3 x 0.8, CuZn, 30, 87: ISO 8092 6.3 x 0.8, CuZn |
| UPC | 760687122920 |
| Vibration | 20 - 200 Hz, 5g: no contact openings <gt/> |
| Volt | 12 V |
| Voltage | 12 |
| Width | 10,83 in. |
