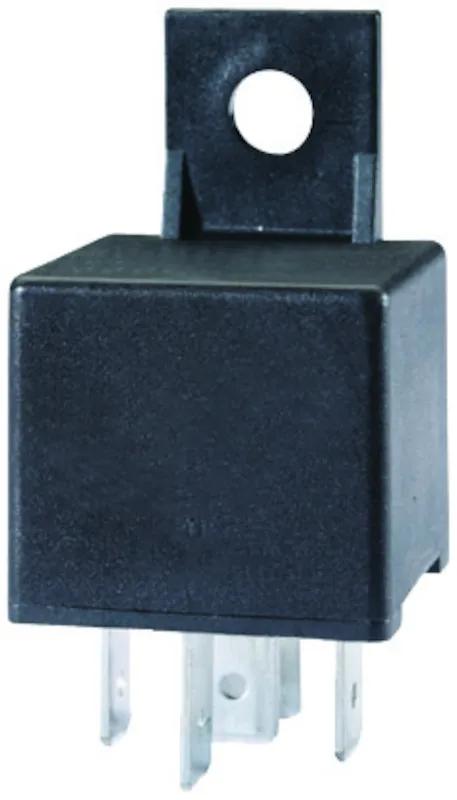

RELAY 12V 40A SPST D87 BKT
#HLA933791061
Features & Benefits
- SPDT / Form A
- Dual Output (2 x Terminal 87)
- Mounting Bracket
Specifications
| Amps | 40 amp |
| Coil Resistance | 85 Ohm ± 10% |
| Contact Form | 1 Form A / SPST N/O (2 x Terminal 87) |
| Contact Material | AgSnO2 |
| Current (A) | 40 |
| Dielectric strength | 1,000 VDC |
| Height | 2 in. |
| Inductive Load / Switching Cycles | 15 amp |
| IP Rating | IP54 DIN IEC 60 529 |
| Lamp Load (capacitive) / Switching Cycles | 30A 100,000 cycles |
| Length | 1 in. |
| Max. Coil Voltage (V) | 20 |
| Maximum Ambient Temperature (C) | -40 to +85 |
| Max. Inrush Load | 150A |
| Mechanical Cycles | 10000000 |
| Mechanical Shock | Min. 10g. 11 ms: no contact openings <gt/> 10 |
| Number of Poles | 5 |
| Operating / Drop out Voltage | ≤ 8.0V / ≥1.0V |
| Operating / Releasing Time | ≤ 10 ms / ≤ 5 ms |
| Pole | Single |
| Quantity | 1 |
| Rated Continuous Load | 40A at 85° C |
| Relay Terminal | 5 Male |
| Resistive Load / Switching Cycles | 40A, 100,000 cycles |
| Suppression | None |
| # Terminals | 85, 86: ISO 8092 6.3 x 0.8, CuZn, gal Sn, 30, 87: ISO 8092 6.3 x 0.8, CuZn, 30, 87: ISO 8092 6.3 x 0.8, CuZn |
| Terminal Type | Spade |
| UPC | 760687123095 |
| Vibration | 20 - 200 Hz, 5g: no contact openings <gt/> |
| Volt | 12 V |
| Voltage | 12 |
| Width | 1 in. |
| Wiring Harness Included | No |
