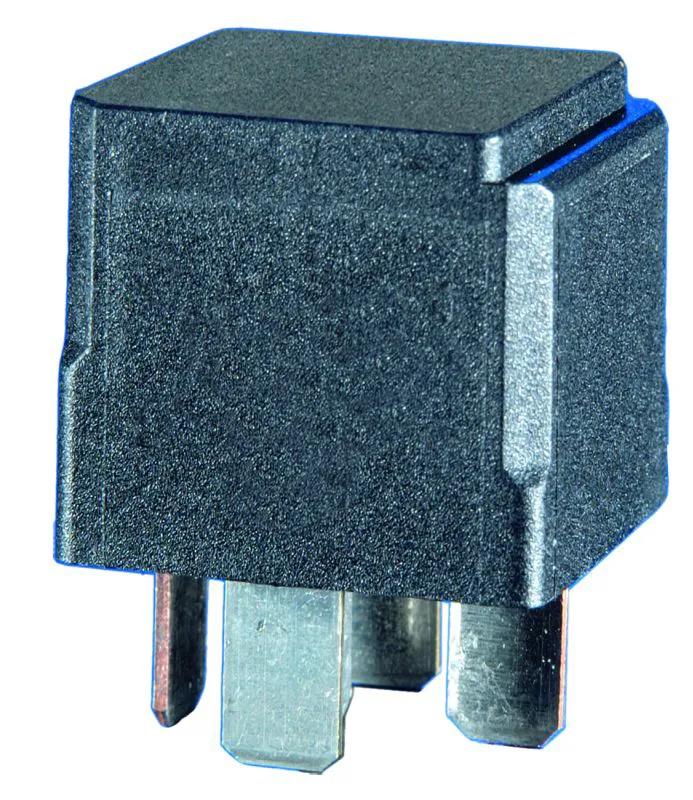

RELAY 24V 10/20A SPDT RES
#HLA007903001
Features & Benefits
- SPDT / Form C
- Resistor Coil Suppression
- Dust Cover
Specifications
| Amps | 10 amp/20 amp |
| Coil Resistance | 100 Ohm ± 10% (incl. suppression component) |
| Contact Material | AgSnO2 |
| Dielectric strength | 1,000 VDC |
| Height | 1-3/16 in |
| Inductive Load / Switching Cycles | N/O 15A, 100,000 cycles |
| Lamp Load (capacitive) / Switching Cycles | N/O 15A, 135,000 cycles |
| Length | 1-3/32 in |
| Max. Coil Voltage (V) | 36 V |
| Max. Inrush Load | 150 A lamp load / 166A motor load |
| Mechanical Cycles | 10000000 |
| Mechanical Shock | 500 m/s2 , 11ms, period: 1 min, 1,000 times |
| Number Of Contacts | 1 |
| Number Of Terminals | 5 Male |
| Operating / Drop out Voltage | 17.0 V / 3.5 V |
| Operating / Releasing Time | 10 ms / 10 ms |
| Quantity | 1 |
| Resistive Load / Switching Cycles | N/O 20 A, 150,000 cycles |
| Suppression | Resistor, 1,200 Ohm |
| Terminal Type | Spade |
| UPC | 760687121565 |
| Vibration | 20 - 200 Hz, 50 m/s2, 6 h per axis |
| Volt | 24V |
| Width | 1-3/32 in |
| Wiring Harness Included | No |
