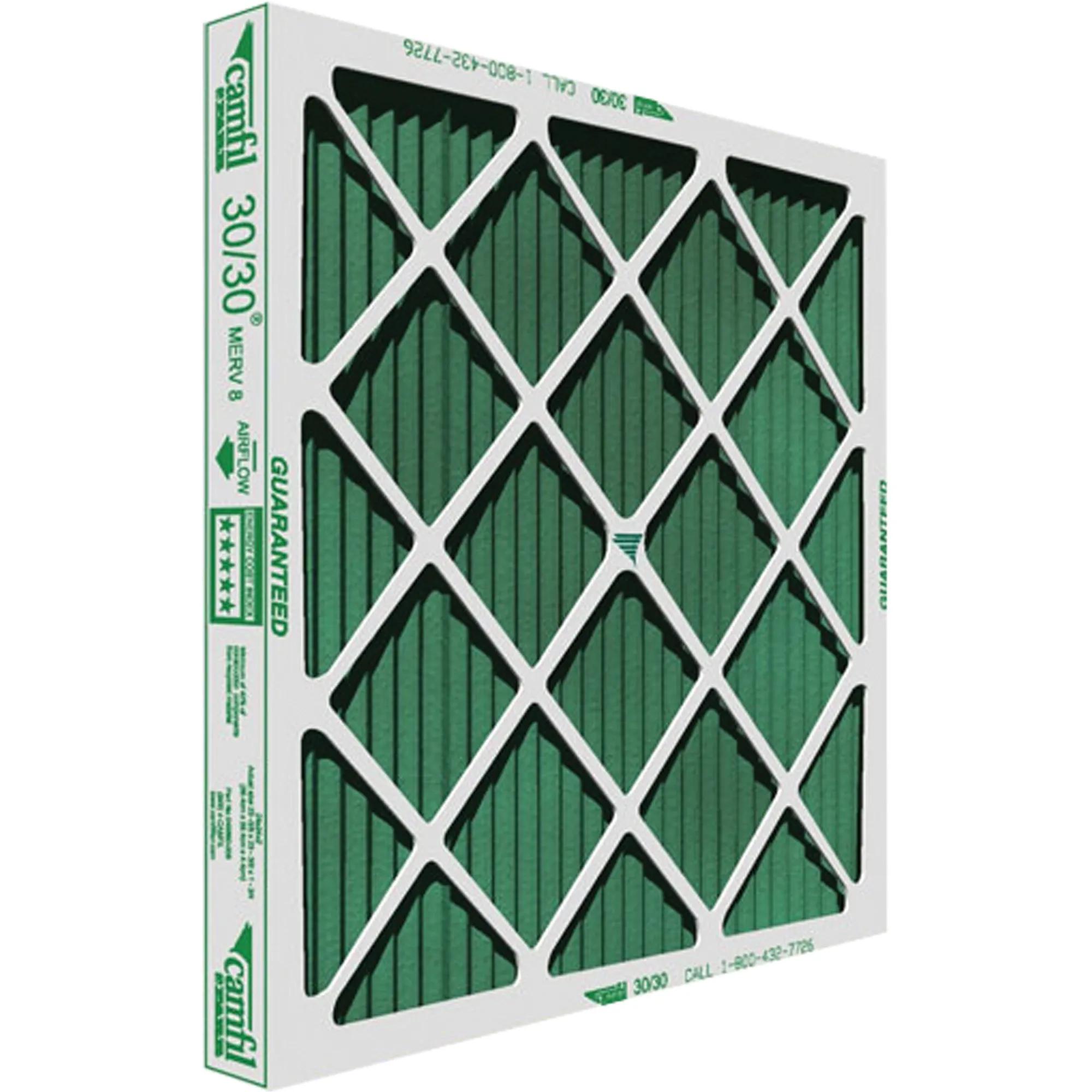

SCN 30/30® High-Capacity Pleated Panel Filter, Box, MERV 8, 20 in W x 2 in D x 25 in H
#SCNEA168
Product Overview
The 30/30® High-Capacity Pleated Panel Filters are designed to meet today's medical facility requirements and provide consistent dirt removal efficiency throughout the life of the filter. These filters feature a proprietary blend of cotton and synthetic fibres in a uniform lofted media blanket with an exclusive MERV 8 Media, blended from cotton and polyester fibres. They offer a low initial and maintained low resistance to airflow, saving energy dollars, and are ideal for commercial, industrial, institutional, or any other application where the ultimate level of protection of equipment and indoor air quality is a concern
Features & Benefits
- High capacity pleated panel filter available in 1 in, 2 in or 4 in depths
- A welded wire grid to maintain the radial pleat and eliminates distortion of the media pack even under turbulent or high airflow conditions
- The 30/30 meets today's medical facility requirements
- A low initial and maintained low resistance to airflow, over the life of the filter that saves energy dollars
- A high wet-strength beverage board frame for maintained filter rigidity in any application
- Typical applications: Pre-filters to higher efficiency filters, stand-alone filter for rooftops, split systems, free-standing units and package systems and air handlers. Ideal for commercial, industrial, institutional or any other application where the ultimate level of protection of equipment and indoor air quality is a concern
- Note: Initial resistance to airflow (in w.g.) Other sizes also available
Specifications
| Depth | 2 po |
| Filter Style | Boîte |
| Height | 25 po |
| Quantity | 1 |
| Rated Flow HR | 1740 |
| Rated Flow MR | 870 |
| Restriction HR | 0.28 |
| Restriction MR | 0.08 |
| Width | 20 in |
| Manufacturer Part Number | 49880003 |
| Product Category | Air Filter |
