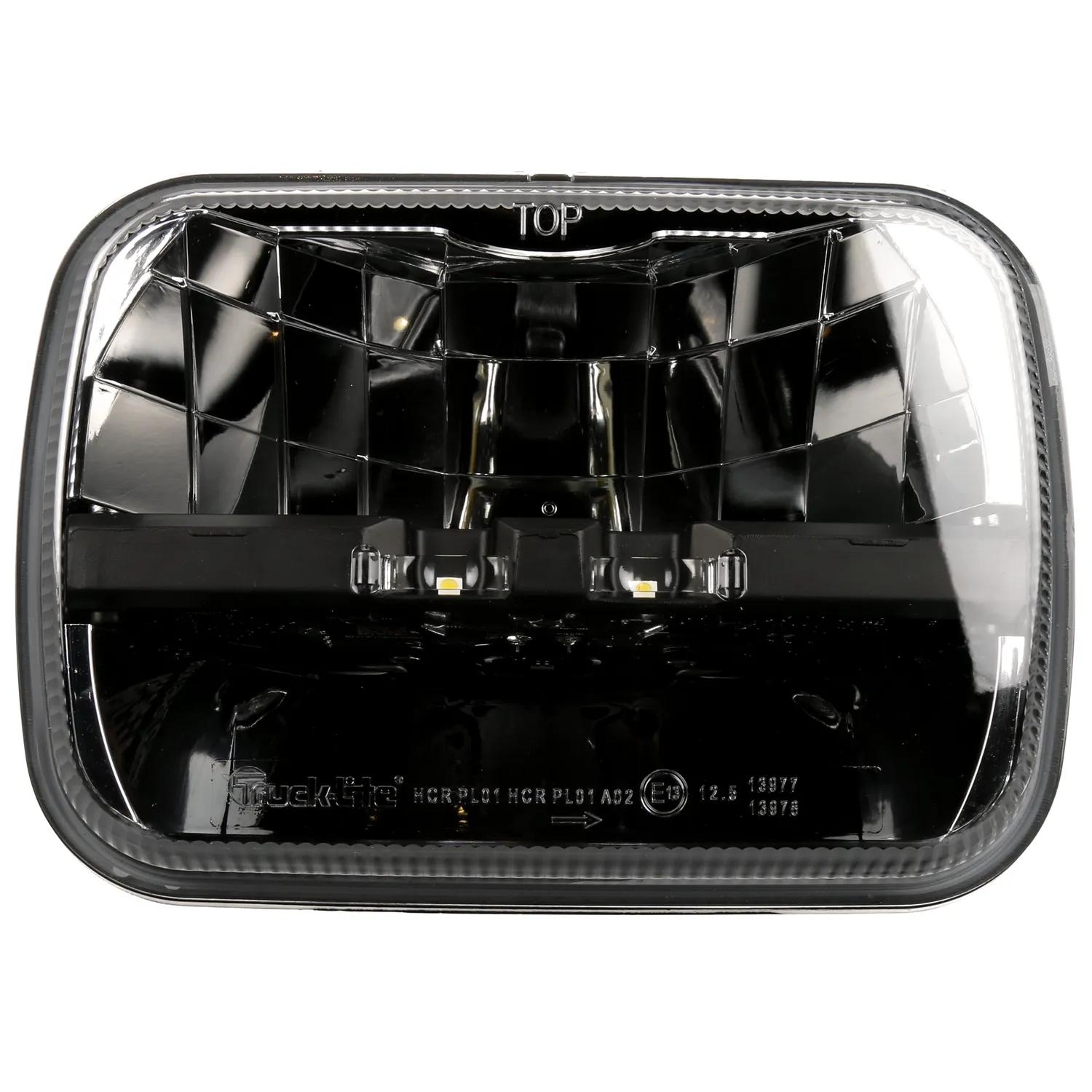

Sealed Beam, LED, H: 5-5/8 in, D: 3-7/8 in, W: 7-29/32 in
#TRL27490C
Product Overview
ECE Right Hand Side, 5"x7" Rectangular LED, 2 Diode Headlight, Polycarbonate Lens, Aluminum, 12-24V
Features & Benefits
- LED Sealed Beam Technology w/ Polycarbonate Lens & Sealed Electronics. Perfect For Medium & Heavy-duty Trucks, Off-road Vehicles, Classic Cars, Motorcycles & More
- Produces Pure White Light, Nearly Identical To Daylight That Is Easy On The Eye, Unlike Harsh Blue HID Systems
- Operational On Virtually All Roadways Across Europe, Austrailia & New Zealand, Right Hand Traffic Lamp
- Features A Highly Controlled Driving Beam Pattern, Offering Glare Protection To Oncoming Traffic
- Ultra-bright Output & Contrast For Maximum Visibility At Night.
- H-4, 3-blade Connector Coupled By Blunt Cut Position & Ground Wires For Universal Application
- Material: Hard-coated Polycarbonate Lens, Ecoat Aluminum Housing & Internal Structures, Metalized Reflector, 18 Gauge Wire
- Power: 9-33 Multi-volt Design Works W/ Both 12 & 24 Volt Systems, 1.3 Amp (passing), 2.3 Amp (driving) At 12 Volt, 0.6 Amp (passing), 1.1 Amp (driving) At 24 Volt
- Position: .03 Amp At 12 & 24 Volt
- Specifications: Operating Temperature Range Of -40 To 50 Degree C, Overvoltage Protection To 600 Volts w/ Constant Output, Mechanical Aim
Specifications
| Color | White |
| Depth | 3-7/8 in (9.86 cm) |
| Height | 5-5/8 in (14.3 cm) |
| Kit (Y/N) | No |
| Lens Material | Polycarbonate |
| Lens Width | 5 in (12.7 cm) |
| Number Of Wires | 5 |
| Product Type | Headlight |
| Shape | Rectangular |
| Standard | CMVSS 108, FMVSS 108, DOT |
| VMRS Code | 034-001-000 |
| Volt | 12V & 24V |
| Weight | 2.61 lb (1.18 kg) |
| Width | 7-29/32 in (20.09 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 27490C |
| 27490CTLT |
| 8413-27490C |
