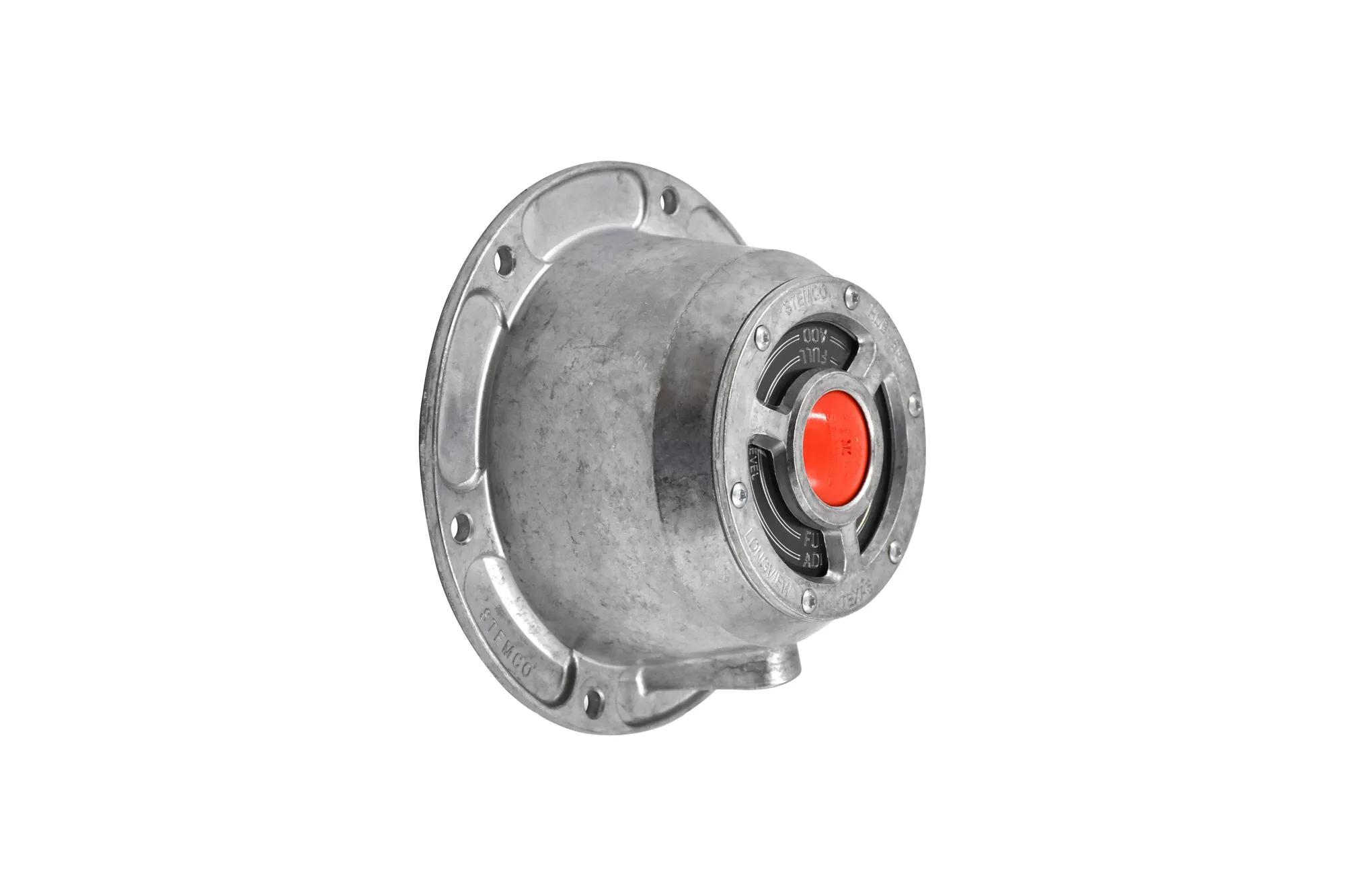

Sentinel Oiled Hub Cap, 6-3/4 in Bolt Circle Diameter, 6 Bolt Holes
#STM348-4195
Features & Benefits
- Prevents dirt and water from contaminating the oil, thereby extending seal and bearing life
- Dramatically reduces contaminant build-up on hub cap windows, allowing for an accurate determination of lube levels
- Eliminates early oil breakdown by preventing water contamination as a result of submerged axles
- Provides maximum protection for maintenance-free wheel end systems
- Improves performance and lowers overall maintenance costs
Specifications
| Application | On Dual Tires |
| Bolt Circle Diameter | 6-3/4 in |
| Bolt Size | 5/16 in |
| Flange Diameter | 5-7/16 in |
| Inside Depth | 2-15/16 in |
| Overall Depth | 3-11/16 in |
| Quantity | 1 |
| Type | Oil, Sentinel |
| VMRS Code | 018003003 |
| Weight | 2.2 lbs (1 kg) |
| Includes | Gasket Part Number 330-3118 |
| Number of Bolts | 6 |
| Product Category | Hub Cap |
Interchanges & Equivalent parts:
| STE3484195 |
| IMT348-4195 |
| 1660341 |
| 3484195-ST |
| 7843-3484195 |
| ST348-4195 |
| STM 348 4195 |
| STM3484195 |
| TWD3484195 |
| 1696CHR |
| BOSB343-4195 |
| HCP4195 |
| NOS1696 |
| STE343-4195 |
| STE348-4195 |
| ZCP3484195 |
| 3484195 |
| 348-4195 |
