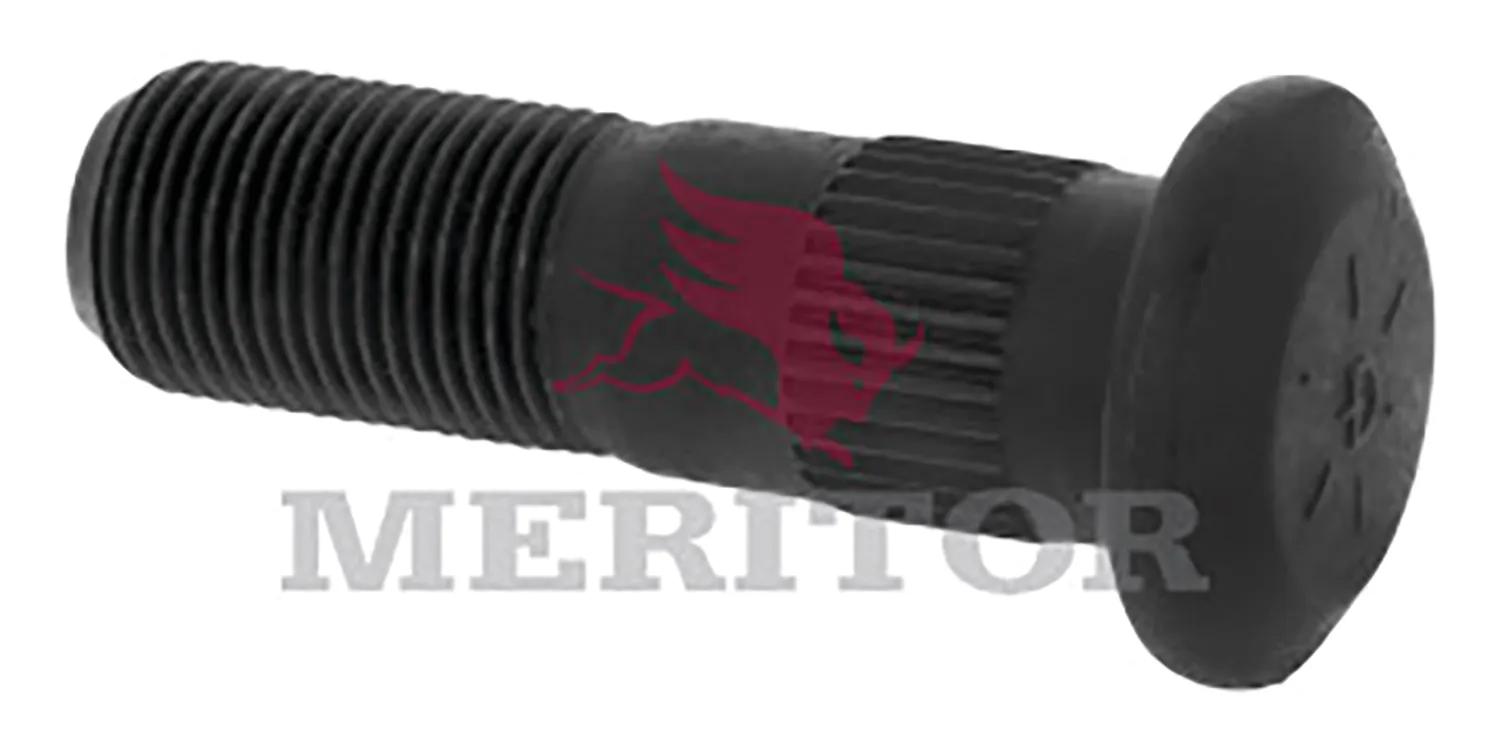

Serrated Stud, UHL: 2-5/8 in, Thread: 31/32 in x 3/4-16
Product Overview
Specifications
| Application | Used on TK. TKL. RL. TL (also Eaton). With some cast drums on TK. TKL. use R004968-R/L. Used on RN. RQ. TKN. |
| Body Diameter | 25/32 in (1.99 cm) |
| Body Length | 1-1/4 in (3.18 cm) |
| Head Diameter | 1-9/32 in (3.26 cm) |
| Head Thickness | 5/16 in (0.8 cm) |
| Height | 3-29/64 in (8.78 cm) |
| Length | 7-3/32 in (18.02 cm) |
| Length from Under Head-OAL | 2-5/8 in (6.67 cm) |
| Note | Stepped Body Diameter |
| OEM # | Meritor 20-X-430; Budd 59263; Trailmobile 50-33A-29 |
| Quantity | 10 |
| Right or Left Hand Threads | RH |
| Serration | Serrated |
| Thread | 3/4-16 |
| Thread Diameter | 3/4 in (1.91 cm) |
| Thread Length | 31/32 in (2.47 cm) |
| Type | Round |
| Weight | 4.4 lbs (2 kg) |
| Width | 5-3/32 in (12.94 cm) |
Interchanges & Equivalent parts:
13-1103R, 50-1118R, 50-1123R, E-4966R, E4966R, M76, U73X1712, W66, X1712, 1541703R, 184198R1, 18AX1108, 20X430, 3946402, 50-33A-29, 501123R, 5926364, 610-208, 7EQH-1118, 8235-R004966R, 877579, 9628 R004966 R, 983879R1, ATIR004966R, KB4966R, MWCX01712, NL5304, OK59263, R004966R-RI, TDA R004966R, TDAR004966R, TP821R, TWDR004966R, 59263, 59264, M-76, W-66, WA1212, WE4966R, WE5559R, X-1712, M76, 50-1123R, 13-1103R, W66, U73X1712, 50-1118R, X1712, E-4966R, E4966R, TDA R004966R, 20X430, KB4966R, TP821R, 3946402, 1541703R, 9628 R004966 R, OK59263, 983879R1, 501123R, ATIR004966R, 184198R1, 50-33A-29, NL5304, MWCX01712, 18AX1108, R004966R-RI, 5926364, TWDR004966R, TDAR004966R, 8235-R004966R, 877579, 610-208, 7EQH-1118, WA1212, X-1712, WE5559R, 59264, W-66, M-76, 59263, WE4966R, WA1212
