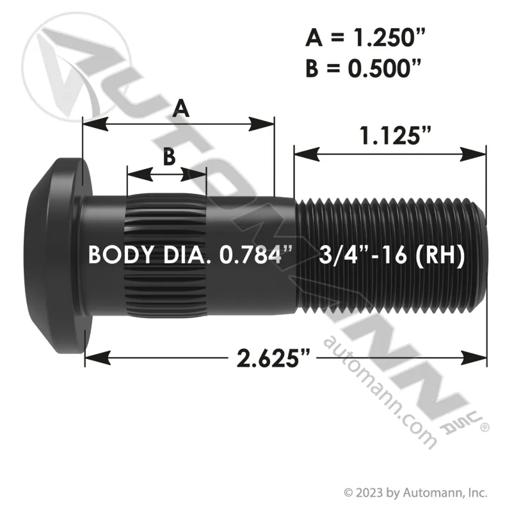

Serrated Stud, UHL: 2-5/8 in, Thread: 31/32 in x 3/4-16
#EUCE-4966-R
Specifications
| Application | Used on TK. TKL. RL. TL (also Eaton). With some cast drums on TK. TKL. use E-4968-R/L. Used on RN. RQ. TKN. |
| Body Diameter | 25/32 in (1.99 cm) |
| Body Length | 1-1/4 in (3.18 cm) |
| Head Diameter | 1-9/32 in (3.26 cm) |
| Head Thickness | 5/16 in (0.8 cm) |
| Length | 2-5/8 in (6.67 cm) |
| Length from Under Head-OAL | 2-5/8 in (6.67 cm) |
| Note | Stepped Body Diameter |
| Right or Left Hand Threads | RH |
| Serration | Serrated |
| Serration Length | 1/2 in (1.27 cm) |
| Thread | 3/4-16 |
| Thread Diameter | 3/4 in (1.91 cm) |
| Thread Length | 31/32 in (2.47 cm) |
| Type | Round |
