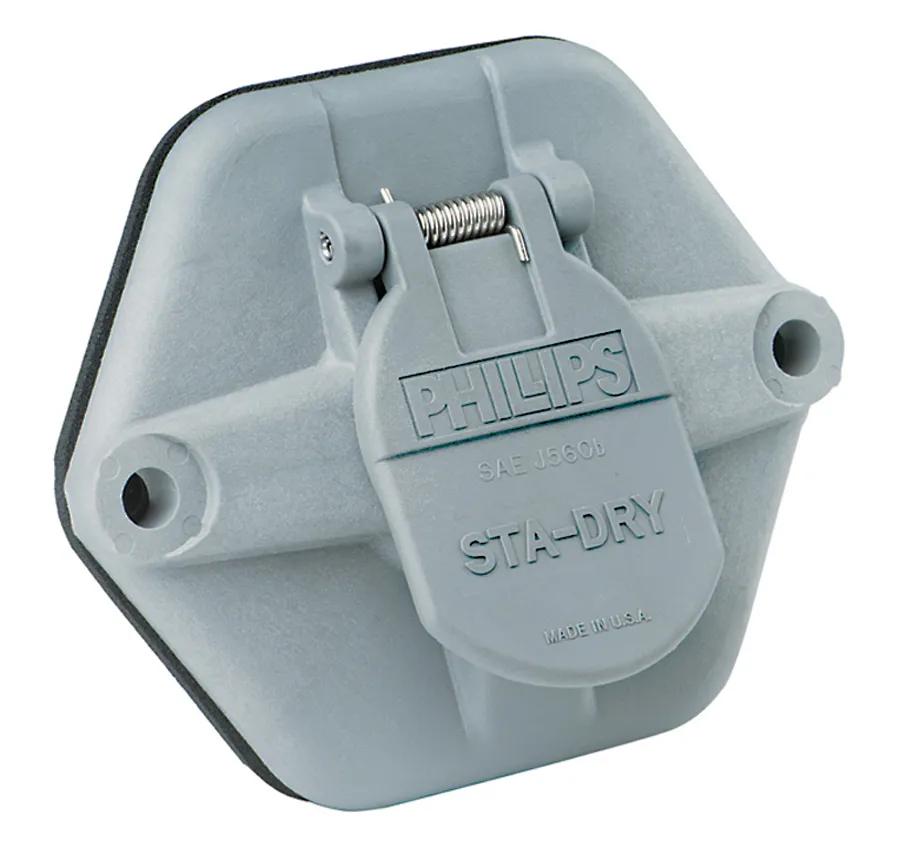

Socketbreaker - STA-DRY - Composite 7 Pin - with 20 Amp Circuit Breakers and Split Pin
#PHI16-762
Product Overview
Inner cavity sealed to prevent contaminants from passing to wire harness. Features stainless steel hinge pin and spring for long life. Circuit breakers can be changed in 30 seconds. Raised interior ribs allow moisture exit. Includes neoprene closed cell sponge mounting gaskets and full-opening lid. Designed for 7-pin connections with 20 amp circuit breakers. Compatible with SAE J560 coiled and straight cables.Socket Breaker, Split Pin, 20 A Current Rating, For SAE J560 Coiled and Straight Cables, 7 Way Function
Features & Benefits
- Allows up to 5 ground circuits
- Full-opening lid
- Includes neoprene closed cell sponge mounting gaskets
- Non-corrosive housing
- Quick-change circuit breakers can be replaced in 30 seconds
- Raised interior ribs for moisture exit
- Sealed to prevent contaminants from passing to wire harness
- Stainless steel hinge pin and spring for long life
- With circuit breaker, without nosebox
- Split pin design
Specifications
| Length | 5-1/8 in |
| Application | 7-pin connections |
| Current Rating | 20 A |
| For Use With | SAE J560 Coiled and Straight Cables |
| Function | 7 Way |
| Height | 4-3/8 in |
| Includes | Receptacle w/ 20 Amp Circuit Breakers, Split Pins |
| Mounting Type | Neoprene closed cell sponge mounting gaskets |
| Type | Split Pin |
| Product Category | Socket Breaker |
| Weight | 0.37 kg (0.8 lb) |
Specifications
| Height | 4-3/8 in (11.13 cm) |
| Includes | Receptacle w/ 20 Amp Circuit Breakers, Split Pins |
Interchanges & Equivalent parts:
| 82950 |
| 16-762PHM |
| 16762-PI |
| 3093485 |
| PHI16762 |
| PHL16762 |
| PHM 16 762 |
| 38213 |
| 670P-7220 |
| 048647900000 |
| 16762 |
| 179.1044 |
| 670P-7220TEC |
| 8498-16762 |
| PH16-762 |
| PHI16-762 |
| PHL16-762 |
| 16-762 |
| SLH34003015 |
