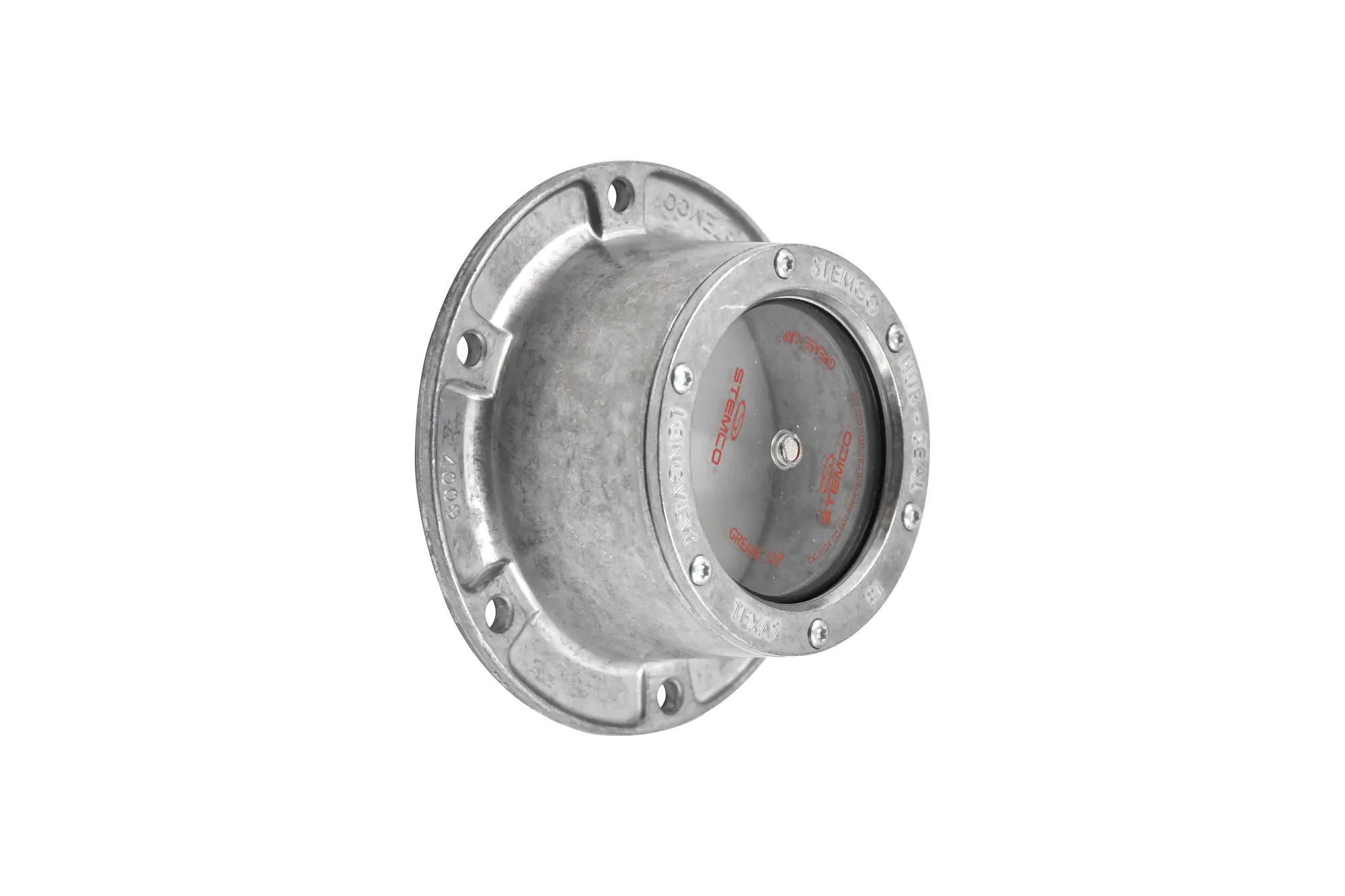

Stemco Trailer Grease Hub Cap with Dirt Exclusion Window and 3009 Gasket, Cast Aluminum, 6 Bolt, 5-1/2 in Bolt Circle
#STM342-4009
Product Overview
For grease applications, the Stemco 342 series dirt exclusion hub caps provide the same 340 casting without a side fill plug, featuring a solid window with a sintered metal vent for venting purposes. To further support grease wheel ends, Stemco developed the 352 series solid aluminum hub caps with a duckbill vent inserted in the face of a solid hub cap.Hub Cap, Dirt Exclusion Grease, Cast Aluminum, 5-1/2 in Bolt Circle Dia, 5/16 in, 4-3/8 in ID, 6 Bolts, 6-1/4 in OD, 2-11/16 in H
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- A Full Line of Components & Repair Parts Are Also Available.
- A Stemco Oil Hub Cap is the Featured Choice of Most Truck & Trailer manufacturers. Available in Many Different Options & Configurations.
- With dirt exclusion window and no side fill plug
Specifications
| Diamètre du cercle de perçage | 5-1/2 po |
| Taille du boulon | 5/16 po |
| Height | 2-11/16 po |
| Inside Depth | 1-15/16 po |
| Material | Moulage en aluminium |
| Note | Avec fenêtre d'exclusion de saleté et sans bouchon de remplissage latéral. |
| Packaging | Boîte |
| Quantity | 1 |
| Type | Graisse à exclusion de saleté |
| VMRS Code | 018003003 |
| Includes | Joint 3009 |
| Inside Diameter | 4-3/8 po |
| Number of Bolts | 6 |
| Outside Diameter | 6-1/4 po |
| Product Category | Cache-moyeu |
Interchanges & Equivalent parts:
| 11-0660 |
| 203-4532 |
| 2034532 |
| STE3424009 |
| MNC203-4532 |
| IMT342-4009 |
| 1331CHR |
| 2500700C1 |
| 28009-V |
| 28010 |
| 342009 |
| 342009BK |
| 3424009 |
| 3424009-ST |
| 7843-3424009 |
| 82009 |
| 85106703 |
| DG6G |
| GLBGT-4009S |
| GT-4009G |
| GT4009S |
| NOS1331 |
| SBR342-4009 |
| SM-342-4009 |
| ST342-4009 |
| STE342-4009 |
| STM 342 4009 |
| STM3424009 |
| STN342-4009 |
| TWD3424009 |
| 1343CHR |
| NOS1343 |
| R64009G |
| ZCP3424009 |
| 3424009I |
| 342-4009 |
