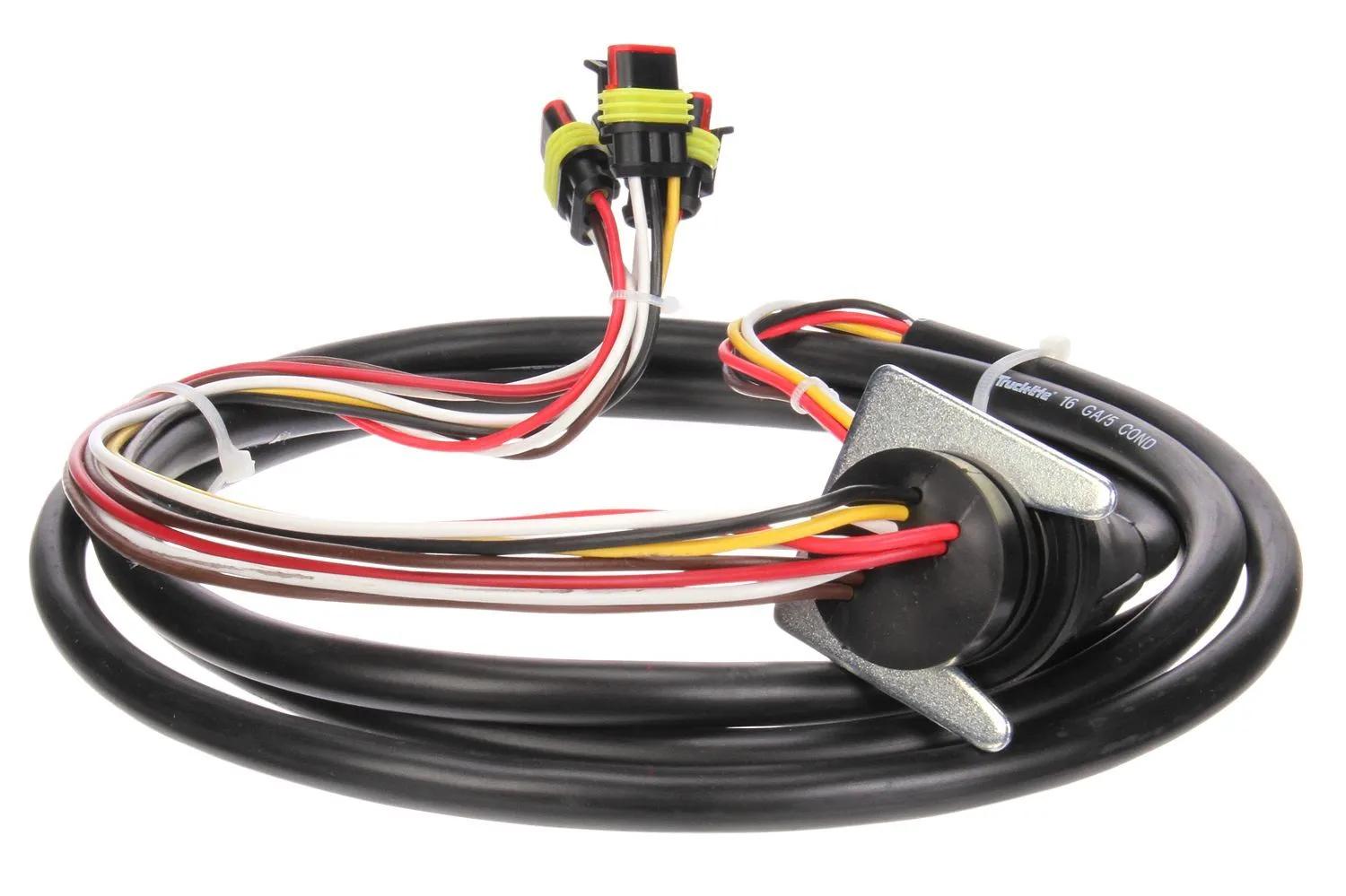

Stop/Tail/Turn Harness, 50 Series, 5 Wires, Le: 8 ft
#TRL51271
Product Overview
50 Series, 3 Plug, LH Side, 96 in. Stop/Turn/Tail Harness, W/ S/T/T Breakout, 16 Gauge, Fit 'N Forget S.S., Ring Terminal
Features & Benefits
- Dimensions ''A'' indicate standard stocked length harness
- A range of custom length harnesses are available in 12'' increments
- Contact Customer Service for lead time and availability
Specifications
| Cable Type | Round |
| Harness Type | Stop, Turn, Tail |
| Kit (Y/N) | No |
| Length | 8 ft (2.44 m) |
| Number of Plugs | 3 |
| Number Of Wires | 5 |
| # of Contacts | 9 |
| Plug Side One | Fit 'N Forget S.S. |
| Plug Side Two | Ring Terminal |
| Position | Left Hand Side |
| Product Type | Stop/Tail/Turn Harness |
| Series | 50 Series |
| VMRS Code | 034-004-222 |
| Volt | 12V & 24V |
| Weight | 2 lb (0.91 kg) |
| Wire Color | Black, Brown, Green, Red, White |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 51271 |
| 3347077 |
| TL51271 |
| TLD51271 |
| TRU51271 |
| 51271TLT |
| 8413-51271 |
| LIT51271 |
| TL 51271 |
| TL 51271 |
