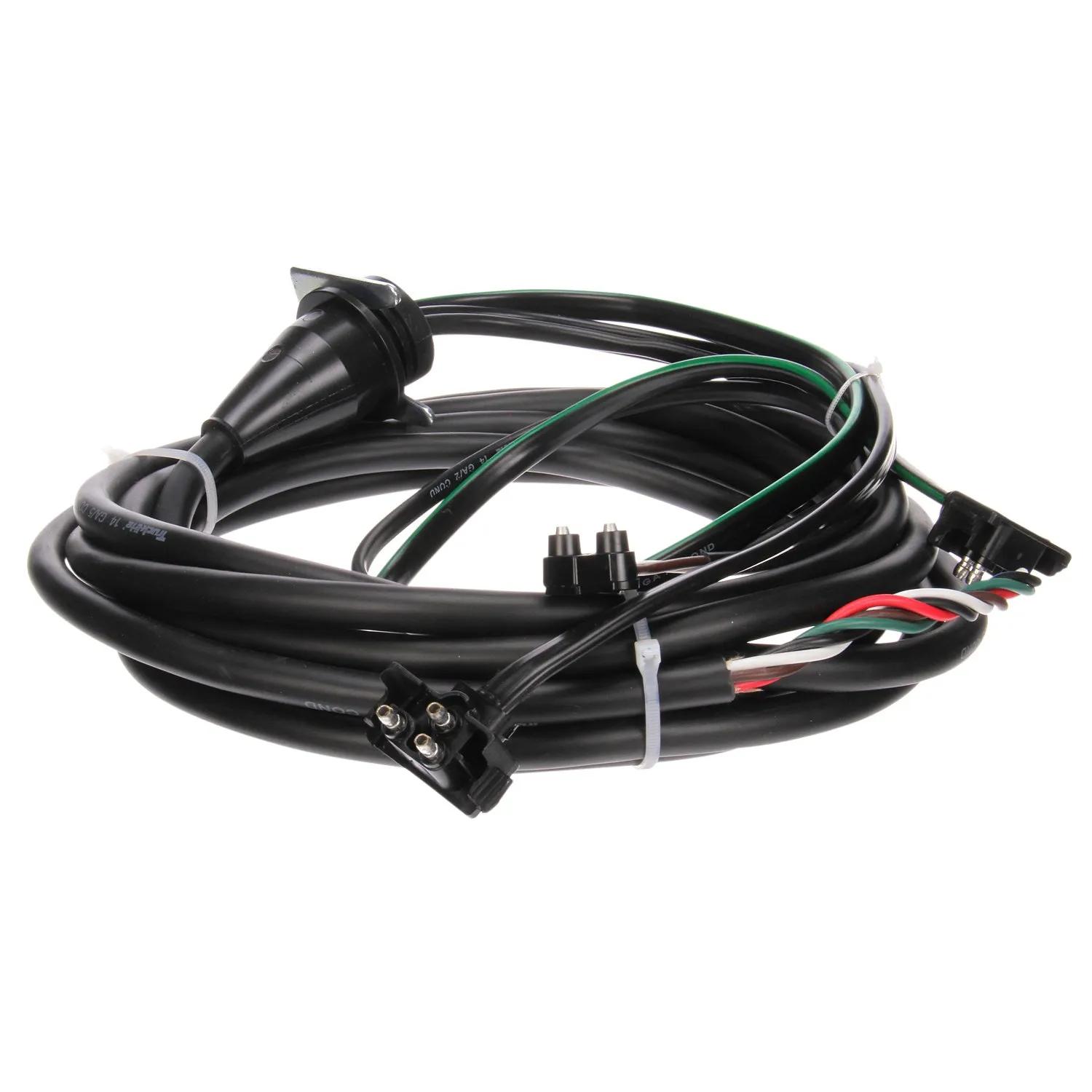

Stop/Tail/Turn Harness, 50 Series, 8 Wires, Le: 15 ft
#TRL50230
Product Overview
50 Series, 3 Plug, RH Side, 180 in. Marker Clearance, Stop/Turn/Tail Harness, W/ S/T/T, M/C Breakout, 14 Gauge, Right Angle PL-3, PL-10, Ring Terminal
Features & Benefits
- Dimension "A" indicates standard stock length harness
- A range of custom length harnesses are available in 12" increments
- Contact customer service for lead time and availability
Specifications
| Cable Type | Round |
| Kit (Y/N) | No |
| Length | 15 ft (4.57 m) |
| Number Of Wires | 8 |
| Plug Side One | PL-3, Female |
| Plug Side Two | Ring Terminal |
| Product Type | Stop/Tail/Turn Harness |
| Series | 50 Series |
| VMRS Code | 034-002-036 |
| Volt | 12V & 24V |
| Weight | 2.7 lb (1.22 kg) |
| Wire Color | Black, Brown, Green, Red, White |
| Wire Gauge | 14 ga |
Specifications
| Harness Type | Marker Clearance |
| Number of Plugs | 3 |
| Position | Right Hand Side |
Interchanges & Equivalent parts:
| 115716034 |
| 50230 |
| 841350230 |
| 93800003 |
| 93800035 |
| HT50600278 |
| TL50230 |
| TLD50230 |
| TWC30141 |
| TRU50230 |
| PA11760 |
| 50230TLT |
| 8413-50230 |
| LIT50230 |
| TKL50230 |
| TL 50230 |
| TL 50230 |
