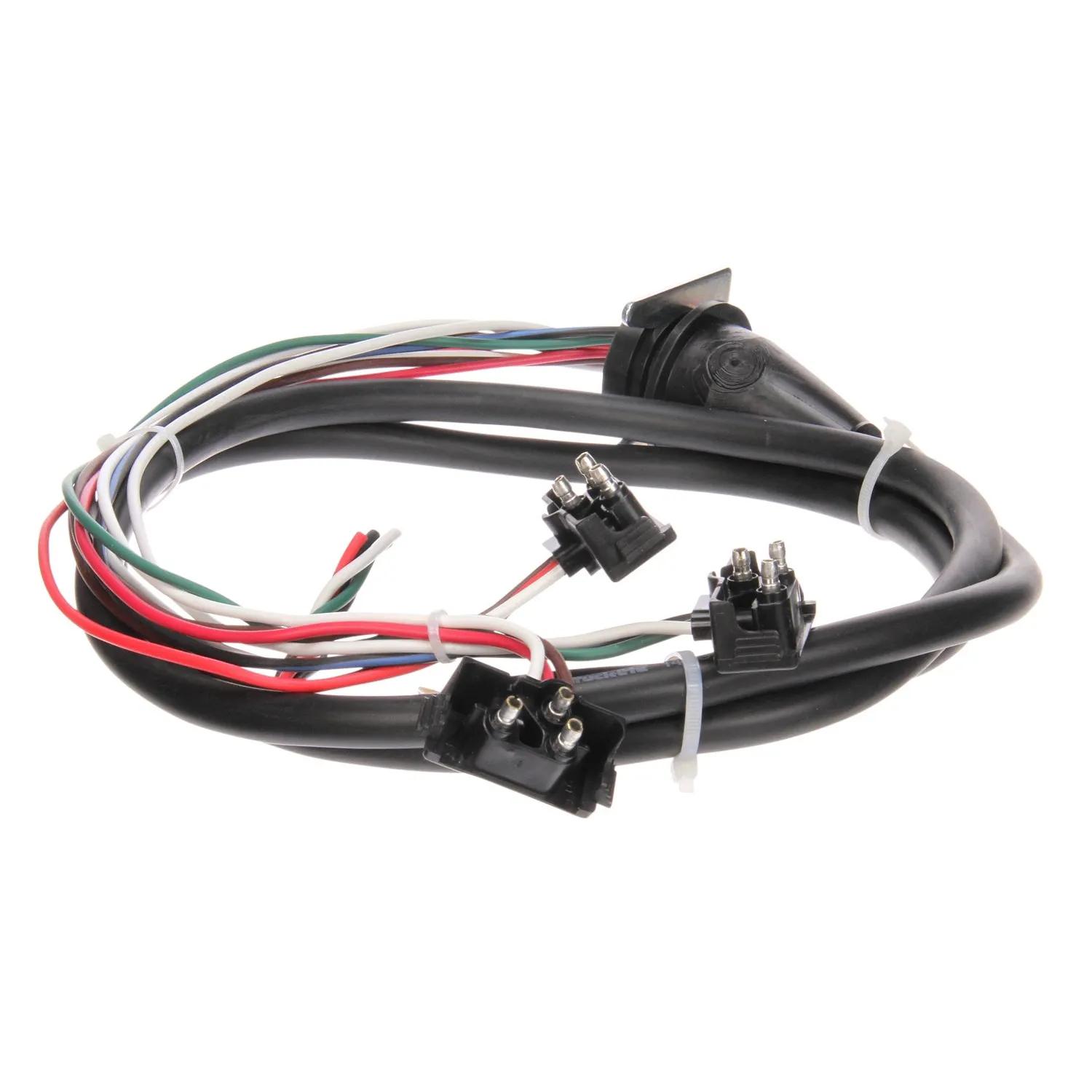

Stop/Tail/Turn Harness, 50 Series, 9 Wires, Le: 72 in
#TRL50204
Product Overview
50 Series, 3 Plug, RH Side, 72 in. Stop/Turn/Tail, Back-Up Harness, W/ S/T/T Breakout, 14 Gauge, Right Angle PL-3, Blunt Cut
Features & Benefits
- Dimensions ''A'' indicate standard stocked length harness
- A range of custom length harnesses are available in 12'' increments
- Contact Customer Service for lead time and availability
Specifications
| Cable Type | Round |
| Kit (Y/N) | No |
| Length | 72 in (182.88 cm) |
| Number Of Wires | 9 |
| Plug Side One | PL-3, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Stop/Tail/Turn Harness |
| Series | 50 Series |
| VMRS Code | 034-002-036 |
| Volt | 12V & 24V |
| Weight | 2 lb (0.91 kg) |
| Wire Color | Black, Brown, Green, Red, White |
| Wire Gauge | 14 ga |
Specifications
| Harness Type | Stop, Turn, Tail, Back-Up |
| Number of Plugs | 3 |
| Position | Right Hand Side |
Interchanges & Equivalent parts:
| 5350520420 |
| 769156 |
| 76915699 |
| 50204 |
| 5041494 |
| 841350204 |
| NL3069PS |
| TKG075121 |
| HT50601090 |
| TL50204 |
| TLD50204 |
| MTL070562 |
| TRU50204 |
| 8413-50204 |
| LIT50204 |
| TKL50204 |
| TL 50204 |
| TL 50204 |
| PA11528 |
