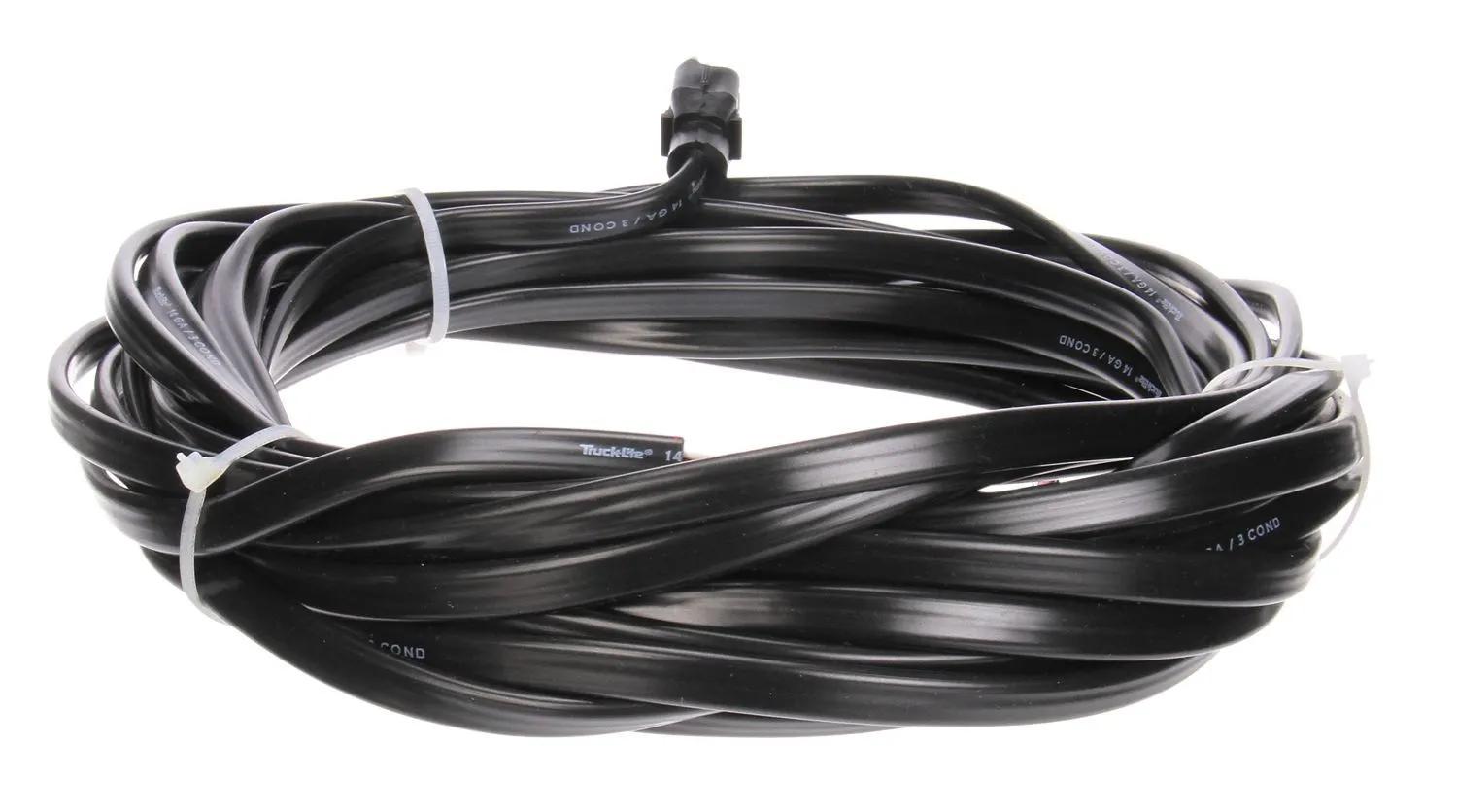

Stop/Tail/Turn Harness, 50 Series, Le: 38 ft
#TRL50338
Product Overview
50 Series, 1 Plug, 456 in. Stop/Turn/Tail Harness, 14 Gauge, Straight PL-3, Blunt Cut
Features & Benefits
- Dimensions ''A'' indicate standard stocked length harness
- A range of custom length harnesses are available in 12'' increments
- Contact Customer Service for lead time and availability
Specifications
| Cable Type | Flat |
| Harness Type | Stop, Turn, Tail |
| Kit (Y/N) | No |
| Length | 38 ft (11.58 m) |
| Number of Plugs | 1 |
| Plug Side One | PL-3, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Stop/Tail/Turn Harness |
| Series | 50 Series |
| VMRS Code | 034-006-025 |
| Volt | 12V & 24V |
| Weight | 3 lb (1.36 kg) |
| Wire Color | Black, Red, White |
| Wire Gauge | 14 ga |
Interchanges & Equivalent parts:
| 1004717 |
| 769345 |
| 76934599 |
| 50338 |
| 703050039 |
| HT50600832 |
| TL50338 |
| TLD50338 |
| 50338TLT |
| 55620330 |
| 8413-50338 |
| LIT50338 |
| TL 50338 |
| TL 50338 |
| TRU50338 |
| TLP20971 |
