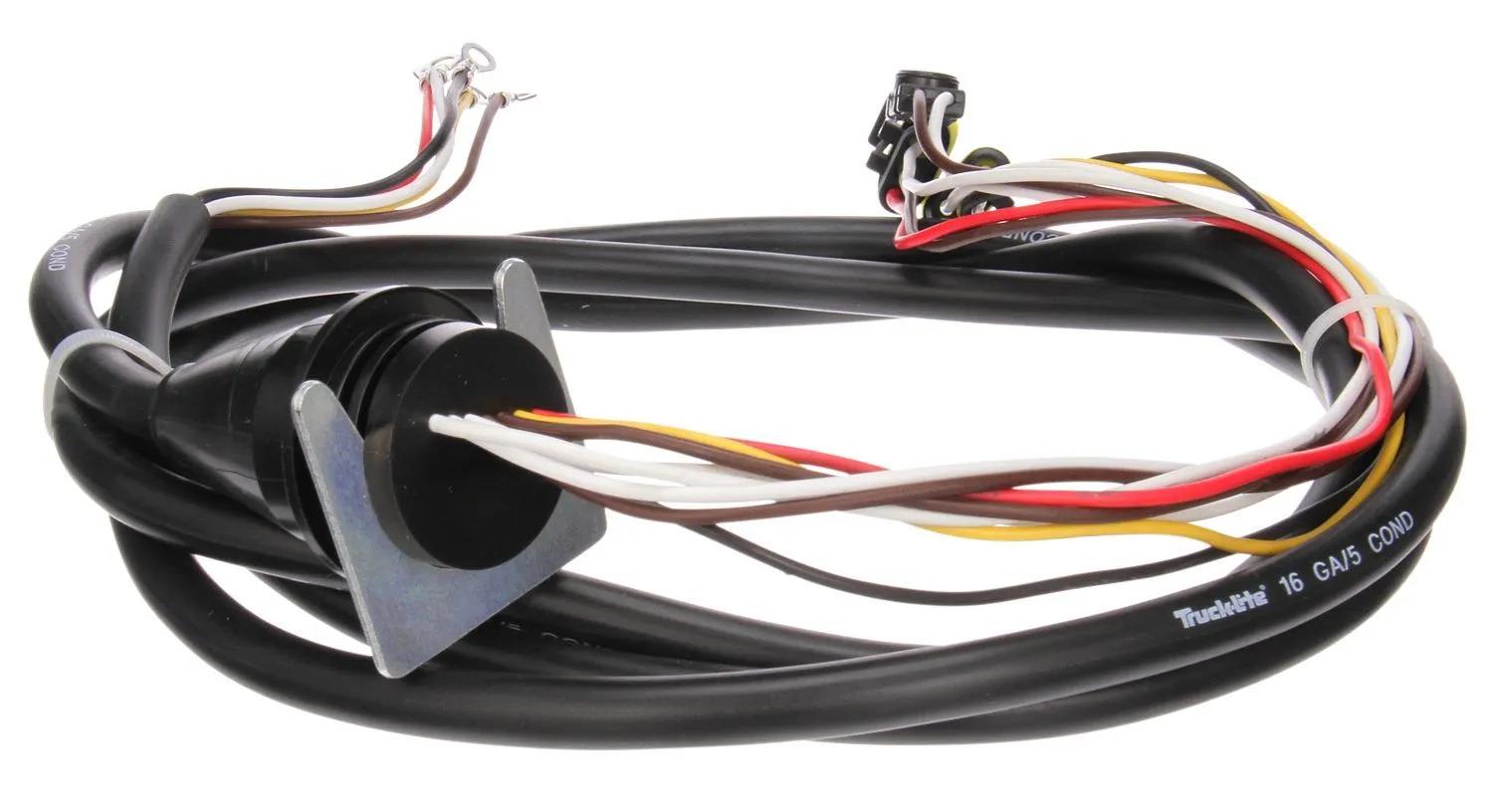

Stop/Tail/Turn Harness, 50 Series, Le: 8 ft
#TRL50243
Product Overview
50 Series, 3 Plug, LH Side, 96 in. Marker Clearance, Stop/Turn/Tail Harness, W/ S/T/T, M/C Breakout, 16 Gauge, Fit 'N Forget S.S., Fit 'N Forget M/C, Ring Terminal
Features & Benefits
- Dimensions ''A'' indicate standard stocked length harness
- A range of custom harnesses are available in 12'' increments
- Contact Customer Service for lead time and availability
Specifications
| Cable Type | Round |
| Harness Type | Marker Clearance |
| Kit (Y/N) | No |
| Length | 8 ft (2.44 m) |
| Number of Plugs | 3 |
| # of Contacts | 5 |
| Plug Side One | Fit 'N Forget M/C |
| Plug Side Two | Ring Terminal |
| Position | Left Hand Side |
| Product Type | Stop/Tail/Turn Harness |
| Series | 50 Series |
| VMRS Code | 034-002-036 |
| Volt | 12V & 24V |
| Weight | 2 lb (0.91 kg) |
| Wire Color | Black, Brown, Green, Red, White |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 4193843 |
| 811001432 |
| 841350243 |
| 703050282 |
| 93800224 |
| 9905010036 |
| 6703110 |
| 90293641 |
| HT50601179 |
| TL50243 |
| TLD50243 |
| TRU50243 |
| 50243 |
| 8413-50243 |
| LIT50243 |
| TL 50243 |
| TL 50243 |
