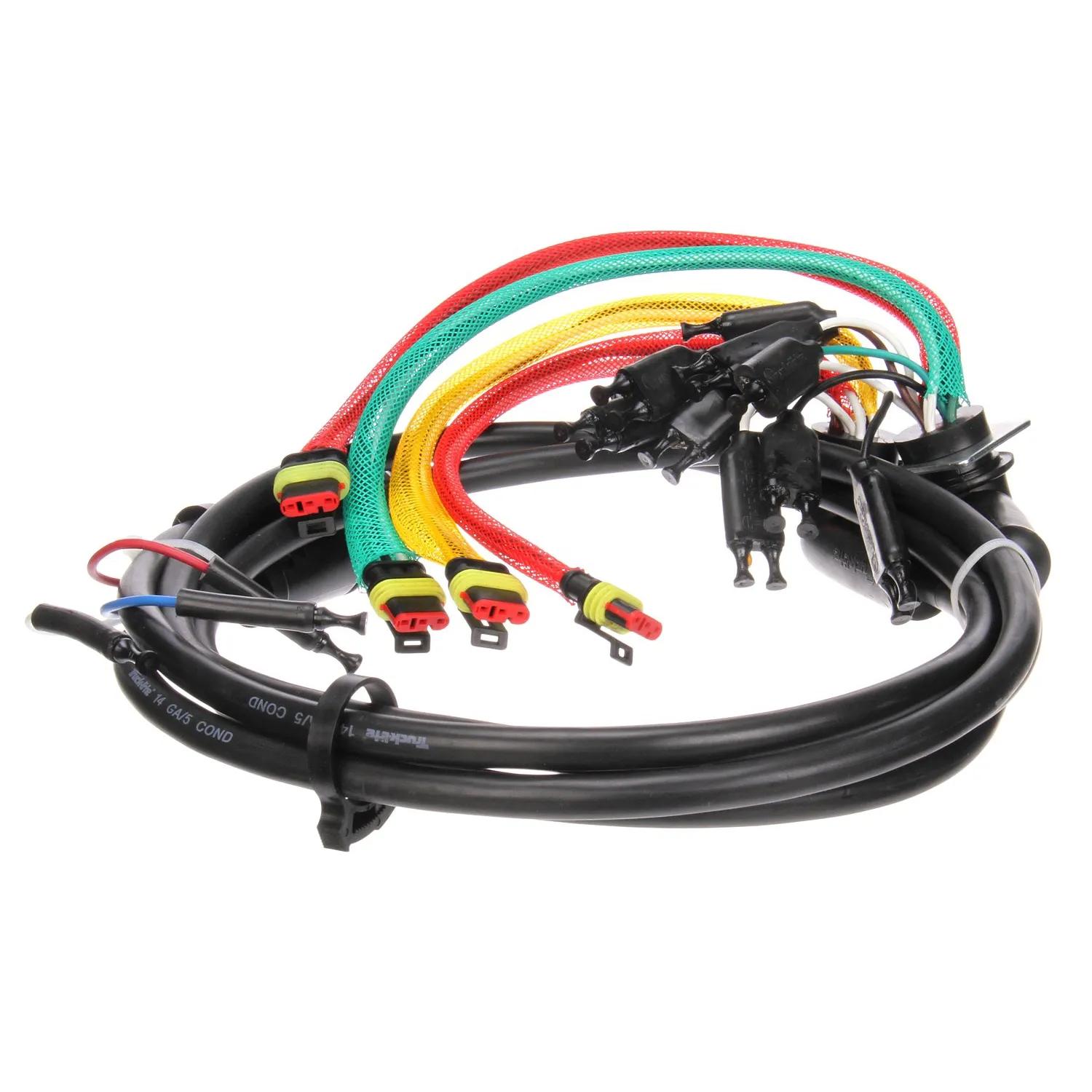

Harnais d'arrêt/clignotant, série 88, 13 fils, Lo: 55 po
#TRL88931
Sommaire du produit
Série 88, prise 14, arrière, permis de 55 po, faisceau d'arrêt/de rotation/queue, W/S/T/T, M/C, auxiliaire, sortie de queue, calibre 14, prise mâle à 7 pôles, angle droit PL-3 , Balle femelle .180
Caractéristiques et avantages
- Ideal for maintaining electrical integrity in rear sill light systems
- Designed for optimal functionality in automotive lighting applications
- Internal ground enhances reliability for consistent electrical performance
- LED rear sill light harness features a sealed design for enhanced durability
- Eliminates the need for junction boxes simplifying installation requirements
- Plug-together design ensures solid electrical contact for reliable performance
Spécifications
| Cable Type | Round |
| Harness Type | License |
| Kit (Y/N) | No |
| Length | 55 in (139.7 cm) |
| Number of Plugs | 14 |
| Number Of Wires | 13 |
| Plug Side One | Male Pole Plug |
| Plug Side Two | PL-3, Female |
| Position | Rear |
| Product Type | Stop/Tail/Turn Harness |
| Series | 88 Series |
| VMRS Code | 034-004-223 |
| Volt | 12V & 24V |
| Weight | 2.5 lb (1.13 kg) |
| Wire Color | Black, Blue, Brown, Green, Red, Yellow, White |
| Wire Gauge | 14 ga |
Interchanges et pièces équivalentes:
| 482867 |
| 10013103 |
| 41311232 |
| 4192001 |
| 14401443 |
| 88931 |
| 92179 |
| 841388931 |
| 703051210 |
| 6646269820I821 |
| 50855044 |
| 90293534 |
| HT50601824 |
| TL88931 |
| TLD88931 |
| TRU88931 |
| 8413-88931 |
| 88931TLT |
| LIT88931 |
| TKL88931 |
| TL 88931 |
| TL 88931 |
