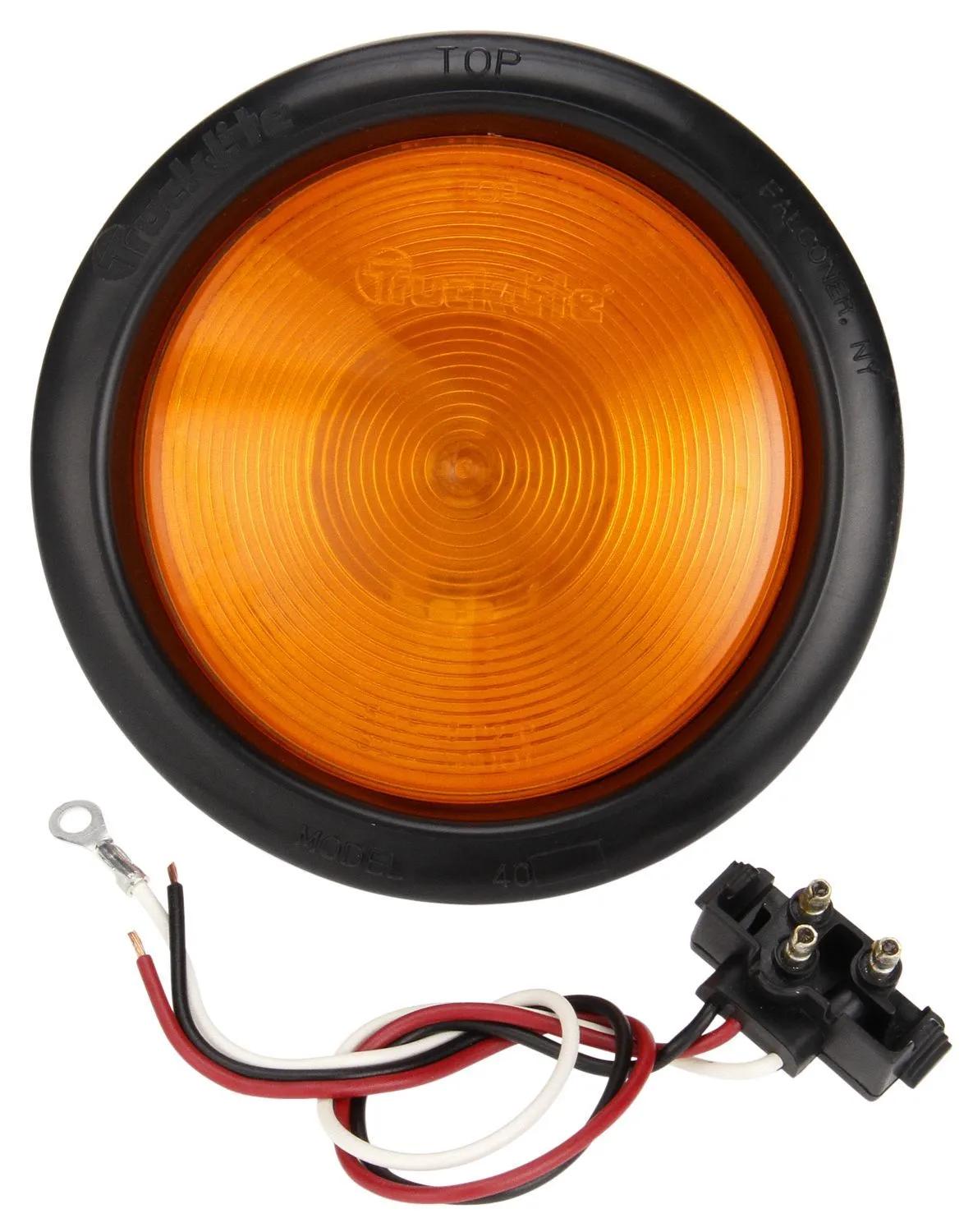

Stop/Tail/Turn Light, Amber & Yellow, Round
#TRL40028Y
Product Overview
40 Economy, Incandescent, Yellow Round, 1 Bulb, Front/Park/Turn, Black PVC, Grommet Mount, 12V, PL-3, Stripped End/Ring Terminal, Kit
Features & Benefits
- Grommet kit features flush mounting in a 4 1/2" hole
- Flange kits feature a high impact plastic affixed to lamp
- 8 square inch (illuminating) stop/turn lens area for vehicles under 80 inches wide
Specifications
| Color | Amber |
| Common Size | 4 in (10.16 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 2-3/32 in (5.31 cm) |
| Diamond Shell (Y/N) | No |
| Height | 4-19/64 in (10.92 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 4-19/64 in (10.92 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-3, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Series | 40 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 4-19/64 in (10.92 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 426KA |
| 426KR |
| 841340028Y |
| 40028Y |
| M431KR |
| KT3405A |
| TL40028Y |
| TLD40028Y |
| 530135 |
| 8413-40028Y |
| LIT40028Y |
| TL 40028Y |
| M431KA |
| 53013 |
| 530133 |
| 53013-3 |
