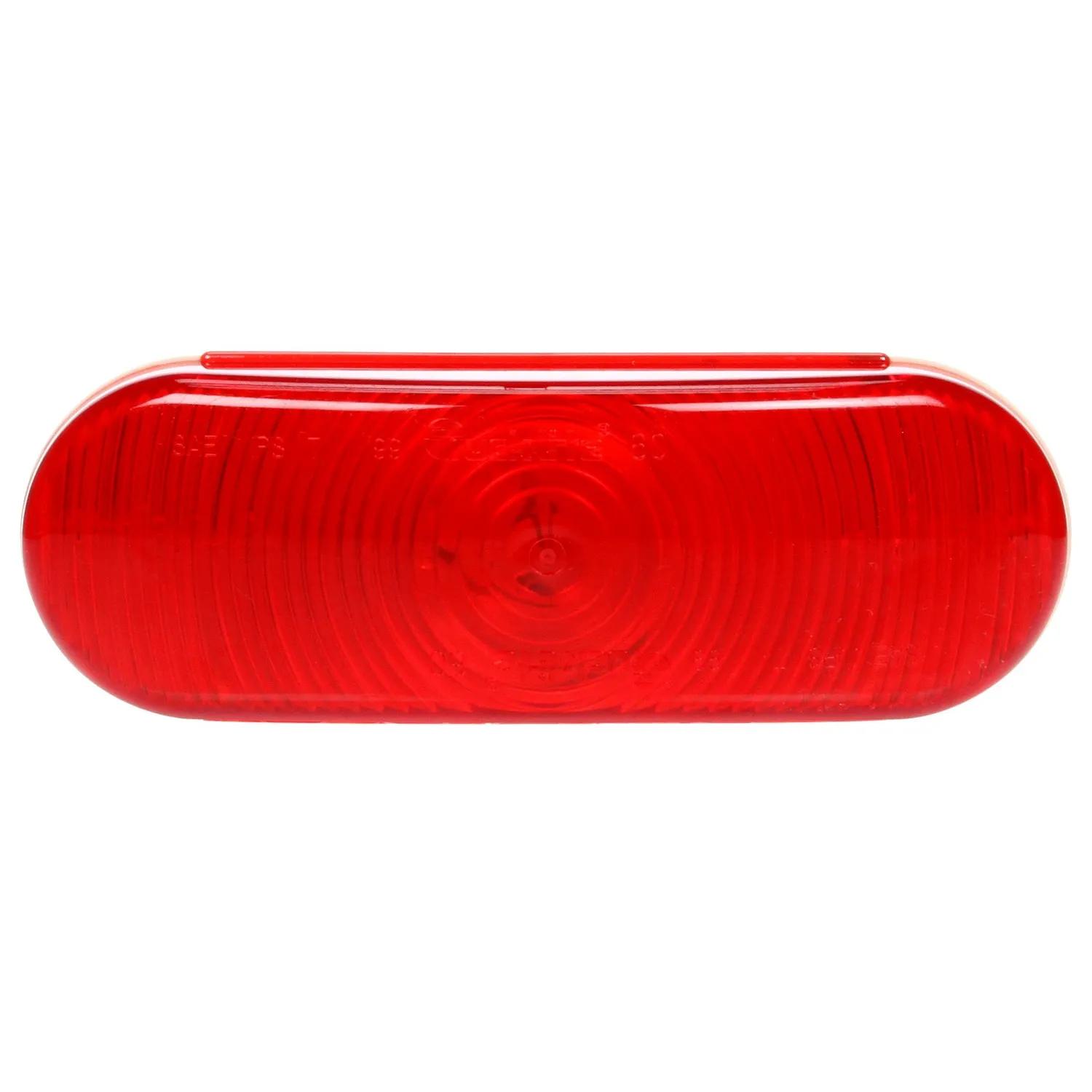

Stop/Tail/Turn Light, Red, Oval
#TRL60083R
Product Overview
60 Economy, Incandescent, Red, Oval, 1 Bulb, Stop/Turn/Tail, Black Grommet Mount, PL-3, Stripped End/Ring Terminal, 12V, Kit
Features & Benefits
- Contains a heavy-duty dual filament bulb
- Mounts horizontally or vertically
Specifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 2-5/32 in (5.49 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-17/64 in (5.77 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 7-37/64 in (19.25 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-3, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 60 Series |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-041 |
| Volt | 12V |
| Width | 6-1/2 in (16.51 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 421KR |
| 60083R |
| 223 |
| 395 |
| 841360083R |
| KT3260R |
| HT50602698 |
| TL60083R |
| TLD60083R |
| E70225 |
| 130853350 |
| TRU60083R |
| 8413-60083R |
| LIT60083R |
| TL 60083R |
| TL 60083R |
| LT60KR |
| 53092 |
| TG53092 |
| ST70RK |
