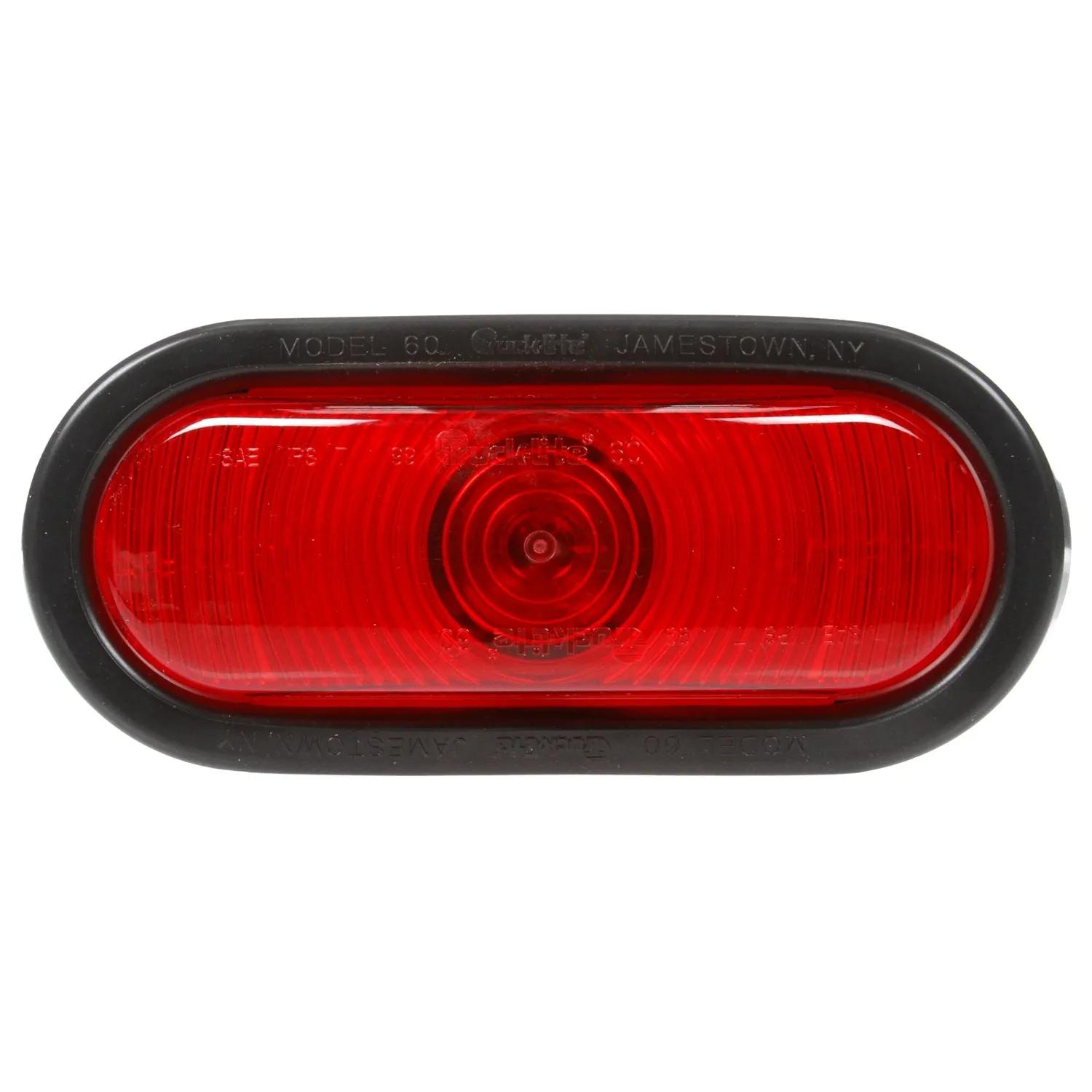

Stop/Tail/Turn Light, Red, Oval
#TRL60340R
Product Overview
60 Series, Incandescent, Red, Oval, 1 Bulb, Stop/Turn/Tail, Black Grommet Mount, Hardwired, Stripped End/Ring Terminal, 12V, Kit
Features & Benefits
- Enhances accessibility for quick bulb changes
- Designed to fit standard automotive bulb sizes
- Compatible with various lamp and signal applications
- Cams-out feature simplifies the process of changing bulbs
- Constructed for reliable performance in automotive lighting
- Universal bulb replaceable socket assembly designed for easy bulb replacement
Specifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 1-53/64 in (4.65 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-5/16 in (5.87 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 6-17/32 in (16.59 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 60 Series |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 6-17/32 in (16.59 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 5121288003 |
| 370975 |
| 1021563 |
| 60340R |
| BE010573 |
| 841360340R |
| G1003811 |
| HT50602684 |
| TL60340R |
| TLD60340R |
| TRU60340R |
| 8413-60340R |
| LIT60340R |
| TL 60340R |
| TL 60340R |
| 1150876 |
| 2436 |
