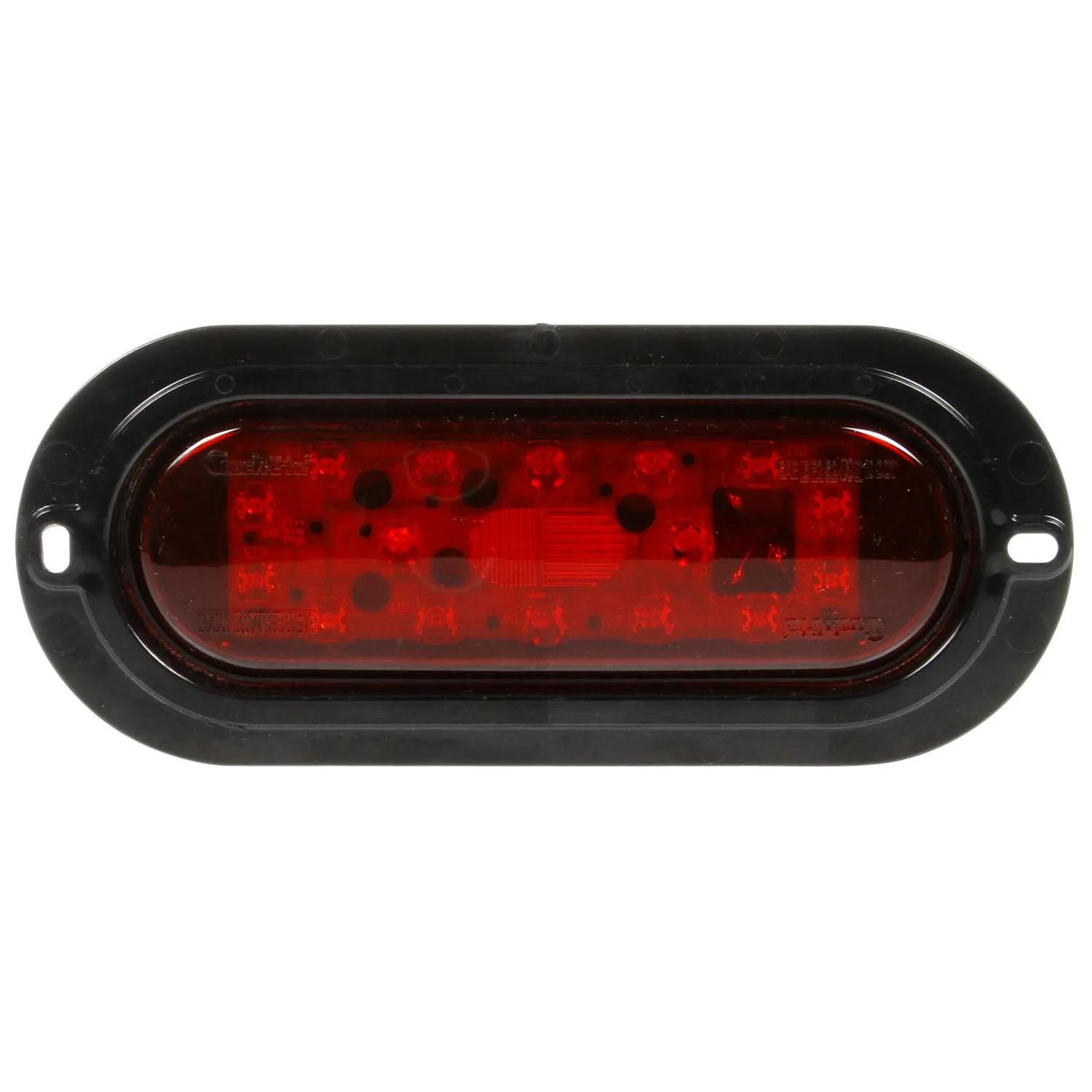

Stop/Tail/Turn Light, Red, Oval
#TRL60356R
Product Overview
60 Series, LED, Red, Oval, 18 Diode, Stop/Turn/Tail, Black Flange Mount, PL-3, 12V
Features & Benefits
- Features a PL-3 connector
- Ideal for vehicles featuring liftgates
- Shallow curved lens profile allows for flush mounting in applications where space is at a premium
- High quality construction
- Wide range of applications
- Wide variety of lighting products
Specifications
| Color | Red |
| Common Size | 2 in |
| Contents | 60 Series LED Integral Flange S/T/T Lamp, PL3 Connector |
| Current Major | 0.36 amp |
| Current Minor | 0.07 amp |
| Depth | 1-21/32 in |
| Diamond Shell (Y/N) | No |
| Height | 3-19/64 in |
| Housing Color | Black |
| Kit (Y/N) | No |
| Length | 7-7/8 in |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number Of Wires | 2 |
| Reflectorized (Y/N) | No |
| Series | 60 Series |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-003-057 |
| Volt | 12V |
| Width | 7-7/8 in |
| Wire Length | 6 in |
Interchanges & Equivalent parts:
| 60356R |
| STL72RB |
| TKL60356R |
| 52962 |
| V423KR |
| A6815440403 |
