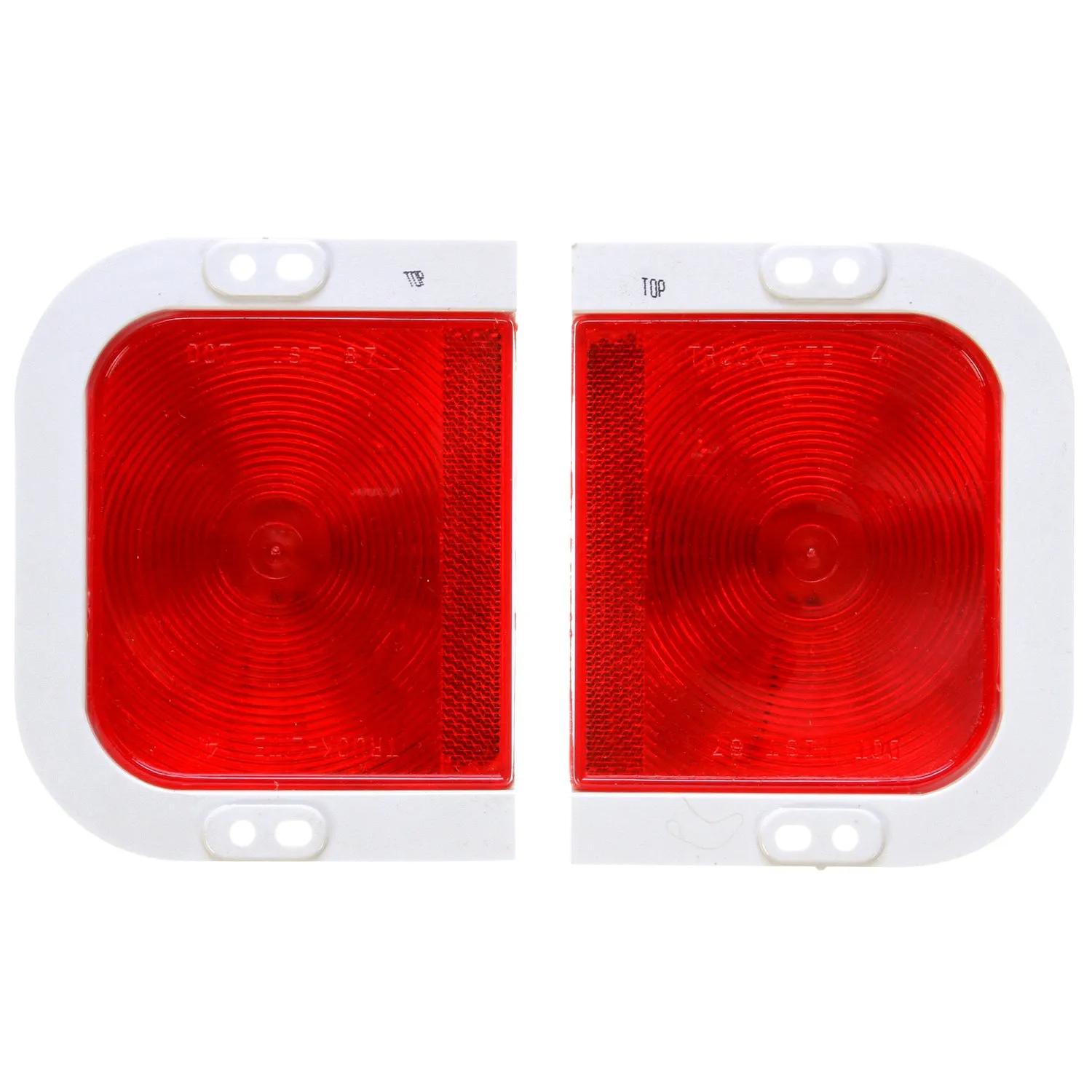

Stop/Tail/Turn Light, Red, Rectangular
#TRL41005R
Product Overview
41 Series, Left Hand Side, Incandescent, Red, Rectangular, 1 Bulb, Stop/Turn/Tail, White Flange Mount, PL-3, Ring Terminal/Molded Four-Position .180, 12V, Kit
Features & Benefits
- Mounts in 783"
- x 443"
- hole
- Requires separate reflector to meet legal requirements
Specifications
| Couleur | Rouge |
| Taille commune | 3 po (7,62 cm) |
| Major actuel | 2,1 amp |
| Mineure actuelle | 0,48 amp |
| Profondeur | 1-51/64 po (4,57 cm) |
| Coquille de diamant (O/N) | Non |
| Hauteur | 5-13/32 po (13,74 cm) |
| Couleur du boîtier | Blanc |
| Trousse (O/N) | Oui |
| Longueur | 8-51/64 po (22,35 cm) |
| Matériau de la lentille | Polycarbonate |
| Matériel | Polycarbonate |
| Type de support | Montage par vis |
| Nombre de câbles | 4 |
| Fiche #1 | PL-3 |
| Fiche #2 | Balle .180 |
| Réfléchissant (O/N) | Non |
| Séries | Série 41 |
| Forme | Rectangle |
| Standard | FMVSS 108, NSVAC 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 8-51/64 po (22,35 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 430L |
| 841341005R |
| 705091 |
| 70509199 |
| HT50602648 |
| TL41005R |
| TLD41005R |
| TRU41005R |
| MTL04100500R |
| MTL070546 |
| 41005R |
| 1663 |
| 430PL |
| 55620285 |
| 8413-41005R |
| LIT41005R |
| PM430PL |
| TL 41005R |
| TL 41005R |
| 7033 |
