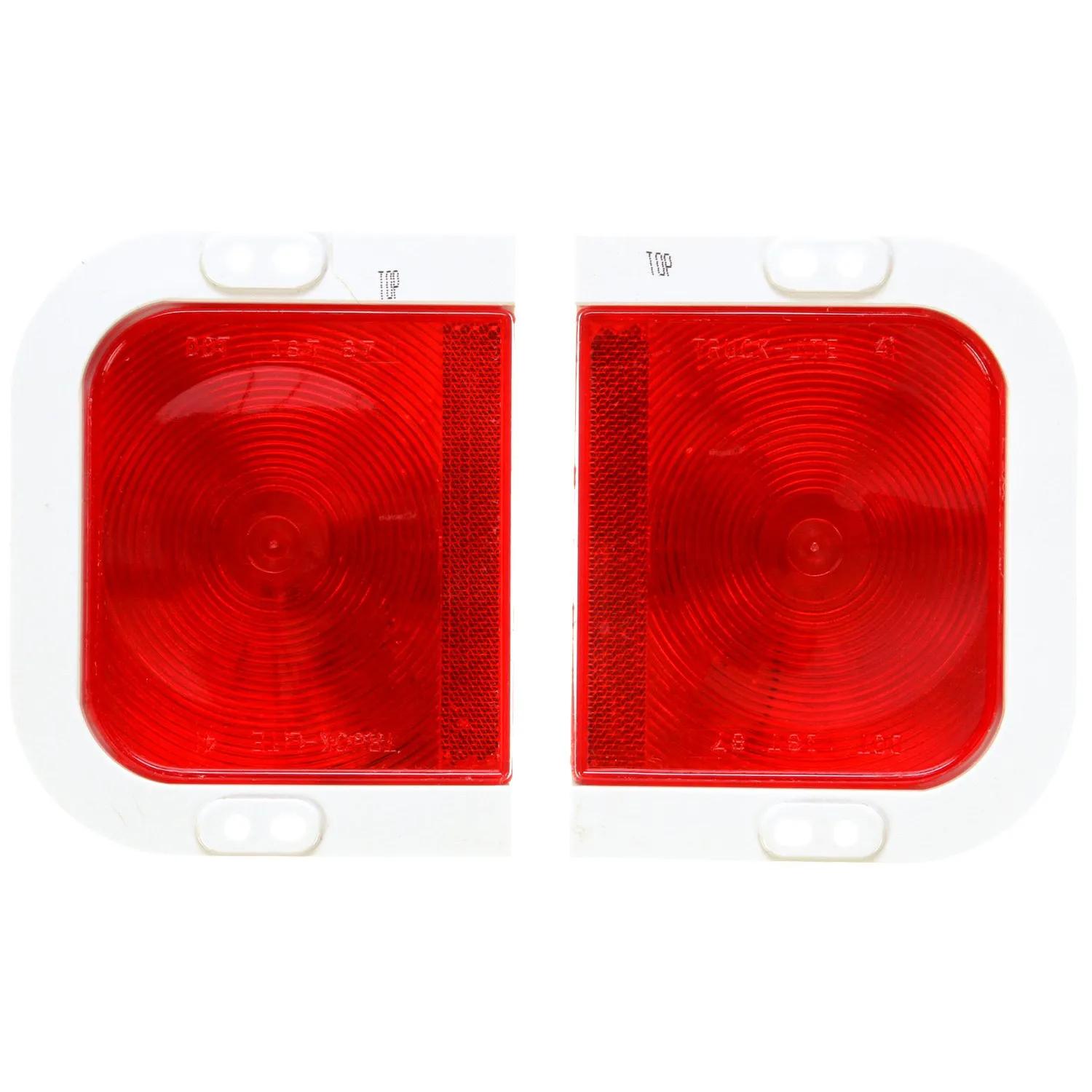

Stop/Tail/Turn Light, Red, Rectangular
#TRL41006R
Product Overview
41 Series, Right Hand Side, Incandescent, Red, Rectangular, 1 Bulb, Stop/Turn/Tail, White Flange Mount, PL-3, Ring Terminal/Molded Four-Position .180, 12V, Kit
Features & Benefits
- Mounts in 783"
- x 443"
- hole
- Requires separate reflector to meet legal requirements
Specifications
| Color | Red |
| Common Size | 3 in (7.62 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 1-51/64 in (4.57 cm) |
| Diamond Shell (Y/N) | No |
| Height | 5-13/32 in (13.74 cm) |
| Housing Color | White |
| Kit (Y/N) | Yes |
| Length | 8-51/64 in (22.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Side Mount |
| Number Of Wires | 4 |
| Plug Side One | PL-3, Female |
| Plug Side Two | .180 Bullet, Standard |
| Reflectorized (Y/N) | No |
| Series | 41 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 8-51/64 in (22.35 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 430R |
| 841341006R |
| 7034 |
| 705092 |
| 70509299 |
| HT50602649 |
| TL41006R |
| TLD41006R |
| TRL41006R |
| TRU41006R |
| MTL070547 |
| 430PR |
| 55620286 |
| 81298 |
| 8413-41006R |
| LIT41006R |
| PM430PR |
| TL 41006R |
| TL 41006R |
| 41006R |
