2 POINTS

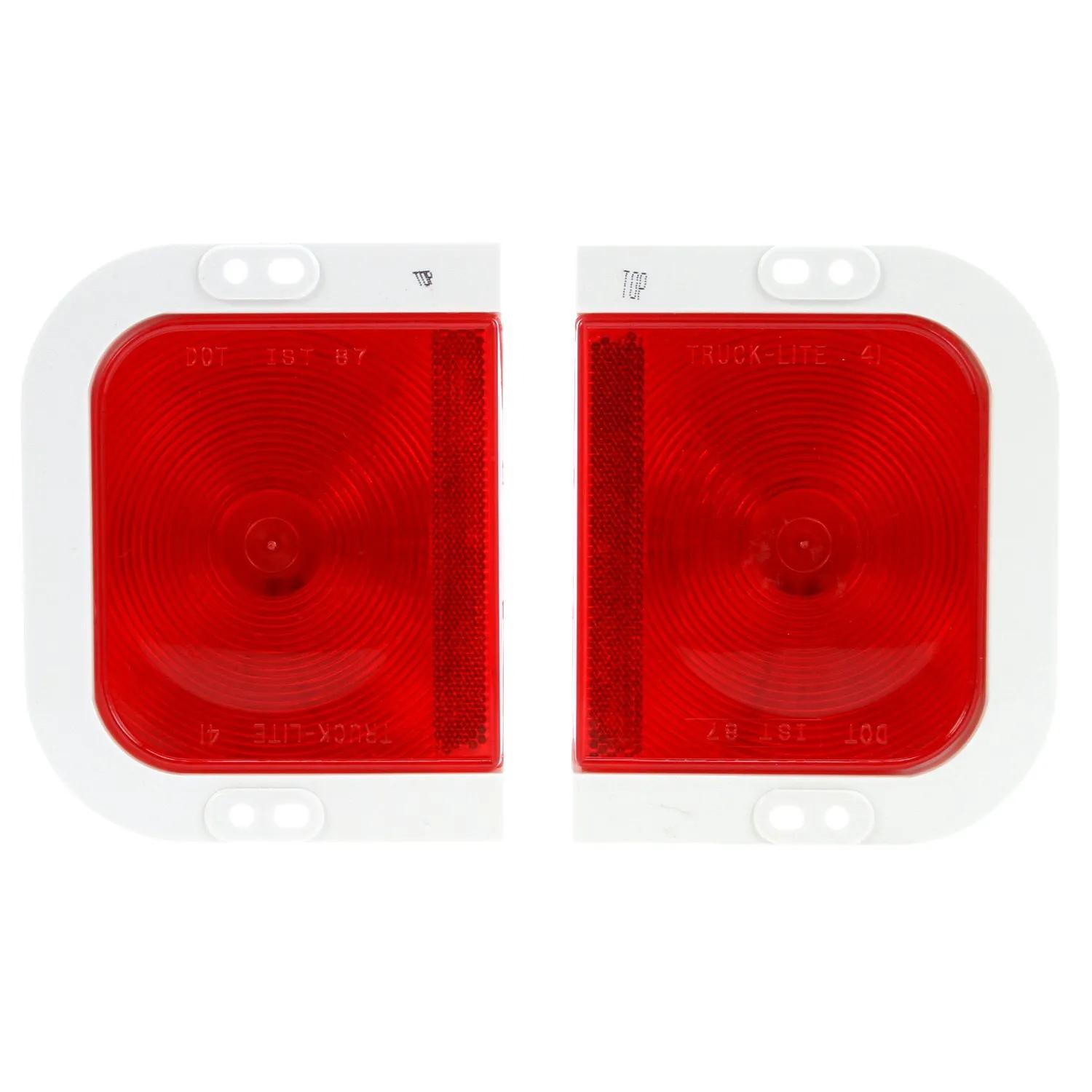

Stop/Tail/Turn Light, Red, Rectangular
#TRL41007R
Product Overview
41 Series, Universal Kit, Incandescent, Red, Rectangular, 1 Bulb, Stop/Turn/Tail, White Flange Mount, PL-3, Stripped End/Ring Terminal, 12V, Kit
Features & Benefits
- Mounts in 783"
- x 443"
- hole
- Requires separate reflector to meet legal requirements
- Wide range of applications
- Wide variety of lighting products
Specifications
| Color | Red |
| Common Size | 3 in |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 1-51/64 in |
| Diamond Shell (Y/N) | No |
| Height | 5-13/32 in |
| Housing Color | White |
| Kit (Y/N) | Yes |
| Length | 8-51/64 in |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Side Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-3, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 41 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 8-51/64 in |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 41007R |
| 3141007R |
| 841341007R |
| 705093 |
| 70509399 |
| 809790 |
| OBI9990000676 |
| HT50602654 |
| TL41007R |
| TLD41007R |
| TRL41007R |
| MTL04100700R |
| MTL070593 |
| 28416 |
| 80979 |
| 8413-41007R |
| LIT41007R |
| PM430L |
| PM430R |
| TL 41007R |
| TL 41007R |
| TRU41007R |
| 430L |
| 430R |
| 7165 |
