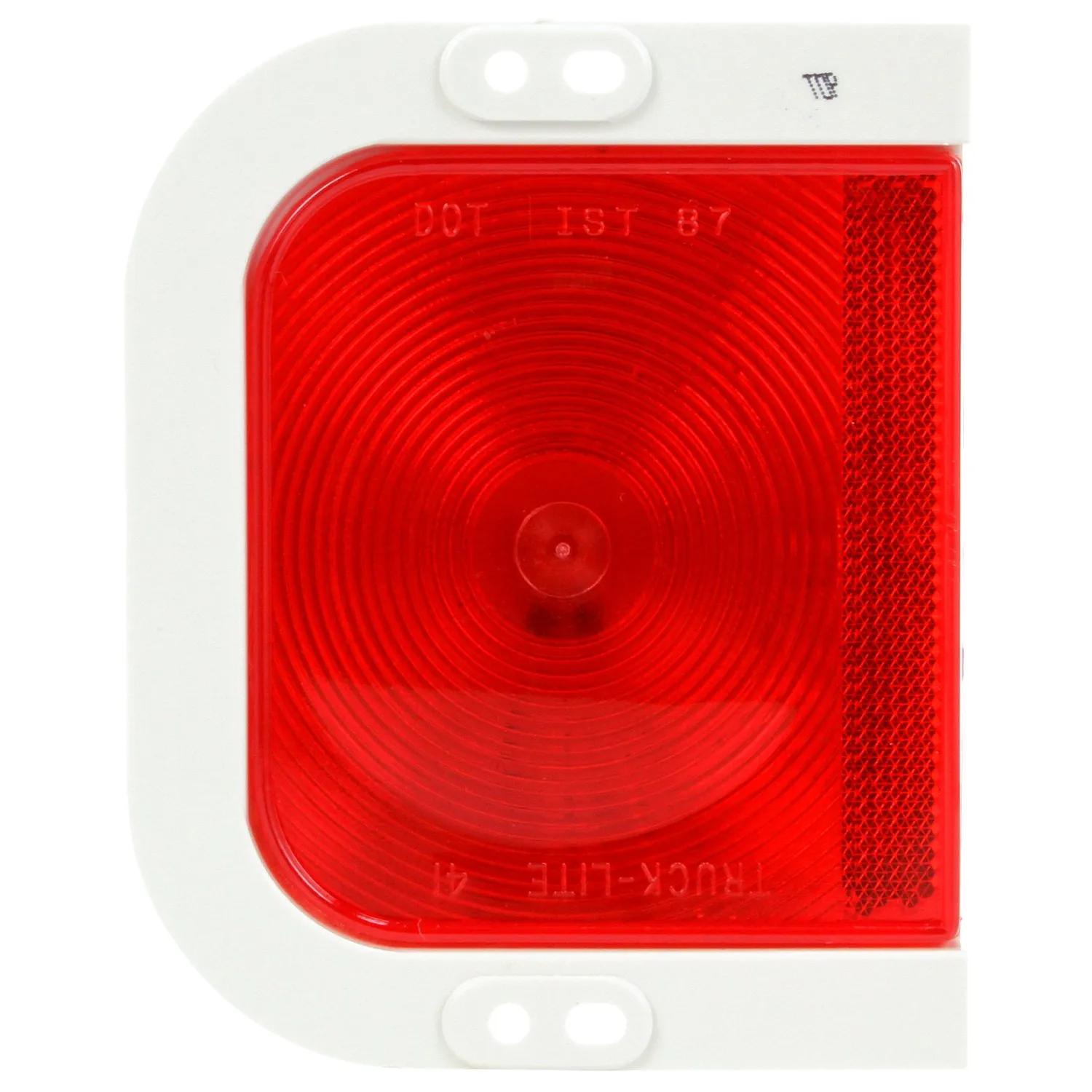

Stop/Tail/Turn Light, Red, Rectangular
#TRL41203R
Product Overview
41 Series, Right Hand Side, Incandescent, Red, Rectangular, 1 Bulb, Stop/Turn/Tail, White Flange Mount, PL-3, 12V
Features & Benefits
- Mounts in 783"
- x 443"
- hole
- Requires separate reflector to meet legal requirements
Specifications
| Color | Red |
| Common Size | 3 in (7.62 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 1-51/64 in (4.57 cm) |
| Diamond Shell (Y/N) | No |
| Height | 5-13/32 in (13.74 cm) |
| Housing Color | White |
| Kit (Y/N) | No |
| Length | 8-51/64 in (22.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Side Mount |
| Number Of Wires | 3 |
| Reflectorized (Y/N) | No |
| Series | 41 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 8-51/64 in (22.35 cm) |
Interchanges & Equivalent parts:
| 51052517 |
| 10009356 |
| 735082 |
| 73508299 |
| 841341203R |
| OBI051052517 |
| PS11947701 |
| HT50602652 |
| TL41203R |
| TRU41203R |
| MTL070595 |
| 41203R |
| 41203R3 |
| 80939 |
| 8413-41203R |
| LIT41203R |
| PM432 |
| TKL41203R |
| TL 41203R |
| TL 41203R |
| TL-41203R |
| TLD41203R |
| TLT 41203R |
| 430L |
| 34002023 |
| 6314757 |
| 10550871 |
