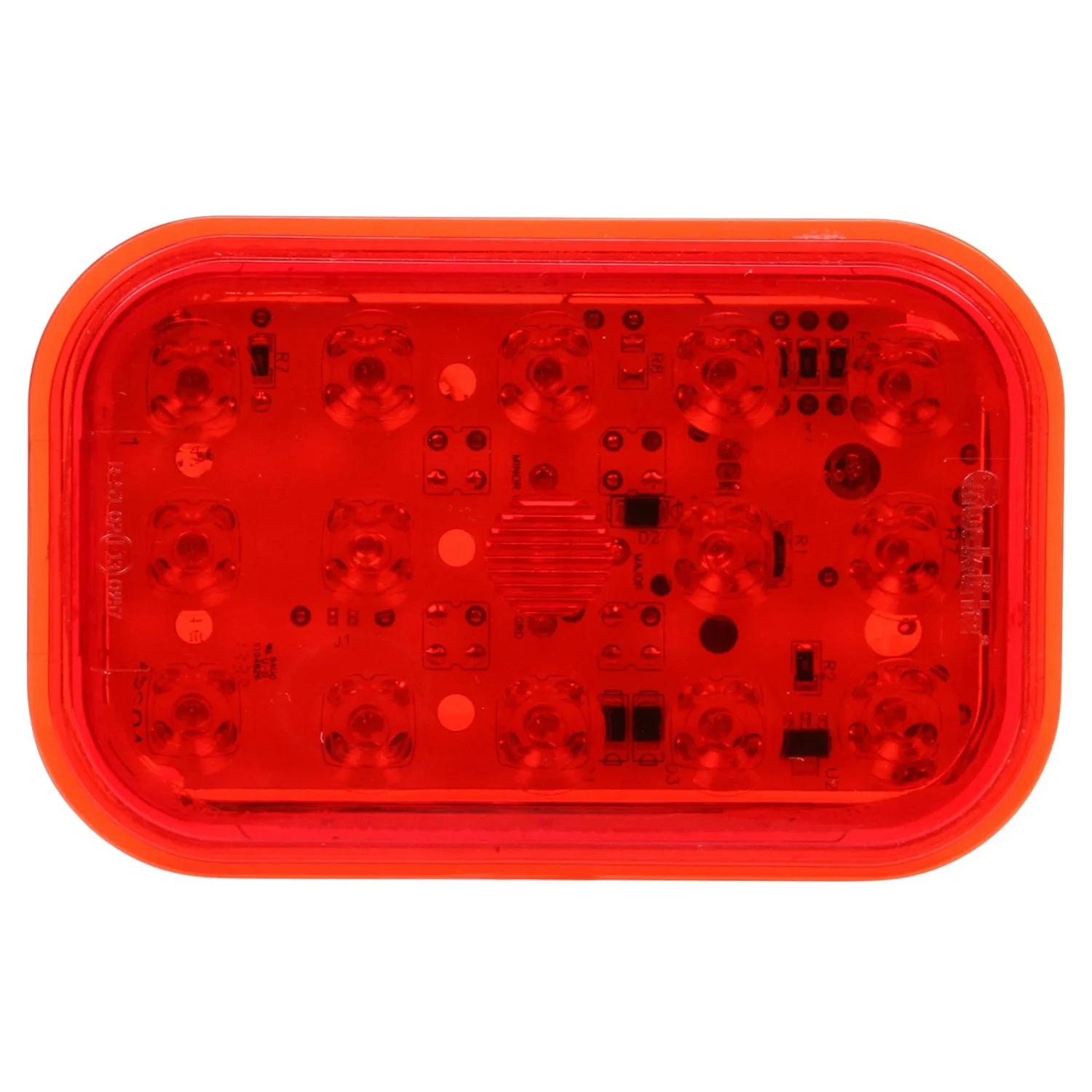

Stop/Tail/Turn Light, Red, Rectangular
#TRL45932R
Product Overview
45 Series, European Approved, LED, Red, Rectangular, 24 Diode, Stop/Turn/Tail, Hardwired, .180 Bullet, 12-24V
Features & Benefits
- Direct pin-to-circuit board solders assure vibration-resistant contacts, ECE-approved for rear position/stop direction indicator and rear fog functions
- Electronics completely sealed in epoxy to resist corrosion and moisture
- High quality construction
- High quality construction
- Wide range of applications
- Wide variety of lighting products
Specifications
| Color | Red |
| Common Size | 3 in |
| Current Major | 0.28 amp |
| Current Minor | 0.03 amp |
| Depth | 1-27/64 in |
| Diamond Shell (Y/N) | No |
| Height | 5-5/16 in |
| Housing Color | Black |
| Kit (Y/N) | No |
| Length | 5-5/16 in |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | .180 Bullet, Standard |
| Reflectorized (Y/N) | No |
| Series | 45 Series |
| Shape | Rectangular |
| Standard | ECE |
| Technology | LED |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-041 |
| Width | 3-13/32 in |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 45932R |
| 841345932R |
| TL45932R |
| TLD45932R |
| 163631013 |
| 8413-45932R |
| LIT45932R |
| TL 45932R |
| TL 45932R |
