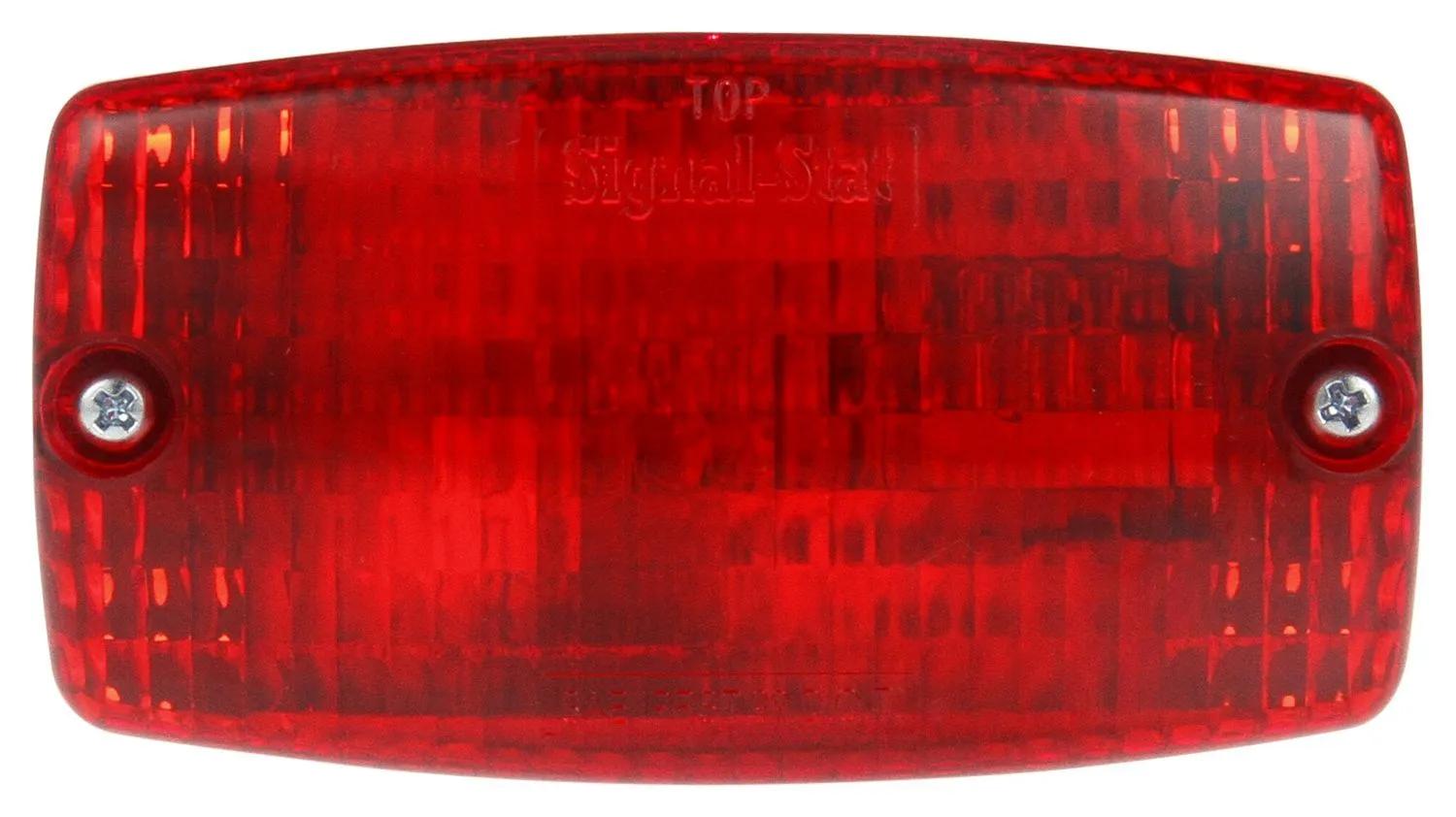

Stop/Tail/Turn Light, Red, Rectangular
#TRL548
Product Overview
Signal-Stat, Incandescent, Red, Rectangular, 1 Bulb, Stop/Turn/Tail, 4 Screw, Hardwired, Stripped end, 12V
Features & Benefits
- Ideal for light duty trailers, golf carts, industrial vehicles
- Polycarbonate lens with pillow optics
- Stamped steel back plate
Specifications
| Color | Red |
| Common Size | 3 in (7.62 cm) |
| Current Major | 2.25 amp |
| Current Minor | 1.42 amp |
| Depth | 1-11/16 in (4.29 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-9/16 in (6.5 cm) |
| Kit (Y/N) | No |
| Lens Material | Polycarbonate |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | Signal-Stat |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-000 |
| Volt | 12V |
| Width | 4-9/16 in (11.58 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 548D |
| 55600 |
| 8413-548 |
| LT1646R |
| TL 548 |
| TLD548 |
| 53132GR0 |
| 548TLT |
