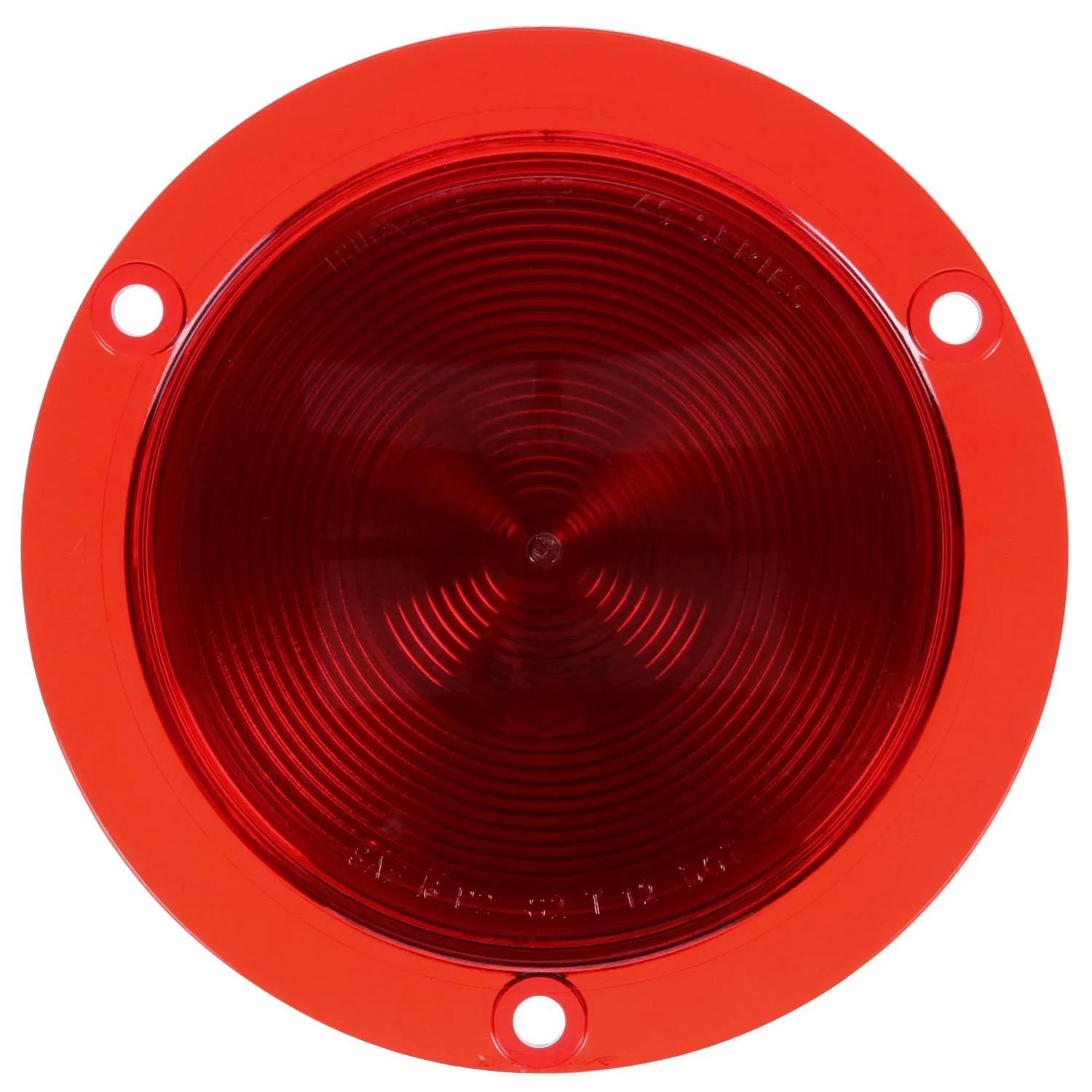

Stop/Tail/Turn Light, Red, Round
#TRL40029R
Product Overview
40 Economy, Incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, Red Flange Mount, PL-3, Stripped End/Ring Terminal, 12V, Kit
Features & Benefits
- Flange kits feature a high impact plastic affixed to lamp
- Grommet kit features flush mounting in a 4-1/2"
- hole
Specifications
| Color | Red |
| Common Size | 4 in (10.16 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 2-3/32 in (5.31 cm) |
| Diamond Shell (Y/N) | No |
| Height | 5-1/2 in (13.97 cm) |
| Housing Color | Red |
| Kit (Y/N) | Yes |
| Length | 4-19/64 in (10.92 cm) |
| Lens Material | Polycarbonate |
| Material | ABS |
| Mount Type | Flange Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-3, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 40 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 5-1/2 in (13.97 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 40029R |
| 67000 |
| HT50602506 |
| TL40029R |
| TLD40029R |
| 40029R3 |
| 53612 |
| 8413-40029R |
| LIT40029R |
| TL 40029R |
| TL 40029R |
| TRU40029R |
| 52692 |
| 526923 |
| 52692-3 |
