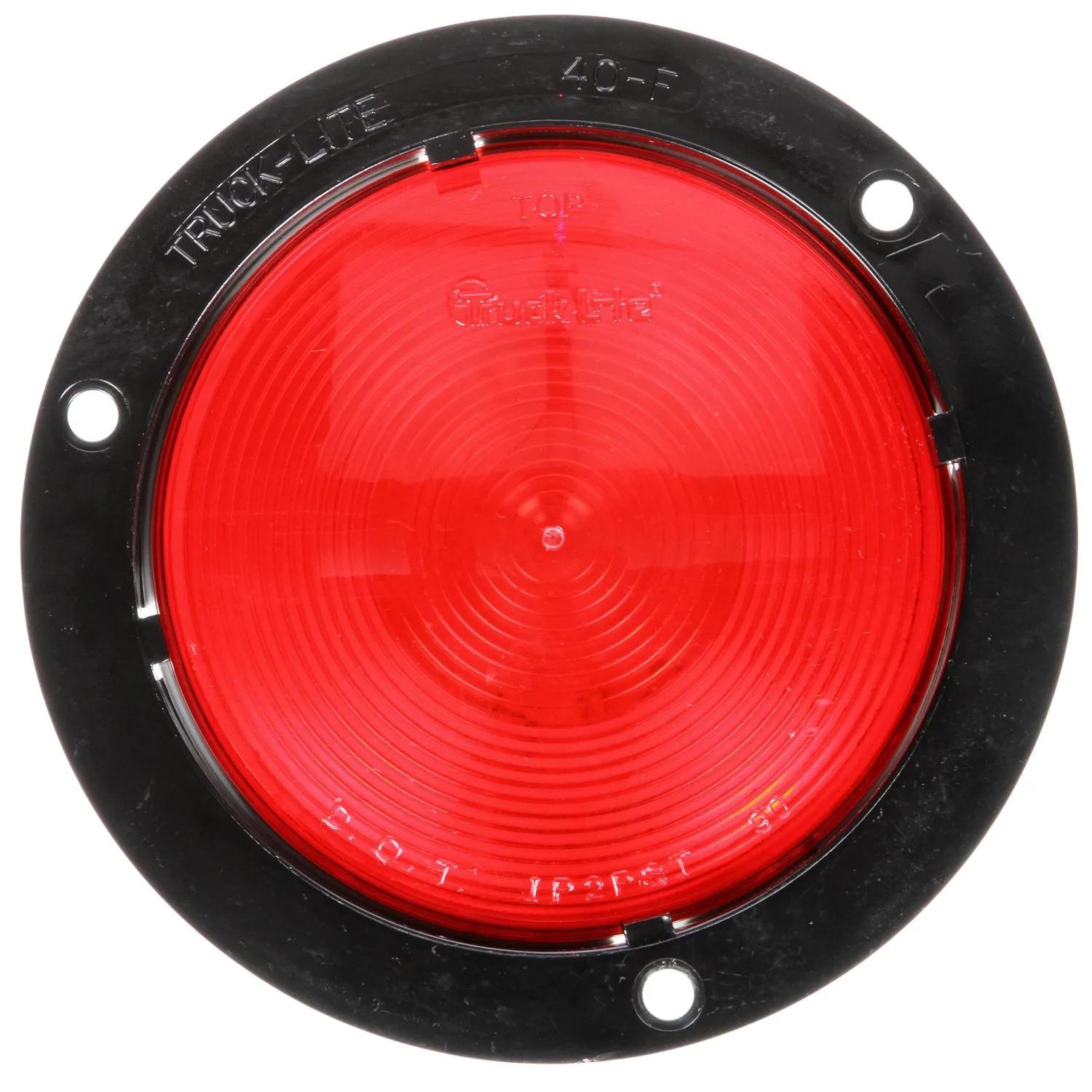

Stop/Tail/Turn Light, Red, Round
#TRL40233R
Product Overview
40 Series, Incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, Black Flange Mount, PL-3, Stripped End/Ring Terminal, 12V
Features & Benefits
- Flush mount grommets are designed for mounting in a 4-1/2"
- hole
- Heavy duty bulb last longer
- Uniquely designed shock-mount extends lamp life
Specifications
| Color | Red |
| Common Size | 4 in (10.16 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 2-5/32 in (5.49 cm) |
| Diamond Shell (Y/N) | No |
| Height | 5-1/2 in (13.97 cm) |
| Housing Color | Black |
| Kit (Y/N) | No |
| Length | 4-5/16 in (10.95 cm) |
| Lens Material | Polycarbonate |
| Material | ABS |
| Mount Type | Flange Mount |
| Number Of Wires | 3 |
| Reflectorized (Y/N) | No |
| Series | 40 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 5-1/2 in (13.97 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 10015138 |
| 40233R |
| HT50602584 |
| PT4000RF |
| 16512709 |
| 8413-40233R |
| LIT40233R |
| SEF4000R-1 |
| TL 40233R |
| TL40233R |
| TLD40233R |
| M424R |
