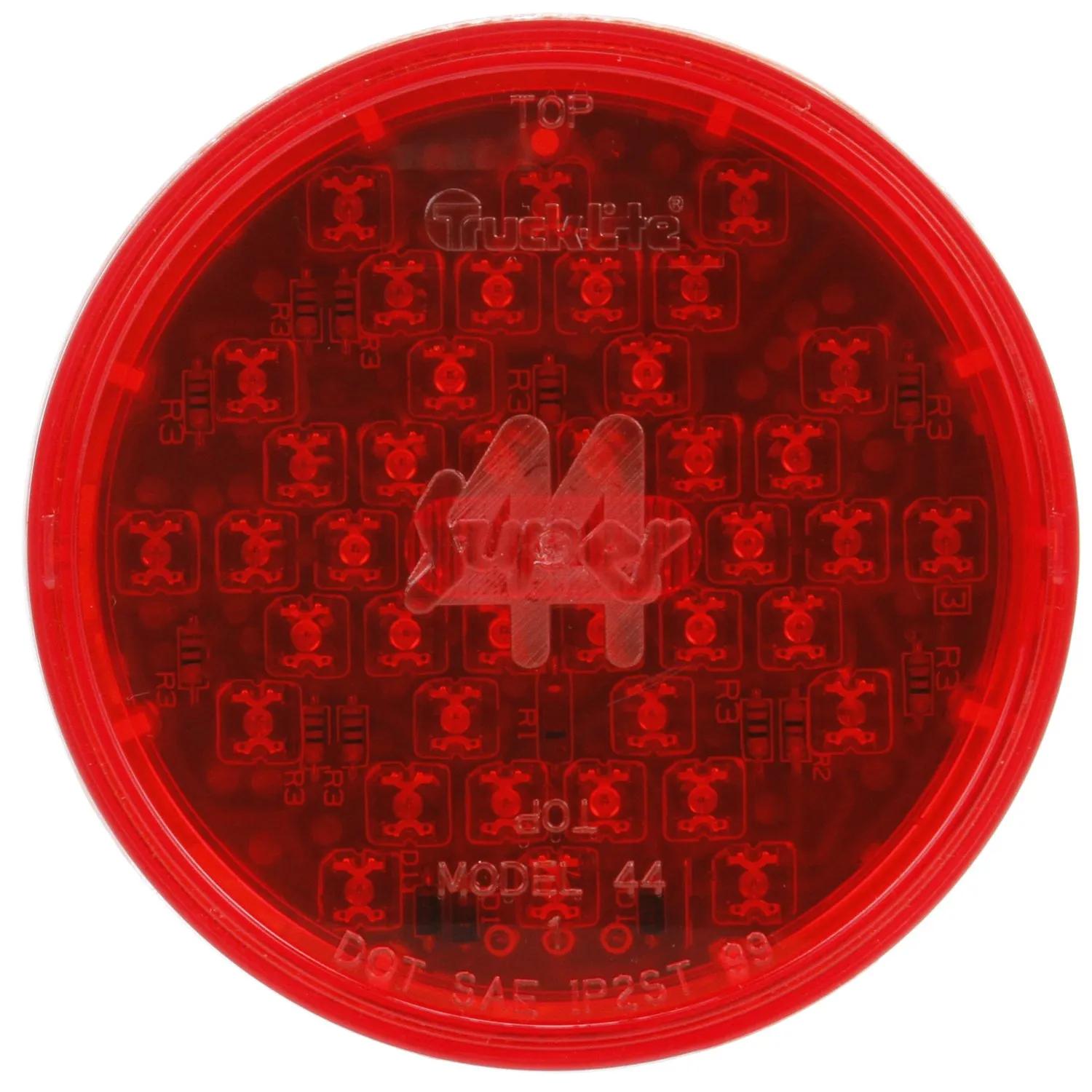

Stop/Tail/Turn Light, Red, Round
#TRL44002R
Product Overview
Super 44, LED, Red, Round, 42 Diode, Stop/Turn/Tail, Black Grommet Mount, Fit 'N Forget S.S., Straight PL-3 Female, 12V, Kit
Features & Benefits
- Faster illumination offers significant safety benefit for following drivers to react quicker, resulting in an average 3 feet for every 10 mph
- Flange mounts are permanently affixed to lamp
Specifications
| Color | Red |
| Common Size | 4 in (10.16 cm) |
| Contents | Super 44 LED S/T/T Grommet Kit, 42 Diode |
| Current Major | 0.6 amp |
| Current Minor | 0.08 amp |
| Depth | 1-47/64 in (4.39 cm) |
| Diamond Shell (Y/N) | No |
| Height | 4-11/32 in (11.02 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 1-3/64 in (2.67 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side One | Fit 'N Forget S.S. |
| Plug Side Two | PL-3, Female |
| Reflectorized (Y/N) | No |
| Series | 44 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-041 |
| Volt | 12V |
| Width | 4-11/32 in (11.02 cm) |
| Wire Gauge | 16 ga |
| Wire Length | 6 in (15.24 cm) |
Interchanges & Equivalent parts:
| 44002R |
| 44002R1 |
| TRU44002R |
| 53212 |
| M42322R |
| PTSV417KR |
| V417KR |
| 44002R-TL |
| 8413-44002R |
| TL 44002R |
| TL 44002R |
| TL-44002R |
| TL44002R |
| TL44030R |
| TLD44002R |
| TLT 44002R |
