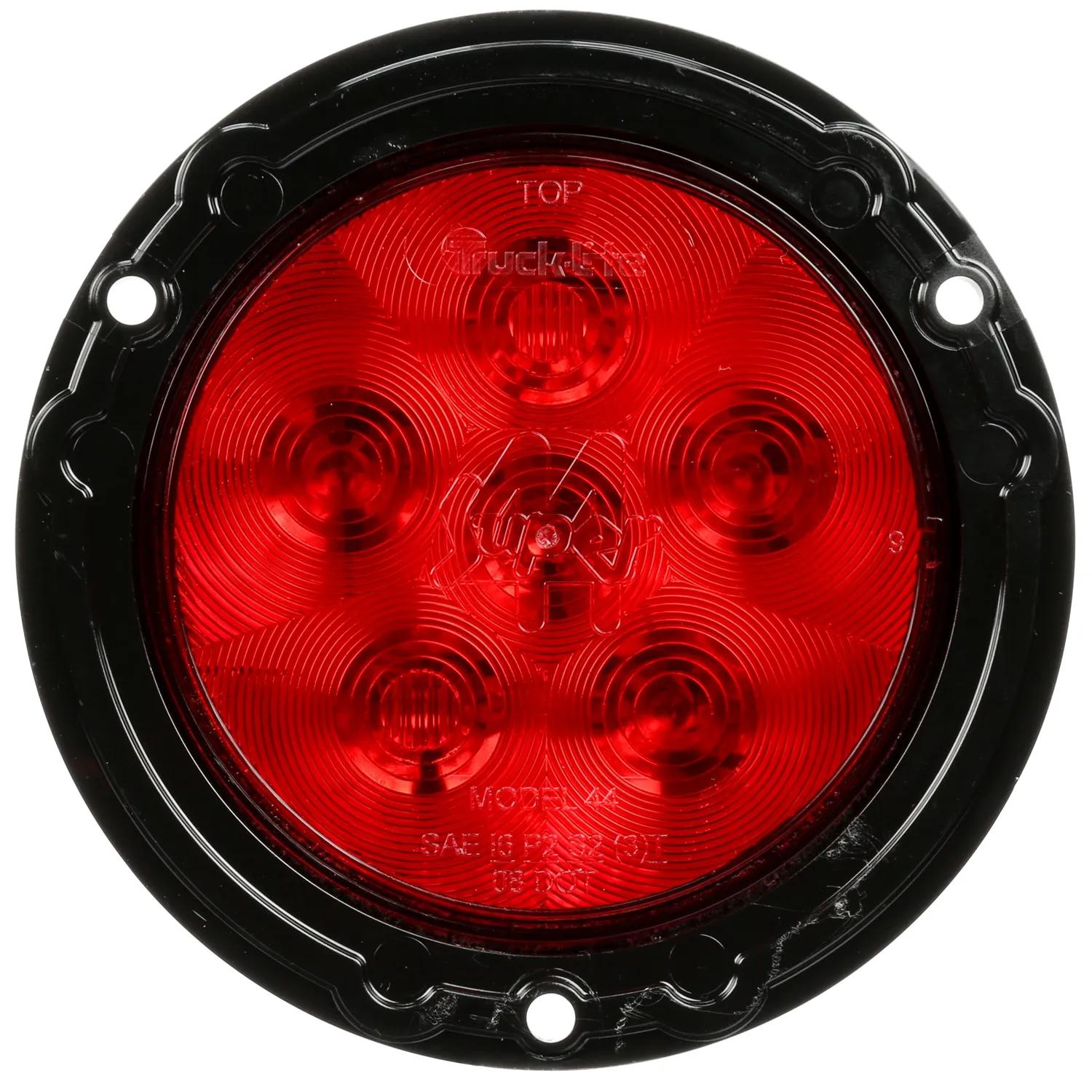

Stop/Tail/Turn Light, Red, Round
#TRL44036R
Product Overview
Super 44, LED, Red, Round, 6 Diode, Stop/Turn/Tail, Black Flange Mount, Fit 'N Forget S.S., Straight PL-3 Female, 12V, Kit
Features & Benefits
- Constructed with a polycarbonate housing and lens, providing 3x's the impact protection than others made with an acrylic lens
- Designed with added epoxy encapusating the internal components to further protect against impact and vibration
- Completely sealed lens and housing contruction leading to less lighting failures caused by corrosion due to water damage
- Recognizable Truck-lite 6-Diode pentastar design for a modern look. Verisions with Imbedded advanced heated technology is self-regulating and heats consistently as temperature drops.
Specifications
| Color | Red |
| Common Size | 4 in (10.16 cm) |
| Current Major | 0.24 amp |
| Current Minor | 0.03 amp |
| Depth | 1-47/64 in (4.39 cm) |
| Diamond Shell (Y/N) | No |
| Height | 5-1/2 in (13.97 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 5-1/2 in (13.97 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number Of Wires | 3 |
| Plug Side One | Fit 'N Forget S.S. |
| Plug Side Two | PL-3, Female |
| Reflectorized (Y/N) | No |
| Series | 44 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-041 |
| Volt | 12V |
| Width | 5-1/2 in (13.97 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 532923 |
| 44036R3 |
| 85101869 |
| HT50601902 |
| TL44036R |
| TLD44036R3 |
| TRU44036R |
| 41161R |
| 44036R-TL |
| 4458 |
| 46071RT802 |
| 53292GR0 |
| 818KR-3 |
| 8413-44036R |
| LIT44036R |
| TL 44036R |
| TL 44036R |
| TL-44036R |
| TLD44036R |
| V418KR2 |
| 53222 |
| GRT53292 |
| LL010702 |
| M40120R |
| TKL44036R |
| V418KR |
| V418KR3 |
| 53192 |
| 53292 |
| 53292-3 |
