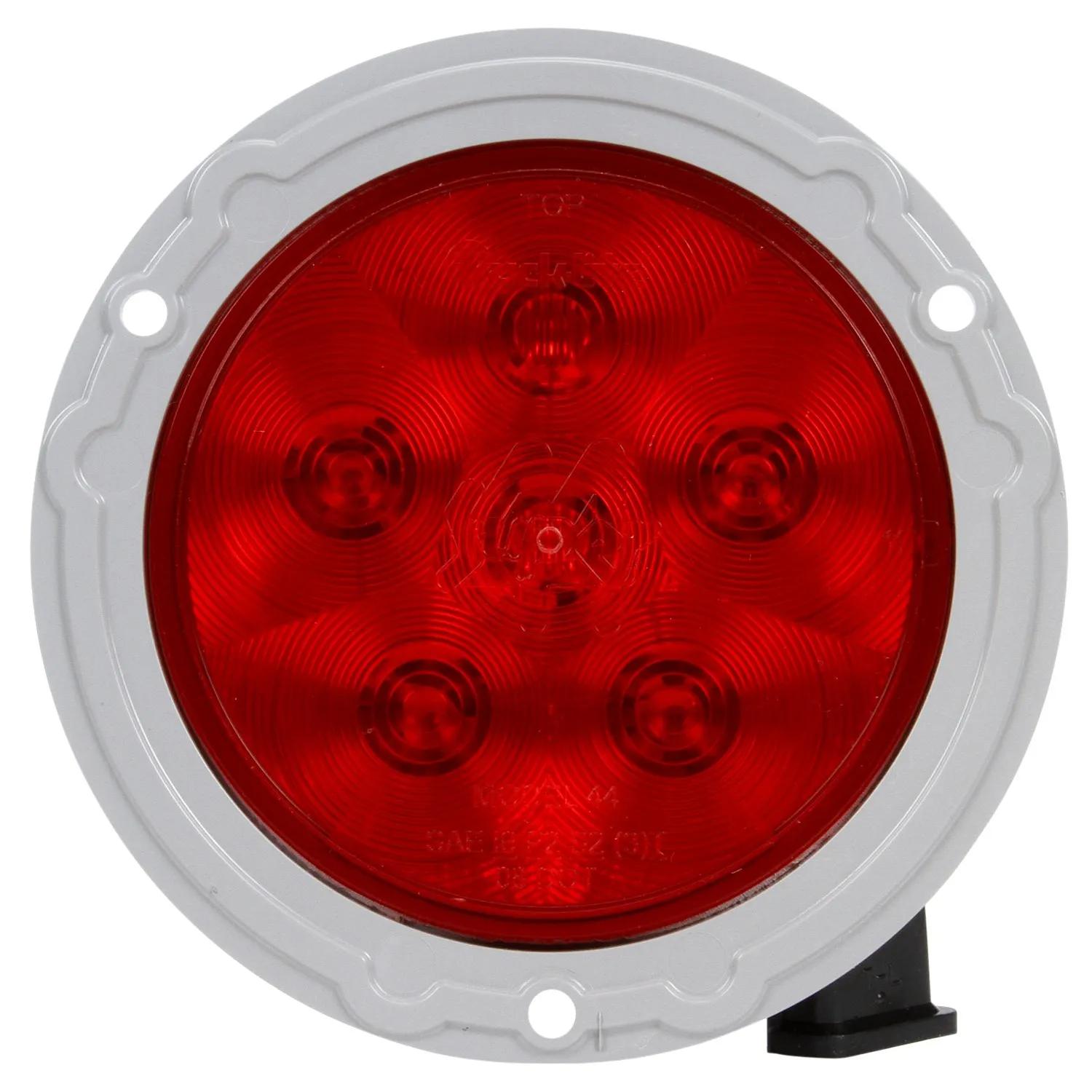

Stop/Tail/Turn Light, Red, Round
#TRL44954R
Product Overview
Super 44, LED, Red, Round, 6 Diode, Stop/Turn/Tail, Gray Flange Mount, Diamond Shell, Hardwired, Straight PL-3 Female, 12V
Specifications
| Color | Red |
| Common Size | 4 in (10.16 cm) |
| Current Major | 0.24 amp |
| Current Minor | 0.03 amp |
| Depth | 1-47/64 in (4.39 cm) |
| Diamond Shell (Y/N) | Yes |
| Height | 5-1/2 in (13.97 cm) |
| Housing Color | Gray |
| Kit (Y/N) | No |
| Length | 5-1/2 in (13.97 cm) |
| Lens Material | Acrylic |
| Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-3, Female |
| Reflectorized (Y/N) | No |
| Series | 44 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-041 |
| Volt | 12V |
| Width | 5-1/2 in (13.97 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 44954R |
| TL44954R |
| TLD44954R |
| 8413-44954R |
| LIT44954R |
| TL 44954R |
| TL 44954R |
