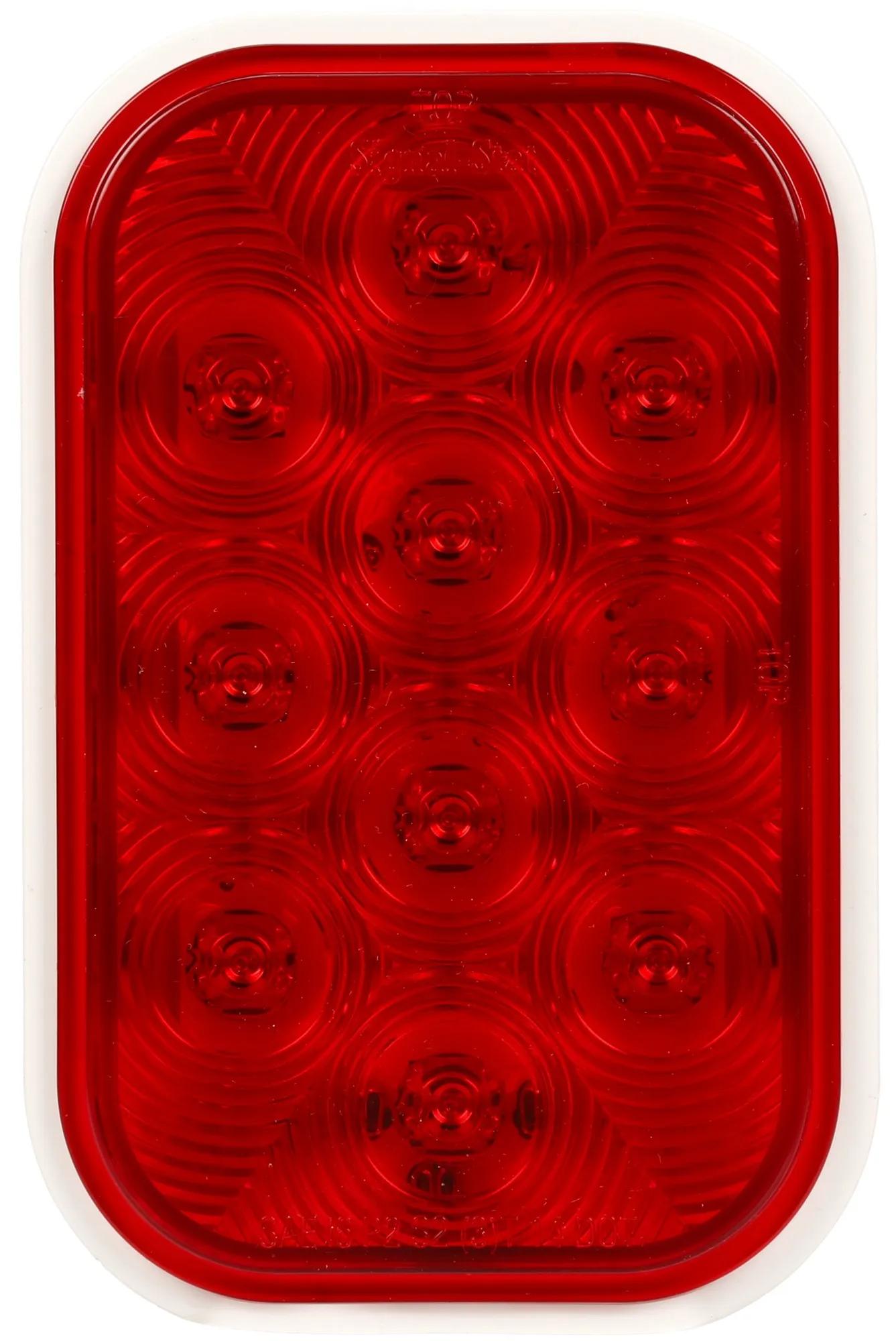

Stop/Tail/Turn Light, Red, Round
#TRL4558
Product Overview
Signal-Stat, LED, Red, Rectangular, 10 Diode, Stop/Turn/Tail, PL-3, 12V
Features & Benefits
- Uses standard right angle PL-3 connection
- 10 diode pattern Unique LED array displays full pattern light output Epoxy-encapsulated electronics
Specifications
| Color | Red |
| Common Size | 3 in (7.62 cm) |
| Contents | Stop/Tail/Turn Light |
| Current Major | 0.28 amp |
| Current Minor | 0.03 amp |
| Depth | 1-35/64 in (3.94 cm) |
| Diamond Shell (Y/N) | No |
| Height | 3-7/16 in (8.74 cm) |
| Kit (Y/N) | No |
| Length | 4 in (10.16 cm) |
| Lens Material | Acrylic |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Reflectorized (Y/N) | No |
| Series | Signal-Stat |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 5-19/64 in (13.46 cm) |
Interchanges & Equivalent parts:
| 4558 |
| 8413-4558 |
