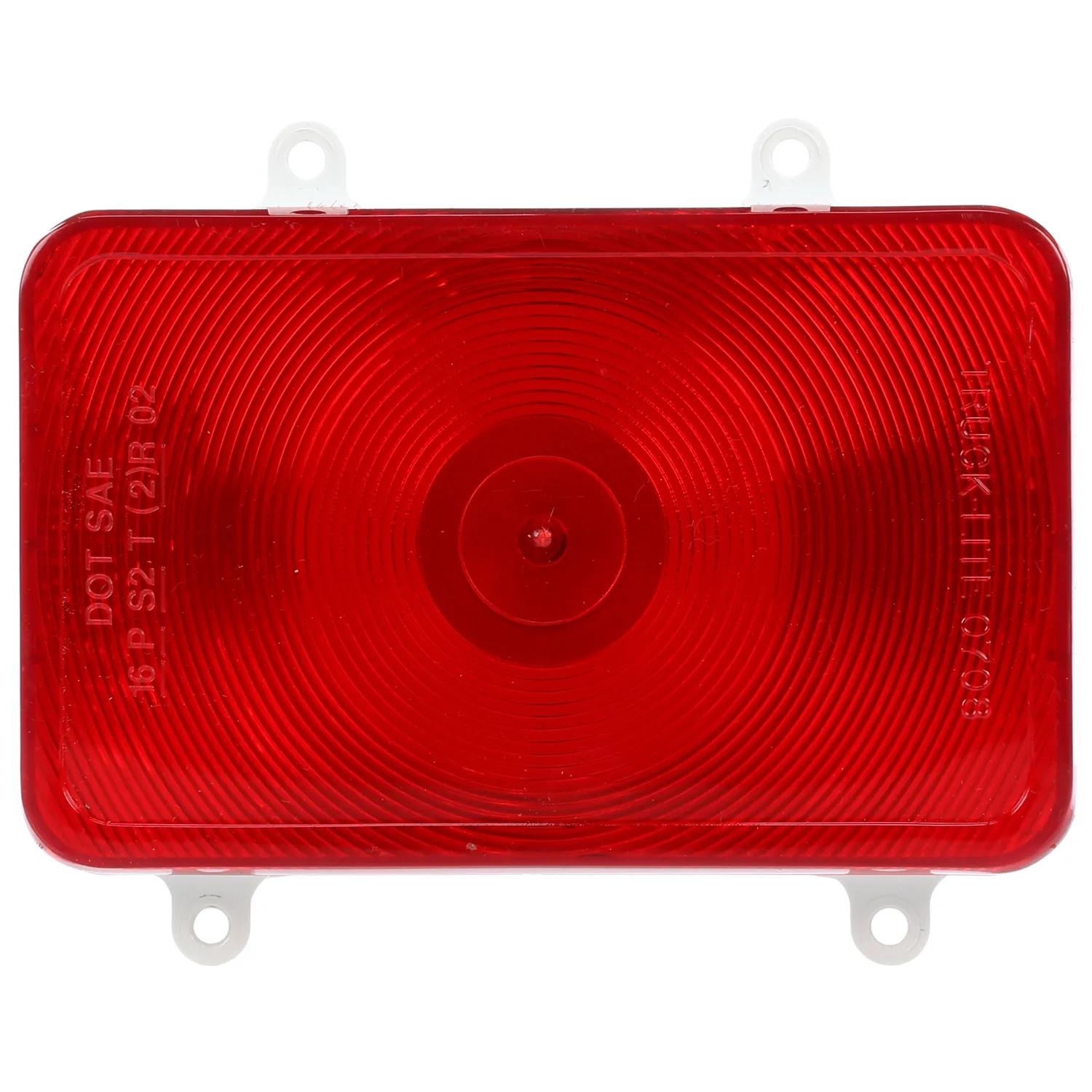

Stop/Tail/Turn Light, Red, Square
#TRL07081
Product Overview
Bus, Incandescent, Red, Rectangular, 1 Bulb, Stop/Turn/Tail, 4 Screw, Blade Terminal, Stripped end, 12V
Features & Benefits
- Recess mounts using two screws at 30" centers and two screws at 42" centers
- Watertight lamp mates withPackard connector
Specifications
| Color | Red |
| Common Size | 4 in (10.16 cm) |
| Contents | Stop/Tail/Turn Light |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 2-1/32 in (5.16 cm) |
| Diamond Shell (Y/N) | No |
| Height | 5-7/32 in (13.26 cm) |
| Kit (Y/N) | No |
| Length | 6-29/64 in (16.38 cm) |
| Lens Material | Polycarbonate |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Plug Side One | Packard Connector |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-000 |
| Volt | 12V |
| Width | 6-29/64 in (16.38 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 07081-3 |
| 7881 |
| TRU07081 |
| 07881 |
| 8413-07081 |
| LIT07081 |
| TL 07081 |
| TL 07081 |
| TL07081 |
| TLD07081 |
| 07081 |
