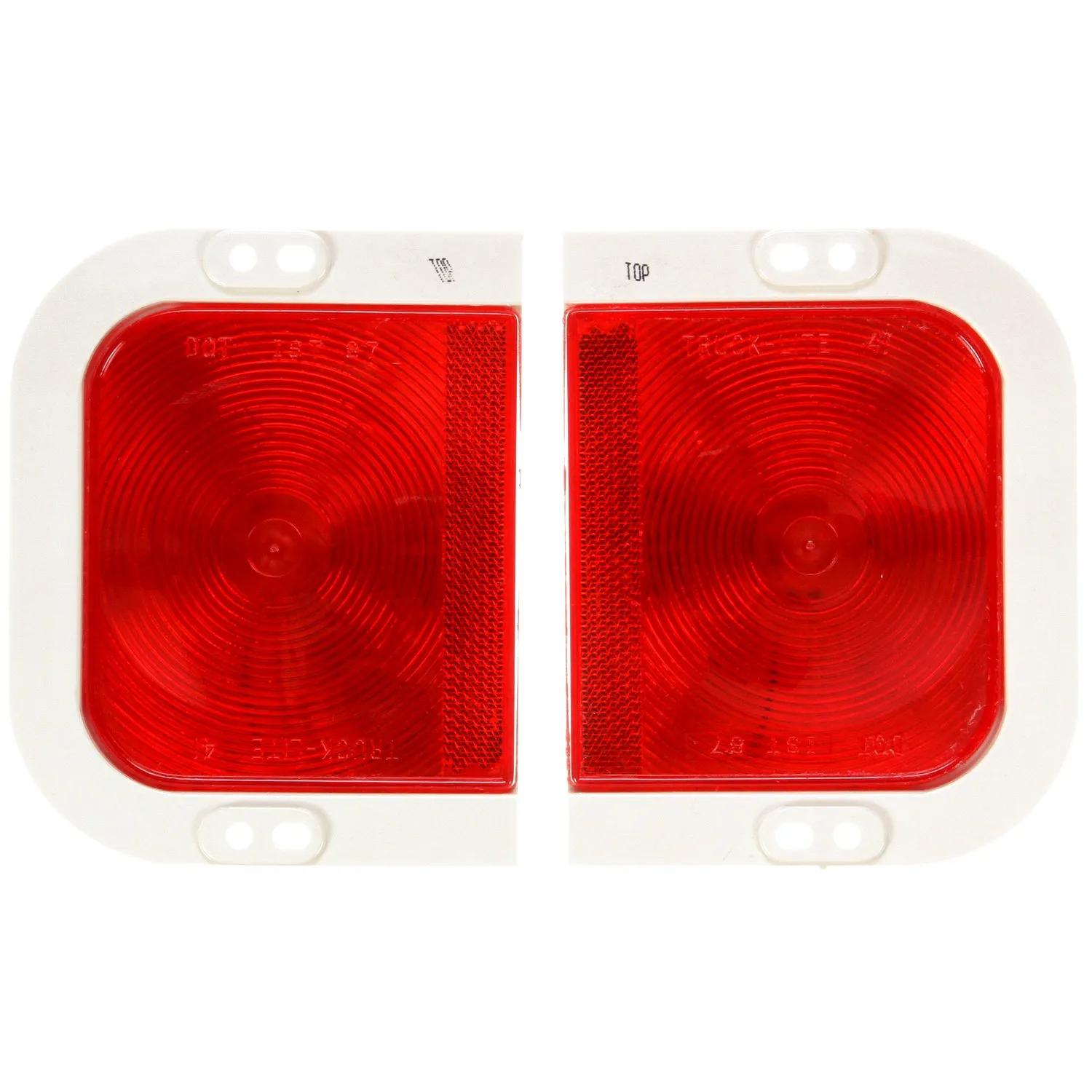

Stop/Tail/Turn Light, Red
#TRL41008R
Product Overview
41 Series, Universal Kit, Incandescent, Red, Rectangular, 1 Bulb, Stop/Turn/Tail, White Flange Mount, PL-3, Ring Terminal/Two-Position Plug, 12V, Kit
Features & Benefits
- Mounts in 783"
- x 443"
- hole
- Requires separate reflector to meet legal requirements
Specifications
| Color | Red |
| Common Size | 3 in (7.62 cm) x 4 in (10.16 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 1-51/64 in (4.57 cm) |
| Diamond Shell (Y/N) | No |
| Height | 4-1/8 in (10.49 cm) |
| Kit (Y/N) | Yes |
| Length | 8-51/64 in (22.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount/Trim Color | White |
| Mount/Trim Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number Of Wires | 3 |
| # of Diodes | 1 |
| Plug Side One | PL-3, Female |
| Plug Side Two | 2 Position Plug |
| Reflectorized (Y/N) | No |
| Series | 41 Series |
| Shape | Rectangular |
| Standard | FMVSS 108 |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 4.438 in. |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 41008R |
| 10550871 |
| 1055087110570570 |
| 841341008R |
| HT50602655 |
| TL41008R |
| TLD41008R |
| MTL02031100R |
| 8413-41008R |
| LIT41008R |
| TL 41008R |
| TL 41008R |
