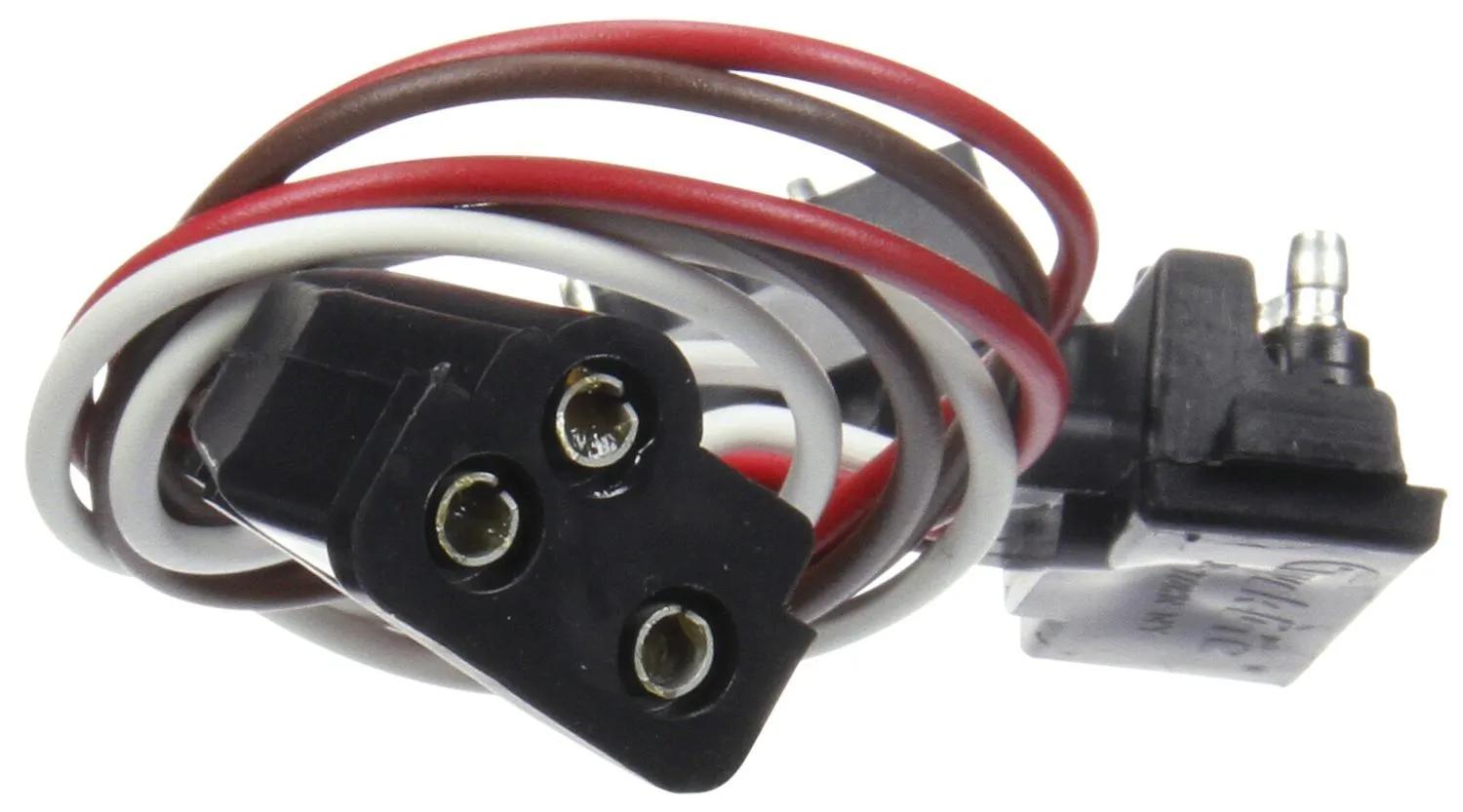

Stop/Turn/Tail Plug, Female Straight PL-3 and Right Angle PL-3 Connectors, 3 Wires, 16 Gauge GPT Wire, 10 in
#TRL94932
Product Overview
Stop/Turn/Tail plug featuring 16 gauge GPT wire with female straight PL-3 and right angle PL-3 connectors. Designed for use with Truck-Lite jumper harness part numbers 50321, 50322, 50331, and 50350. Length: 10 in.
Features & Benefits
- 16 gauge GPT wire
- 94853 - 'Y' adapter plug used to accommodate additional side marker requirements
- Designed to adapt with Truck-Lite jumper harness part numbers 50321, 50322, 50331 and 50350
- 94760 - 'Y' adapter plug used to accommodate two additional side marker requirements, designed to adapt with the 88 series harness
- 94932 - converts one stop/turn/tail plug into two
- 94865 - converts single plug female harness into a conventional two plug male harness to mate with most incandescent stop/turn/tail lamps
- 94868 - 16 gauge GPT wire
- 94897 - converts single plug female harness into a conventional single plug male harness which mates with most incandescent stop/turn/tail lamps
- 94751 - converts one stop/turn/tail plug into one stop/turn/tail plug and one marker clearance plug
Specifications
| Trousse (O/N) | Non |
| Longueur | 10 po |
| Nombre de prises | 2 |
| Catégorie de produit | Fiche de feux d'arrêt/direction/arrière |
| Type de produit | Fiche de feux d'arrêt/arrière/direction |
| Type | S/T/T à angle droit |
| CUP | 735111034476 |
| Code VMRS | 025-001-086 |
| Poids | 0,15 lb (0,07 kg) |
| Couleurs des fils | Brun, Rouge, Blanc |
| Calibre de(s) fil(s) | 16 ga |
| Type de connecteur | PL-3 droit femelle, PL-3 à angle droit/PL-3 à angle droit |
| Number of Circuits | 3 |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 1004824 |
| 41306504 |
| 101323 |
| 14400101 |
| 1150716036 |
| 4607866H1 |
| 878070967 |
| 717300617701116000 |
| 76947799 |
| 2291C4393800061 |
| 841394932 |
| 701116000 |
| 703050121 |
| 93800061 |
| 705201438 |
| 50855022 |
| 90024574 |
| 94932 |
| 807653 |
| 90293494 |
| T94932 |
| P06889 |
| HT50603423 |
| TL94932 |
| TLD94932 |
| TRU94932 |
| LNB1580111 |
| 293495 |
| 21270 |
| 8413-94932 |
| LIT94932 |
| TL 94932 |
| TL 94932 |
| TL-94932 |
| TLT 94932 |
| 421-491Y |
| 66810GR0 |
| GRT66810 |
| TKL94932 |
| 66810 |
| 31238 |
| 6889 |
