Strobe Light, Amber, V: 9 & 32
#JET126-67024A-8
Features & Benefits

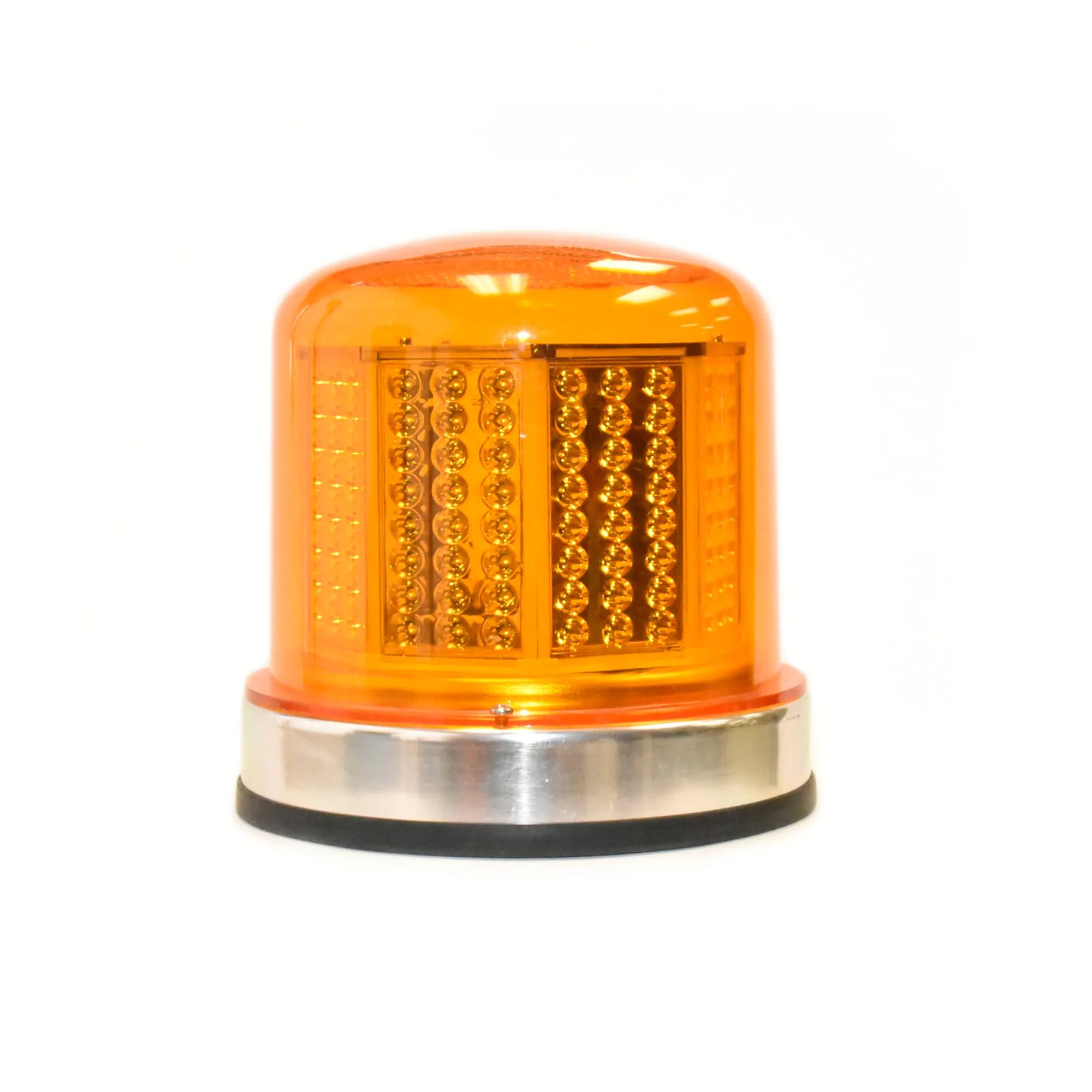

- Amber 8” Heavy Duty L.E.D. Strobe Warning Beacon
- Multiple Flash Settings with Class 2 Options, SAE W3-2 07
- Ultra High Profile for Maximum Visibility
- Synchronizable
- Connector: Direct Wire
- Lens: UV Coated Polycarbonate
- Housing: Brush Aluminum
- Mounting: Surface
Specifications
| Amps | 0.04 amp - 1.46 amp @ 12V - 0.24 amp - 0.88 amp @ 24V |
| Base Style | Closed |
| Color | Amber |
| Diameter | 5-7/8 in (14.94 cm) |
| Dimension | 200mm (h) x 200mm (dia.) |
| Flash Pattern | 3 |
| FPM | 72/180/240 FPM |
| Height | 5-3/4 in (14.61 cm) |
| Lens Material | UV Coated Polycarbonate |
| Light Output | 456 lm |
| Material | Polycarbonate |
| Mounting System | 2 Bolt Surface Mount |
| Mount Type | Permanent Mount |
| # of Diodes | 192 |
| Plug Side One | PL-2 (Stripped End) |
| Product Type | Beacon |
| Profile | Medium Profile |
| Standard | SAE W |
| Technology | LED |
| Volt | 9V & 32V |
| Watts | 21 W |
| Width | 6-13/32 in (16.28 cm) |
Interchanges & Equivalent parts:
| 12667024A4 |
| 200Z-12V-A |
| 201Z-12V-A |
| 208R-12V-A |
| 211823-02 |
| 78853 |
| JET12667024A4 |
| JET126-67024A-4 |
| 208RM-12V-A |
| 126-67089A-8 |
| 126-67024A-4 |
