Strobe Light, Yellow, V: 12 & 24
#TRL92513Y
Product Overview

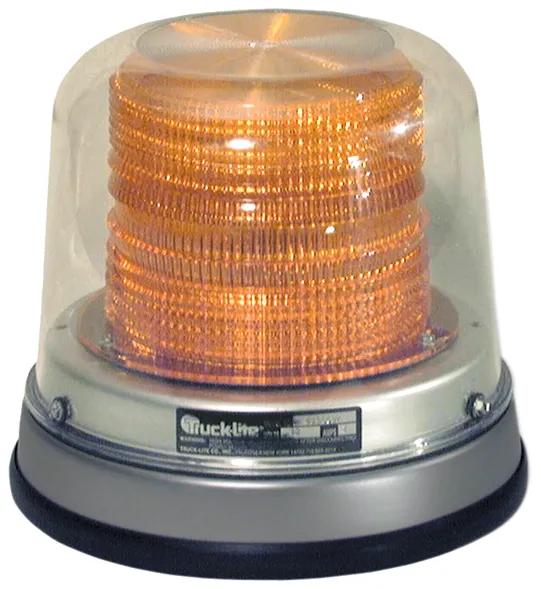

Gas Discharge, High Profile Beacon, Yellow, Permanent Mount, Class I, Hardwired, Stripped End, 12-24V
Features & Benefits
- Double flash feature enhances alertness
- High profile strobe beacon lamp for visibility
- Bolt centers at 3 1/2 in for versatile mounting
- 10-15 joules per flash for powerful illumination
- Mounts with 2 toggle bolts for secure installation
- Designed for effective signaling in various conditions
- Double Flash. 10-15 Joules Per Fash. Mounts w/ 2 Toggle Bolts At 3 1/2 Centers
Specifications
| Amps | 0.5 amp |
| Base Style | Open |
| Color | Yellow |
| Contents | Strobe |
| Depth | 8-57/64 in (22.58 cm) |
| Diameter | 8-5/8 in (21.92 cm) |
| Flash Pattern | 2 |
| FPM | 65 FPM, 80 FPM |
| Height | 7-1/2 in (19.05 cm) |
| Housing Color | Black |
| Kit (Y/N) | No |
| Lamp Type | High Profile Strobe |
| Length | 8-11/16 in (22.07 cm) |
| Lens Height | 7 in (17.78 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 7 in (17.78 cm) |
| Lumens (lm) | 912 lm |
| Material | Aluminum |
| Mount Type | Permanent Mount |
| Number Of Wires | 2 |
| Pattern | Single |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Beacon |
| Profile | High Profile |
| Shape | Round |
| Standard | SAE |
| Technology | Gas Discharge |
| VMRS Code | 034-006-004 |
| Volt | 12V & 24V |
| Weight | 4 lb (1.81 kg) |
| Width | 8-57/64 in (22.58 cm) |
| Wire Gauge | 18 ga |
| Wire Length | 6 in (15.24 cm) |
Interchanges & Equivalent parts:
| 77053 |
| 92513Y |
| 841392513Y |
| HT50601436 |
| TL92513Y |
| TLD92513Y |
| 200AQ |
| 200A-12V-A |
| 201B-12V-A |
| 23803 |
| 78013 |
| 92500Y |
| 92506Y |
| 92507Y |
| 92508Y |
| 92514Y |
| TRU92513Y |
| 200A |
| 200AD |
| 200B |
| 77453GR0 |
| 8413-92513Y |
| LIT92513Y |
| TL 92513Y |
| TL 92513Y |
| 793A |
