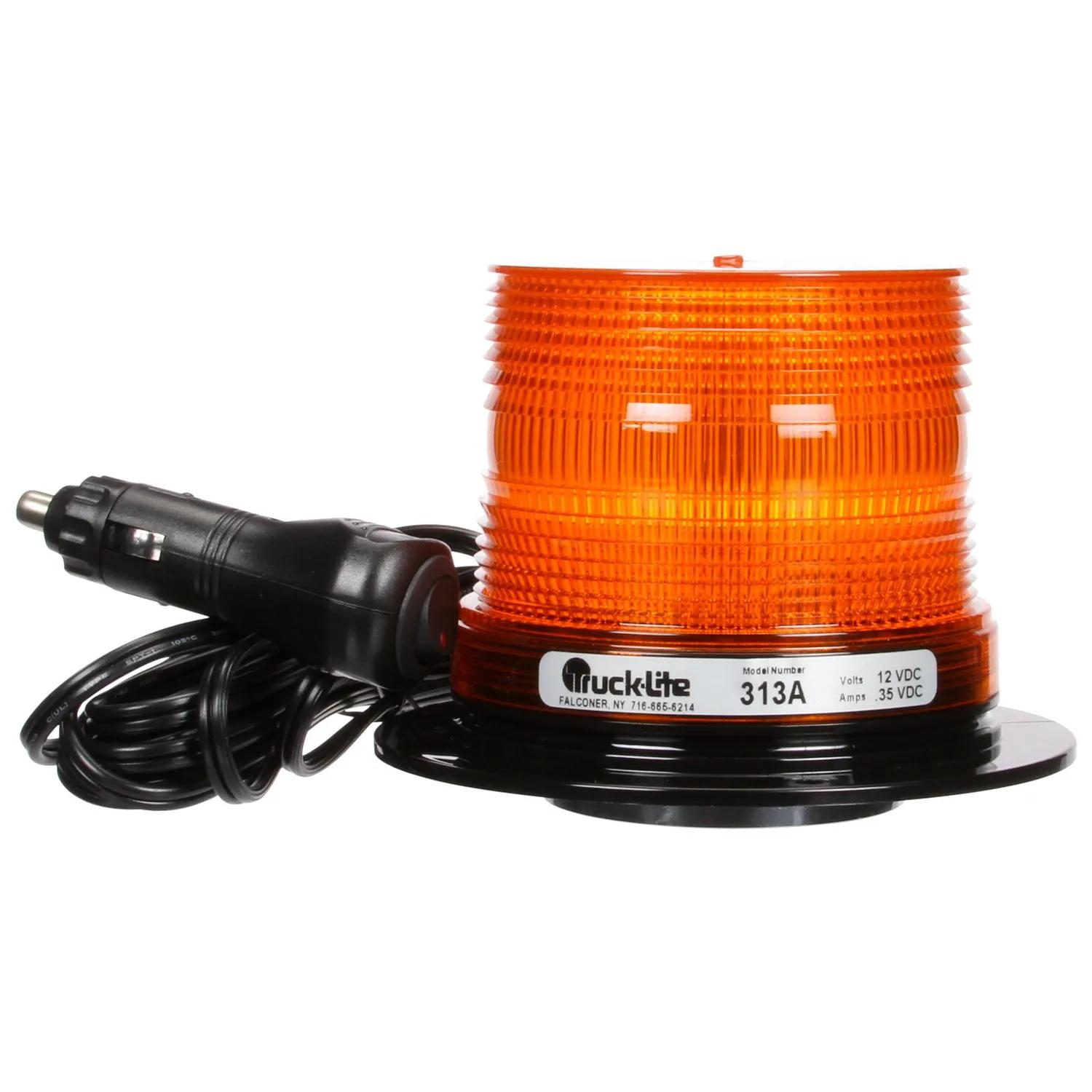

Strobe Light, Yellow, V: 12 & 80
#TRL313A
Product Overview
Signal-Stat, The Guardian, Gas Discharge, Low Profile Beacon, Yellow, Magnetic Mount, Class III, Hardwired, Cigarette Adapter, 12-48V
Features & Benefits
- Twist on dome for secure attachment
- Suitable for light duty applications
- Single flash strobe for clear visibility
- Enhances safety with bright illumination
- Compact size for versatile mounting options
- Low profile design for discreet installation
Specifications
| Amps | 0.50 amp @ 12V - 0.25 amp @ 24V |
| Color | Yellow |
| Contents | Strobe |
| Depth | 3-1/2 in (8.89 cm) |
| Dimension | 115mm (h) x 120mm (dia.) x 146mm (base dia.) |
| FPM | 90 FPM |
| Height | 5-1/16 in (12.85 cm) |
| Housing Color | Black |
| Kit (Y/N) | No |
| Lamp Type | Low Profile Strobe |
| Lens Height | 4-5/8 in (11.76 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 4-5/8 in (11.76 cm) |
| Material | Polycarbonate |
| Mounting System | Magnetic |
| Mount Type | Magnetic Mount |
| Number Of Wires | 2 |
| # of Diodes | 16 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | Cigarette Adapter |
| Product Type | Beacon |
| Profile | Low Profile |
| Series | Signal-Stat |
| Shape | Round |
| Standard | SAE |
| Technology | Gas Discharge |
| VMRS Code | 034-001-063 |
| Volt | 12V & 80V |
| Weight | 1 lb (0.45 kg) |
| Width | 5-1/16 in (12.85 cm) |
| Wire Gauge | 18 ga |
| Wire Length | 6 in (15.24 cm) |
Interchanges & Equivalent parts:
| 313A |
| 768MA |
| 77103 |
| 8413313A |
| SIG313A |
| TL313A |
| TLD313A |
| 264314 |
| TRU313A |
| 1510M |
| 313AS1G |
| 6410AMG |
| 8413-313A |
| BK 7302749 |
| LIT313A |
| PT5000MA |
| TL 313A |
| V766MA |
| 77203 |
| V764MA |
