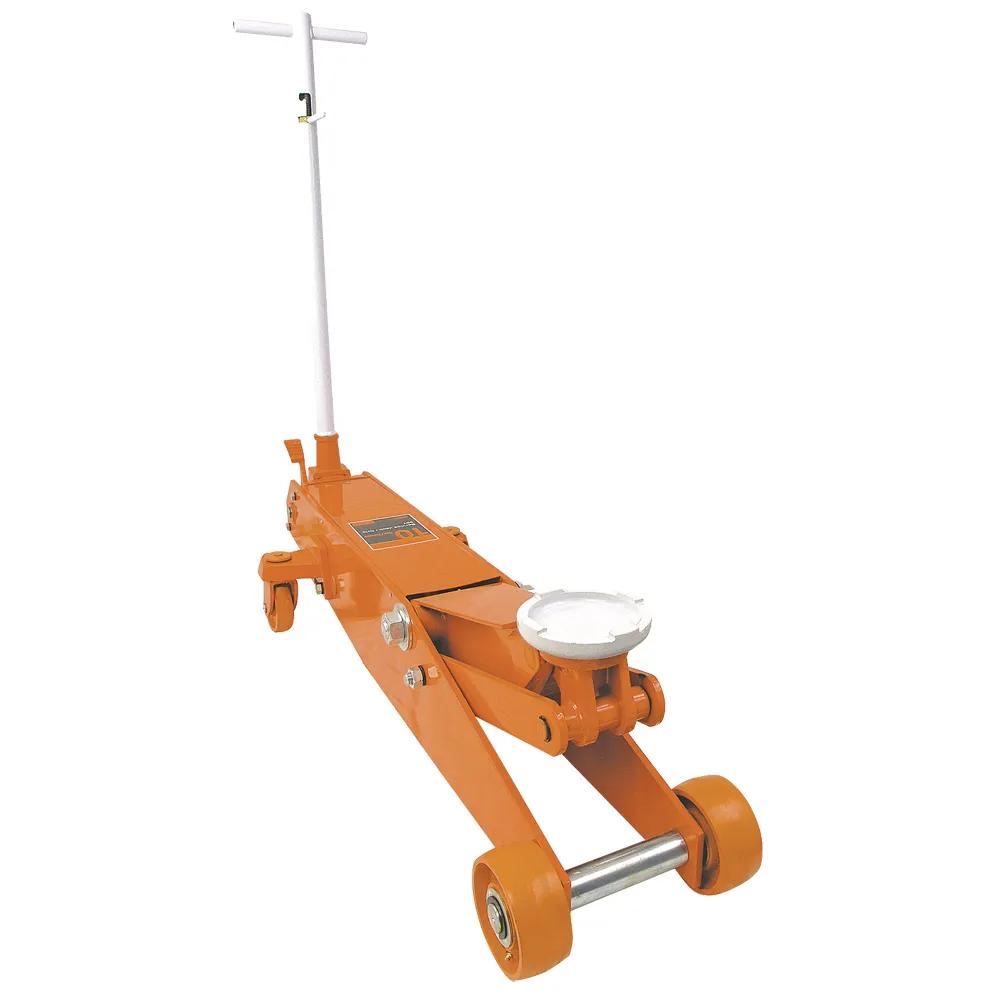

Strongarm 10 Ton Heavy Duty Manual Service Jack with Long Chassis and 23 in Lift Height
#STR030436
Product Overview
Strongarm® manual hydraulic long chassis floor jacks are constructed with a heavy gauge steel frame for maximum strength and durability. This jack provides access to difficult-to-reach load points and is equipped with a foot-operated pump for fast and efficient lifting, ideal for truck tire shops, repair shops, fleet service, maintenance shops, military bases, job sites, and all heavy duty applications.Service Jack, Long Chassis, Manual, Heavy Duty, Steel, 10 ton, Chassis Length: 61 in, Front Chassis Width: 13 in, 23 in High Height, 7 in Lowered Height, Number of Handles: 1, Rear Chassis Width: 18 in, Rear Width: 7 in, Standards: ASME PALD 2009, 61 in L
Features & Benefits
- Heavy duty manually operated service jacks for the most demanding heavy duty applications
- Ideal for truck tire shops, truck repair shops, fleet service, maintenance shops, military bases, job sites and all heavy duty jobs
- Heavy duty pumps, rams, and cylinders are precision machined and inspected to ensure long service life and superior performance
- Designed to get into very low areas
- Automatic safety valve prevents overload
- Heavy duty swivel casters provide optimum manoeuvrability
- Handle mounted locking control lever locks handle in one of three positions: vertical, 45˚, or horizontal for more convenient under vehicle positioning
- All models Feature a convenient foot pedal for raising
- Long chassis body length allows access to difficult to reach load points
- Constructed with heavy gauge steel and robust welds to provide maximum strength and durability
- Foot operated pump allows quick and easy hands-free operation
- 3-position handle lever provides maximum versatility in under vehicle positioning
Specifications
| Capacité | 10 T |
| Largeur avant (po) | 13 in (33.02 cm) |
| Length | 61 po |
| Lowered Height (in.) | 7 in (17.78 cm) |
| Material | Acier |
| Model | 957 |
| Raised Height (in.) | 23 in (58.42 cm) |
| Rear Width (in.) | 18 in (45.72 cm) |
| Type | Châssis long, manuel, robuste |
| UPC | 59629995006 |
| Chassis Length | 61 in |
| Dimension | 19,50 x 65,25 x 12 |
| Front Chassis Width | 13 in |
| High Height | 23 in |
| Lowered Height | 7 in |
| Number of Handles | 1 |
| Rear Chassis Width | 18 in |
| Raised Height | 23 in |
| Rear Width | 18 in |
| Standards | ASME PALD 2009 |
| Product Category | Cric de service |
| Weight | 373 lb (169,18 kg) |
