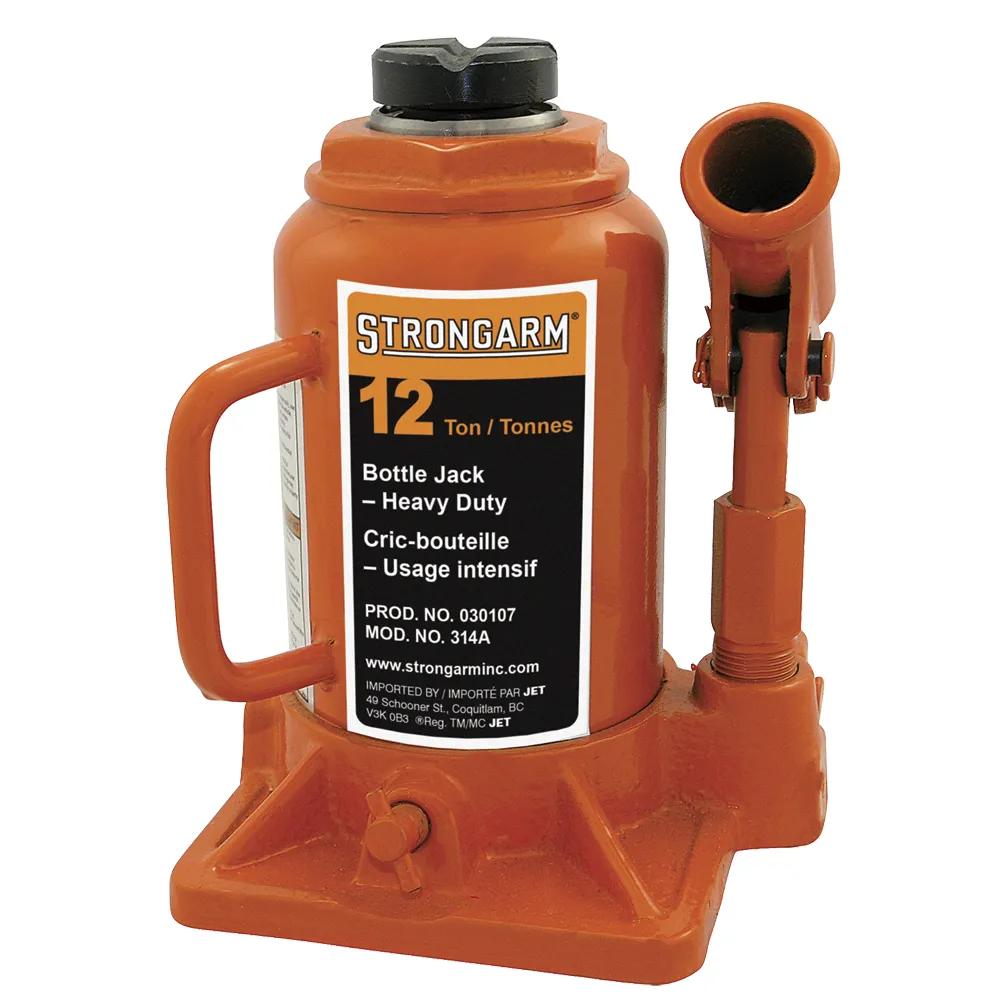

Strongarm 12 Ton Heavy Duty Low Profile Bottle Jack, Hydraulic Operation
#STR030107
Product Overview
The Strongarm® heavy-duty bottle jacks are heat treated in critical stress areas to ensure long life and performance. Ideal for automotive, truck, farming, mining, and more, these jacks provide reliable and safe lifting power.Bottle Jack, Heavy Duty, Low Profile, Hydraulic Operation, Alloy Steel, 12 ton, Extension: 2 in, 7 in Lowered Height, 13 in Raised Height, For Automotive Truck Farming Mining, 5.63 in L, 5.75 in W, 7.5 in H
Features & Benefits
- Factory pre-tested to 150% of rated capacity
- Heavy duty steel saddle for secure lifts
- Heat treated piston for maximum strength
- Drop forged alloy steel construction for reliable strength
- Centered pumps and rams with heat treated pistons
- Machine hardened steel saddles for unsurpassed strength
- Built-in bypass system prevents accidental overload and enhances operator safety
- Longer wear life due to internally machined oil passages, smooth bearing surfaces, and tighter tolerances
Specifications
| Capacity | 12 T |
| Length | 5.63 in |
| Lowered Height (in.) | 7 in (17.78 cm) |
| Material | Alloy Steel |
| Raised Height (in.) | 13 in (33.02 cm) |
| Type | Heavy Duty, Low Profile |
| UPC | 095992813875 |
| Weight (lbs) | 0.7 |
| Width | 5.75 in |
| Application | Automotive, Truck, Farming, Mining |
| Dimension | 5-5/8 in x 7-1/2 in x 5-3/4 in |
| Extension | 2 in |
| Height | 7.5 in |
| Includes | Heavy duty steel saddle, Heat treated piston, Machine hardened steel saddles, Built-in bypass system |
| Lowered Height | 7 in |
| Operation Type | Hydraulic |
| Raised Height | 13 in |
| Product Category | Bottle Jack |
| Weight | 13 lb (5.9 kg) |
Interchanges & Equivalent parts:
| STR314A |
