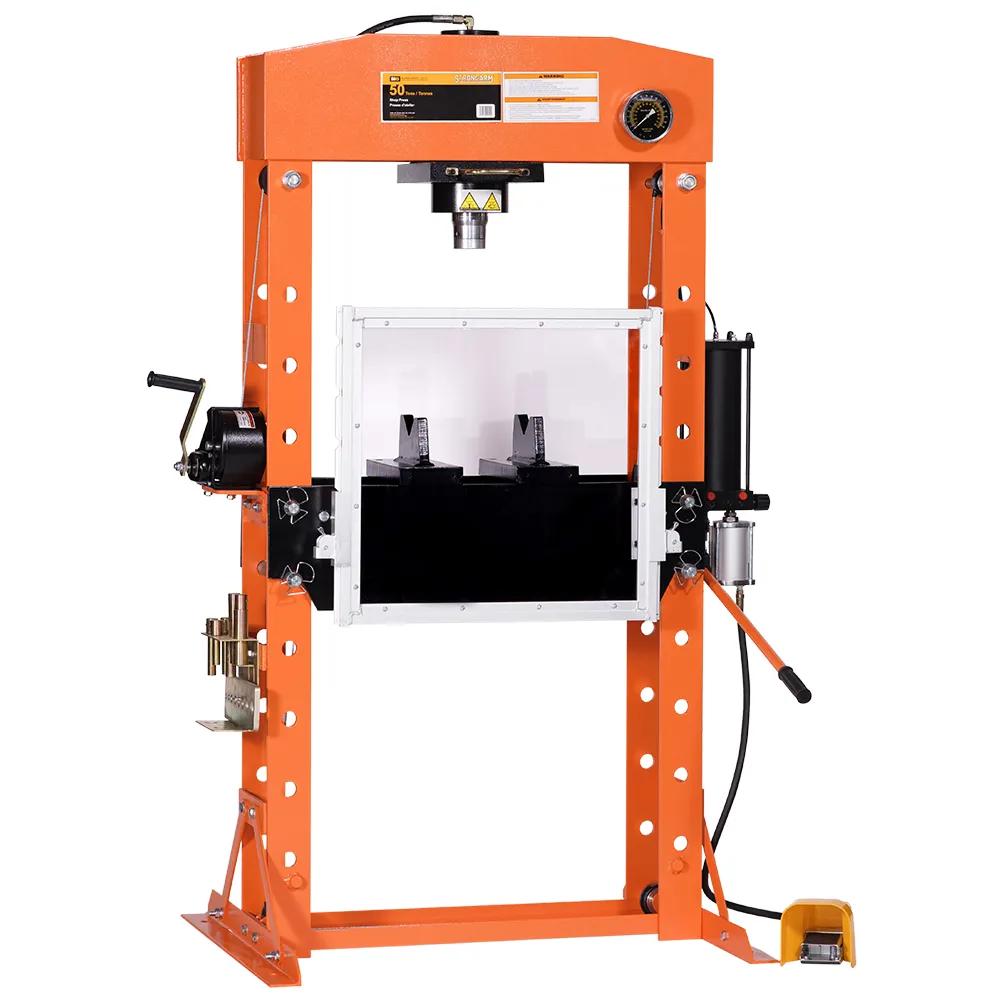

Strongarm 50 Ton Super Heavy Duty Shop Press with 10.125 in Bed Depth and 7.75 in Ram Stroke
#STR032184
Product Overview
Strongarm® super heavy duty shop presses are ideal for straightening, bending, and removing gears, bearings, and bushings. The professional-grade construction provides strength and durability unmatched by standard-duty shop presses.Shop Press, Super Heavy Duty, 10.125 in Bed Depth, 28.75 in Bed Width, 50 ton, 110 to 120 psi Air, 9053 psi Hydraulic System Pressure, Standards: ASME PASE 2014, 7.75 in Stroke, 7.25 in Throat Depth, 16.75 in Throat Width, Includes: V-Block, Press-Pin Adapters, 54 in W, 75 in H
Features & Benefits
- Welded frame for added strength
- Protective guard, combination V block and pressing adaptor set included
- Press head moves from side to side for added pressing flexibility
- Liquid filled gauge accurately shows operator pressing force being applied
- Air pressure 110 - 120 psi
- Fully welded construction for exceptional durability and strength
- Shatter-resistant polycarbonate shield provides maximum protection against flying debris
- Combination V-block and press-pin adapters included (032187 and 032188 - combination V-block only)
- Press head moves side to side for greater working range
- Liquid-filled glycerin gauge accurately shows pressing force
Specifications
| Bed Depth | 10.125 in |
| Bed Width | 28.75 in |
| Capacity | 50 ton |
| Height | 75 in |
| Includes | V-Block, Press-Pin Adapters |
| Pressure Rating | 110 to 120 psi Air, 9053 psi Hydraulic System |
| Standards | ASME PASE 2014 |
| Stroke | 7.75 in |
| Throat Depth | 7.25 in |
| Throat Width | 16.75 in |
| Type | Super Heavy Duty |
| Width | 54 in |
| Product Category | Shop Press |
Interchanges & Equivalent parts:
| SP50T-SHD |
| SP50TSHD |
| STR32184 |
