Brake Drum, 16-1/2 in x 8 in, 10 holes, (123 lb)
#GUN3782
Product Overview
This 16.5 in x 8 in brake drum is designed for truck and trailer axles with a 23,000 lb axle capacity. It features 10 bolt holes, an outboard mounting, and a durable cast construction for reliable braking performance.
Specifications
| Axle Capacity (lb) | 50707 kg (23000 lbs) |
| Back Plate Thickness | 9/16 in |
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 8 in |
| Brake Size | 16-1/2 in x 8 in |
| Brake Surface Diameter | 16-1/2 in |
| Brake Surface Width | 8-19/32 in |
| Bridge Width | 8 in |
| Drum Mounting | Outboard |
| Drum Mount Type | Outboard |
| Drum Type | BDA |

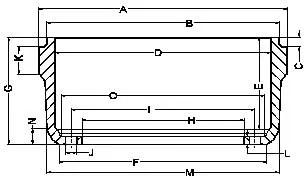

| Dust Shield Recess Depth (C) | 11/16 in |
| Dust Shield Recess Diameter (B) | 17-1/2 in |
| Height | 12 in |
| Hole Size | 1 in |
| Maximum Diameter | 16-5/8 in |
| Overall Depth | 11-1/16 in |
| Overall Diameter | 18-29/32 in |
| Pilot Diameter | 8-25/32 in (22.31 cm) |
| Sidewall Offset (N) | 2-1/2 in |
| Squealer Band Width (K) | 2-13/64 in |
| VMRS Code | 013-017-006 |
| Weight | 121 to 130 lbs |
| Weight (lbs) | 55.8 kg (123 lb) |
| Wheel Type | Disc |
| Width | 8 in |
